Features

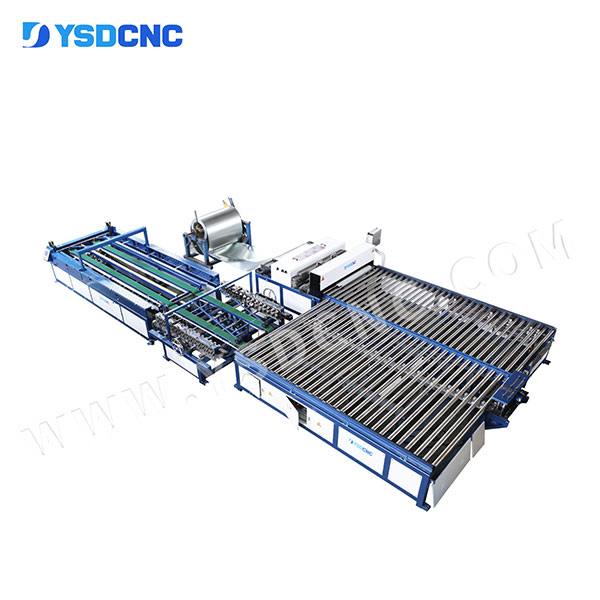

U Shape Auto Duct Production Line 5 Performance Features:
During feeding mechanism with pneumatic servo, manipulator helps to ensure stability and speed of the machine, and the accuracy of its locating system.
It only takes 20-25 seconds to make one L-shaped workpiece and the efficiency will double compared with the linear type.
Without moving back and forth the fixed locking machine is able to improve the efficiency.

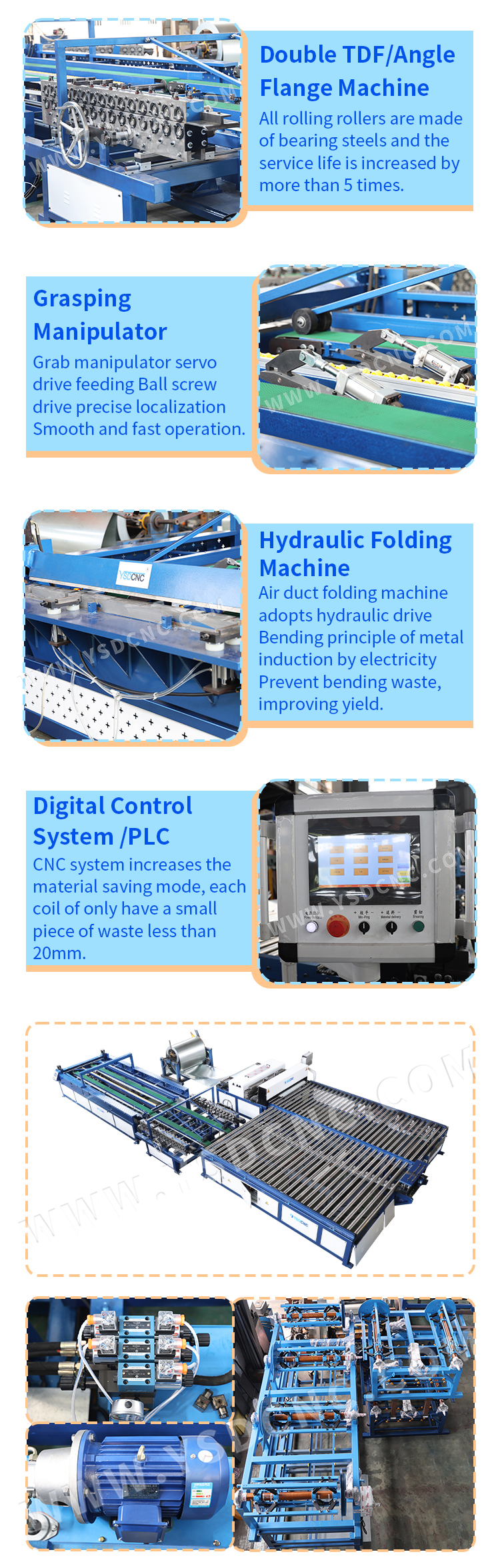

All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times. Under the material-saving mode of CNC system, waste is less than 20 mm per roll.
With production memory functions, the production orders can be tracked and checked.
Product Description

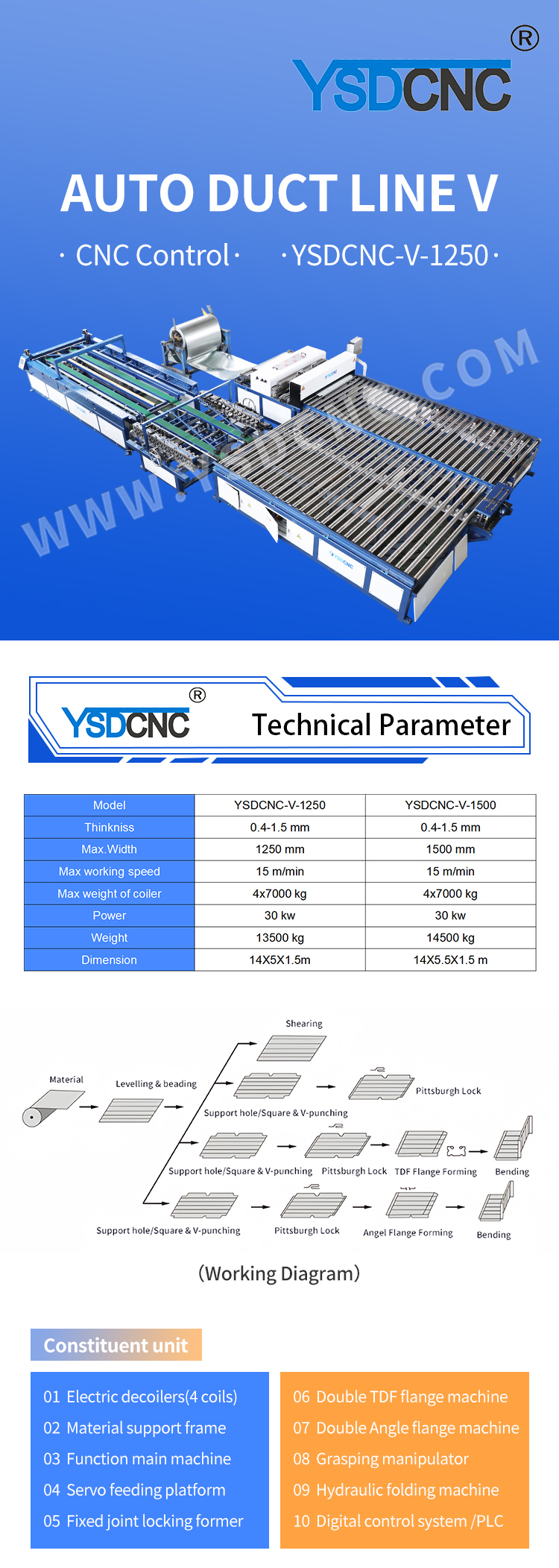

Specification
Model | YSDCNC-V-1250 | YSDCNC-V-1500 |
Thinkniss | 0.4-1.5 mm | 0.4-1.5 mm |
Max.Width | 1250 mm | 1500 mm |
Max working speed | 15 m/min | 15 m/min |
Max weight of coiler | 4x7000 kg | 4x7000 kg |
Power | 30 kw | 30 kw |
Weight | 13500 kg | 14500 kg |
Dimension | 14X5X1.5m | 14X5.5X1.5 m |
