Features

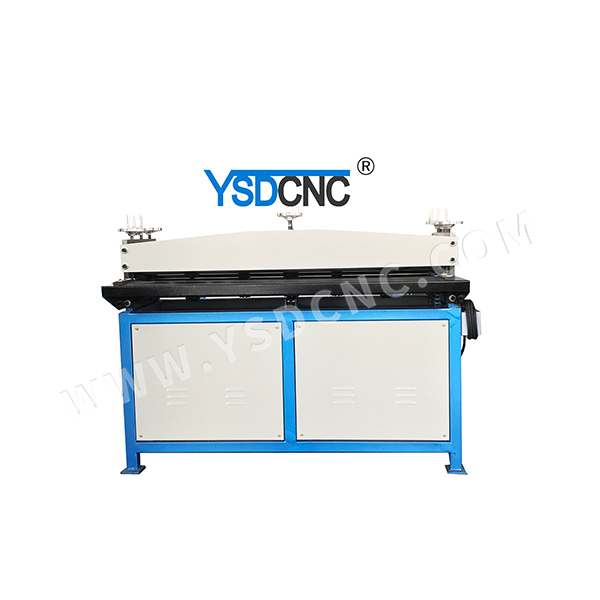

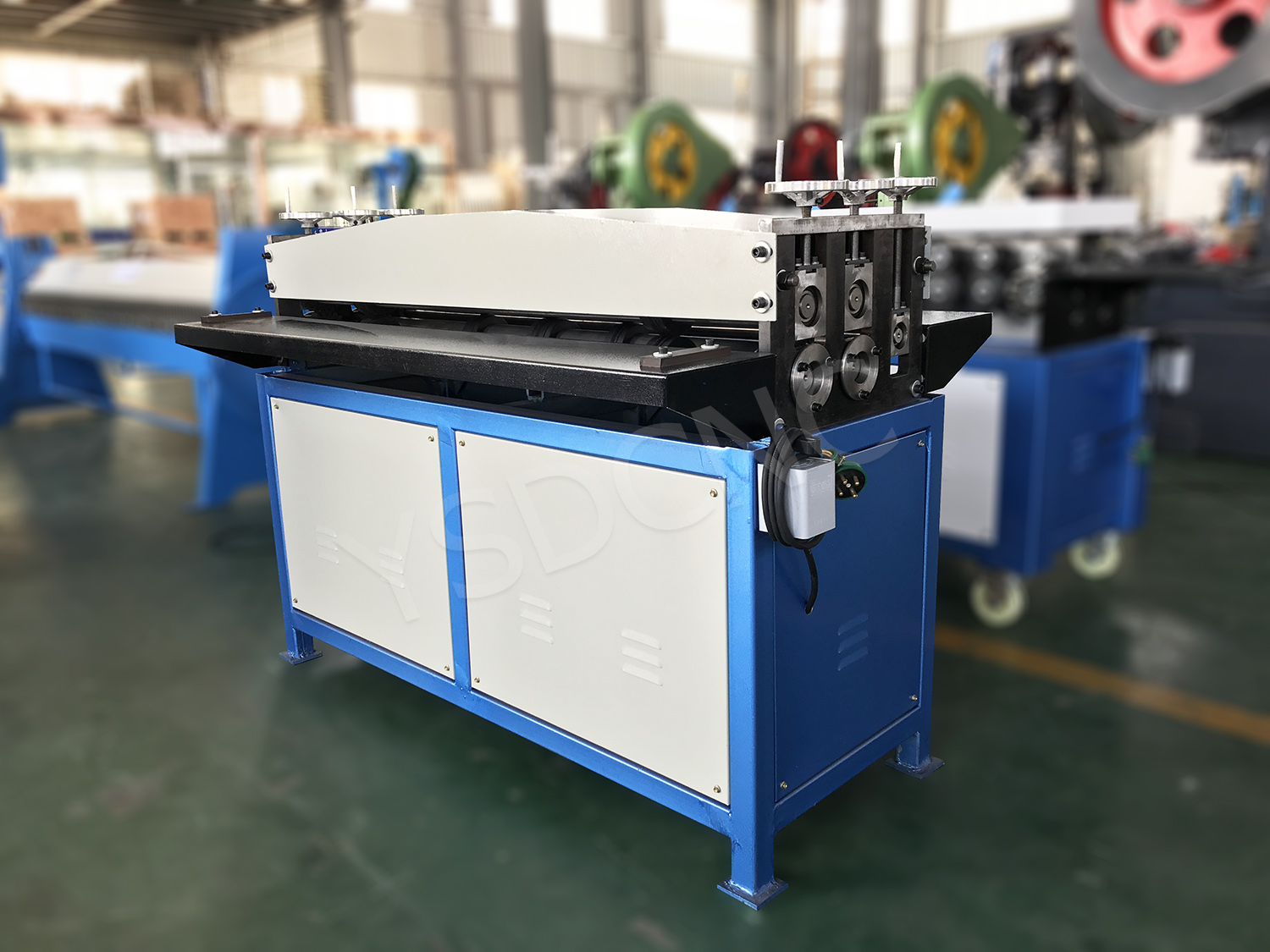

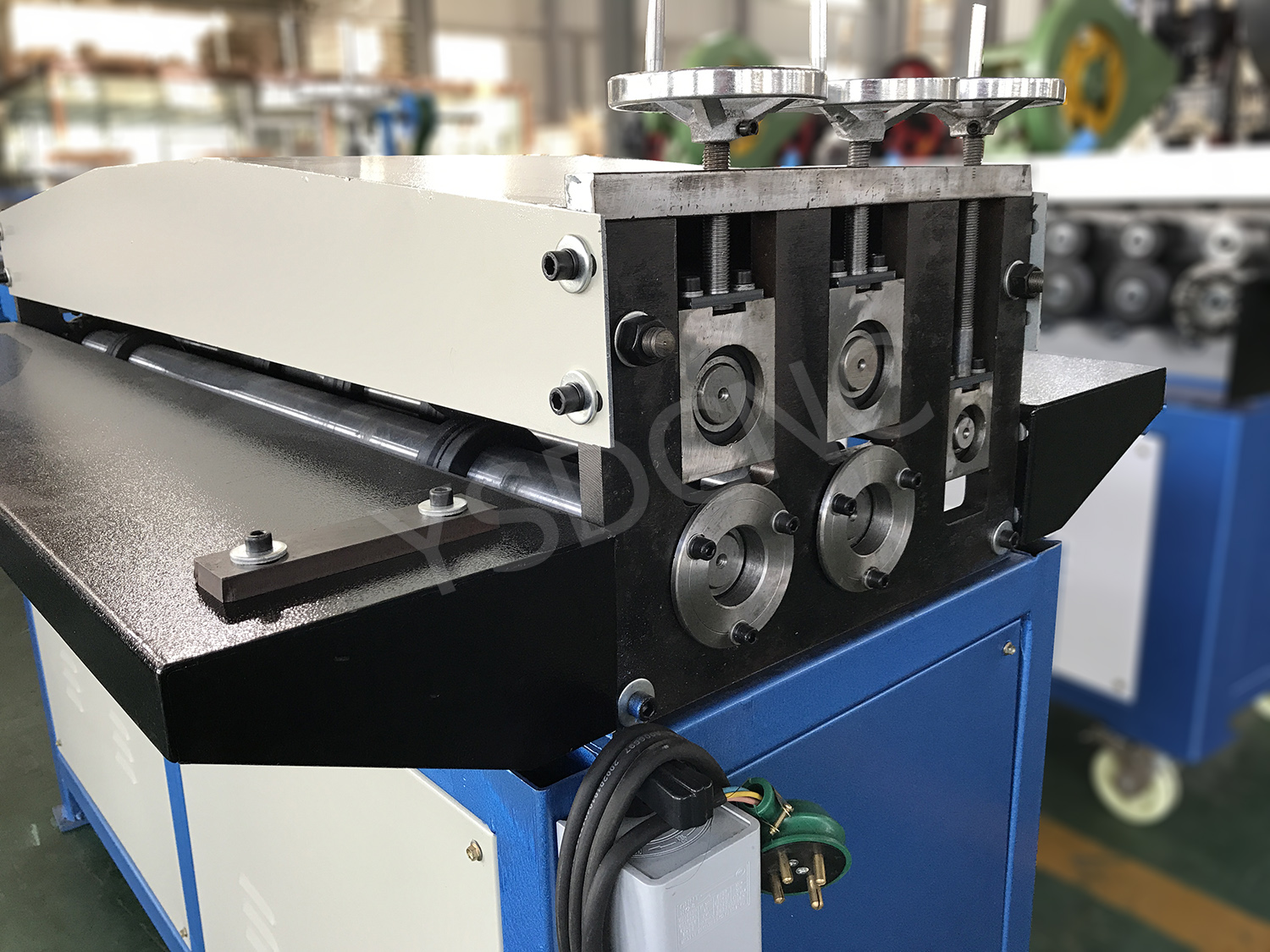

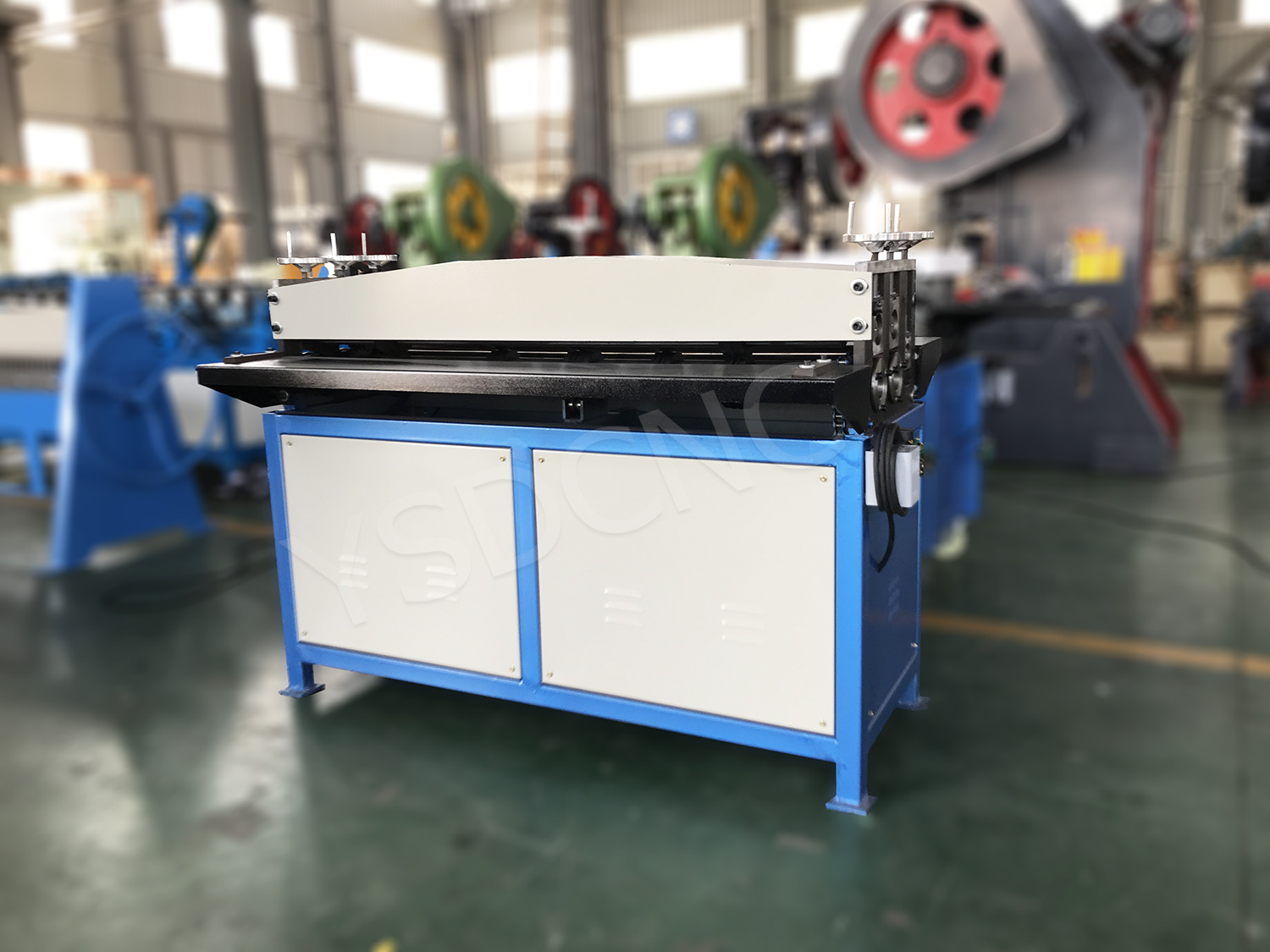

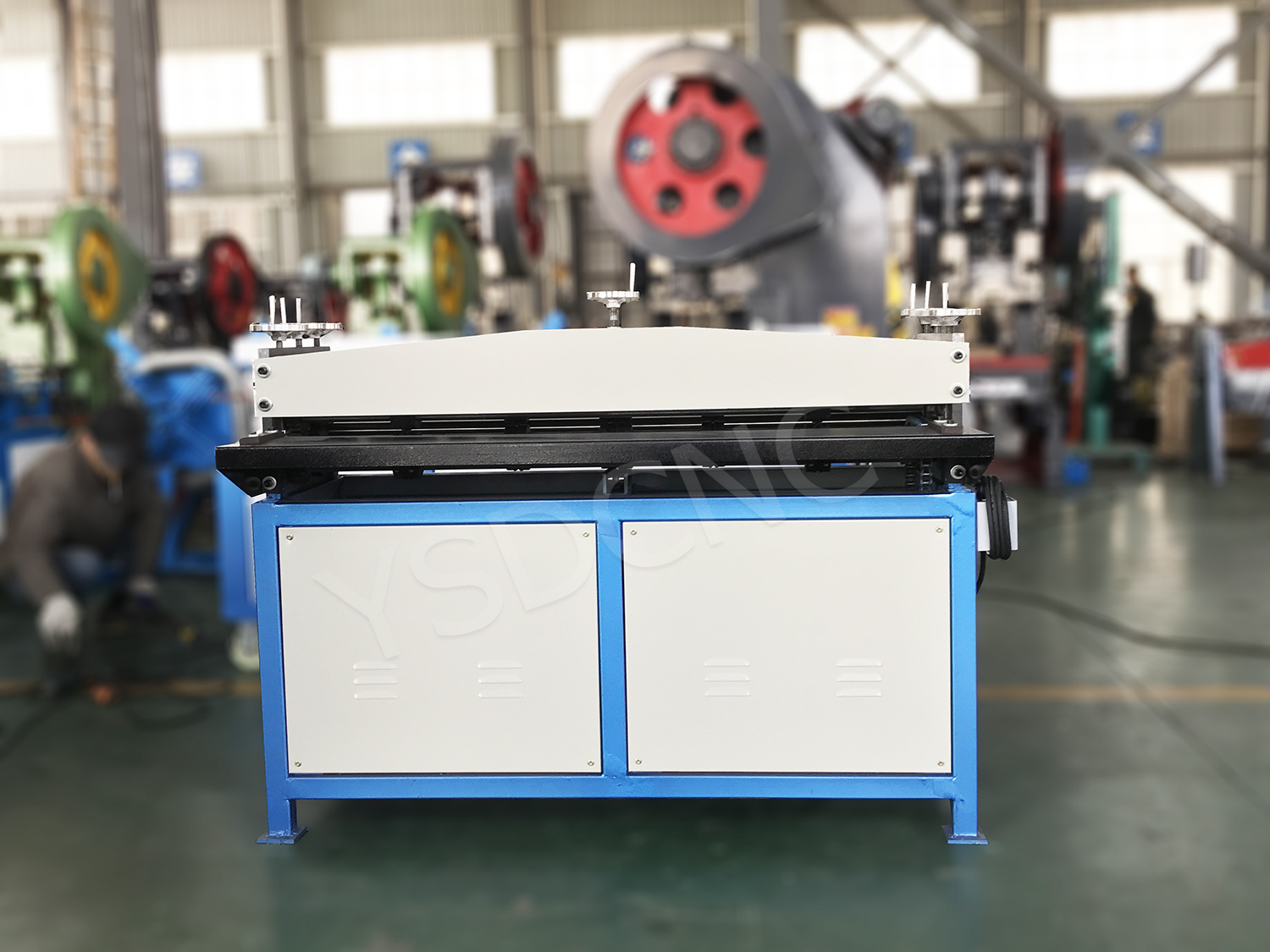

YSDCNC 1.2*1300B steel sheet beading grooving machine multi-line can get more strengthen beadings on the long sheet for one time,it is used for duct making and metal sheet beading,strengthening the rigidty.customers can choose the suitable model according to the thickness, width and the number of beadings of the metal sheet.
Product Description
Specification
Tpye Item | Unit | G1.2*1300B | G1.2*2500B | |
Sheet thickness | mm | 0.5-1.2 | 0.5-1.2 | |
Sheet width | mm | 1300 | 2500 | |
Power | KW | 1.5 | 1.5 | |
Dimension | L | mm | 1550 | 2350 |
W | mm | 1050 | 1050 | |
H | mm | 1170 | 1300 | |
Weight | KG | 400 | 600 | |
