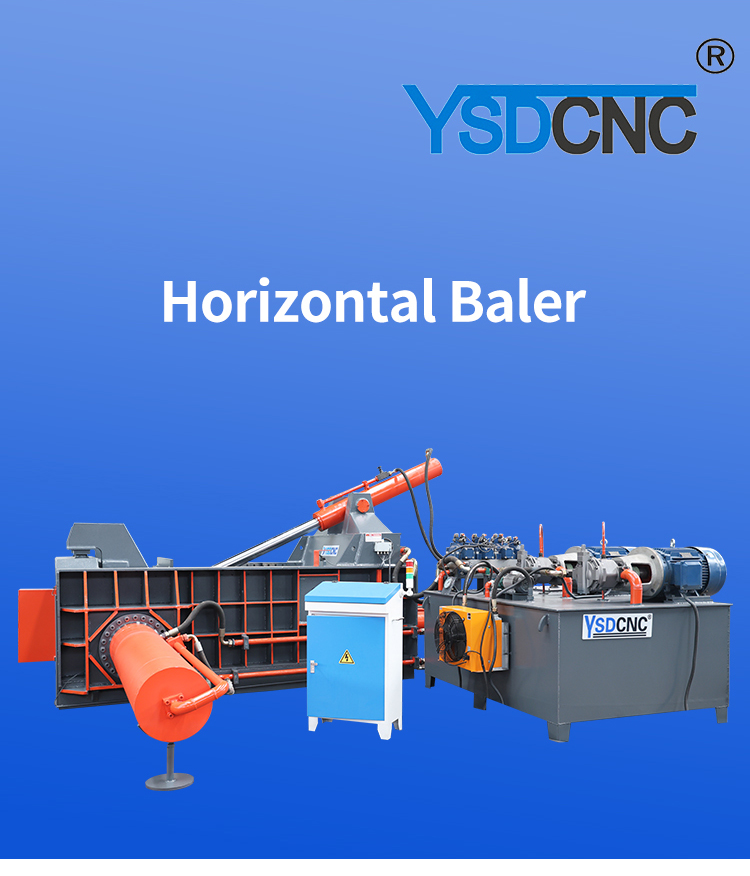

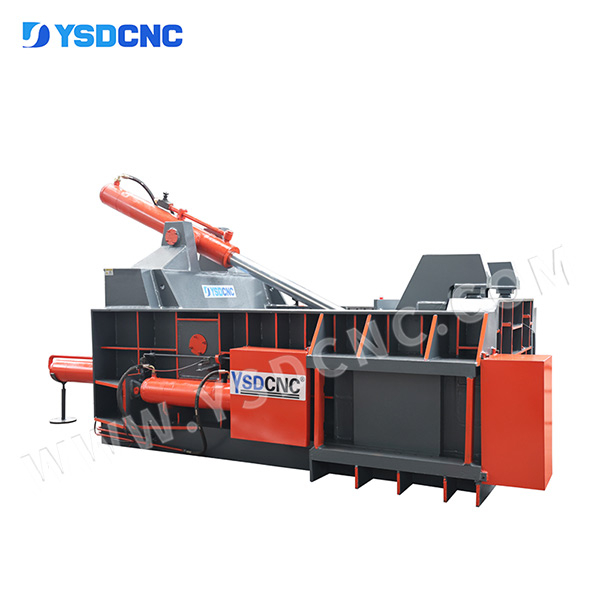

High Quality Hydraulic Metal Hydraulic Press Packing Horizontal Baler

5 0 Reviews
Availability:
Quantity:
  • Y81F-200F

  • YSDCNC

Features

Here is the English translation of the performance characteristics of a horizontal baler:

1.High Efficiency and Energy Saving: It uses hydraulic drive, providing high efficiency and low energy consumption, with fast baling speed and high work efficiency.

2.High Degree of Automation: Many horizontal balers are equipped with automatic feeding, automatic compression, and automatic baling functions, reducing manual operation and increasing production efficiency.

3.Excellent Baling Effect: With strong pressure, it ensures stable baling results. The pressure and density can be adjusted according to the material’s density and characteristics, making it suitable for various materials such as paper, plastic, and textiles.

4.Robust Structure: The machine body is made of high-strength steel, offering durability and the ability to work for long periods without damage.

5.Easy Operation: User-friendly design with a PLC control system and touchscreen interface, making it simple to operate and easy to maintain.

6.Safe and Reliable: Equipped with multiple safety protection devices to ensure operator safety.

7.Eco-Friendly: By compressing and baling waste materials, it greatly reduces the volume of waste, making storage, transportation, and recycling more efficient, which aligns with environmental protection standards.

These characteristics make horizontal balers widely used in waste processing and recycling industries.


Product Description

详情页_01详情页_03详情页_04

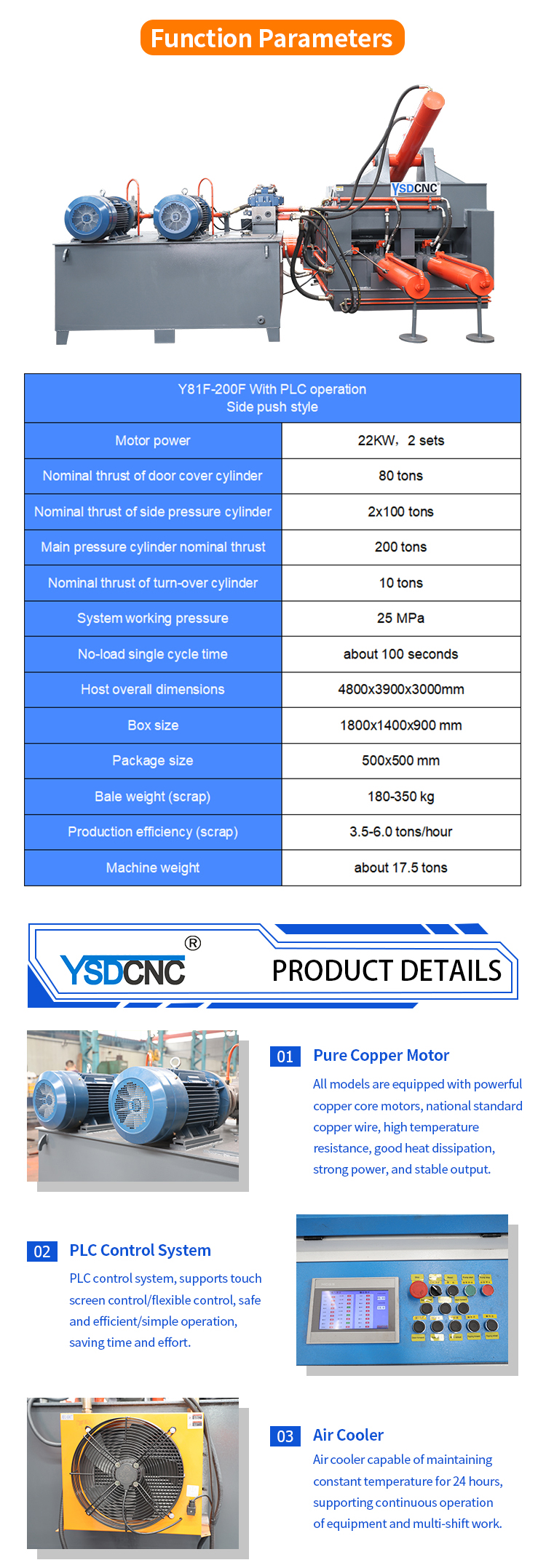

Specification

Y81F-200F With PLC operation

Side push style

Motor power

22KW,2 sets

Nominal thrust of door cover cylinder

80 tons

Nominal thrust of side pressure cylinder

2x100 tons

Main pressure cylinder nominal thrust

200 tons

Nominal thrust of turn-over cylinder

10 tons

System working pressure

25 MPa

No-load single cycle time

about 100 seconds

Host overall dimensions

4800x3900x3000mm

Box size

1800x1400x900 mm

Package size

500x500 mm

Bale weight (scrap)

180-350 kg

Production efficiency (scrap)

3.5-6.0 tons/hour

Machine weight

about 17.5 tons
