Features
Product Description:

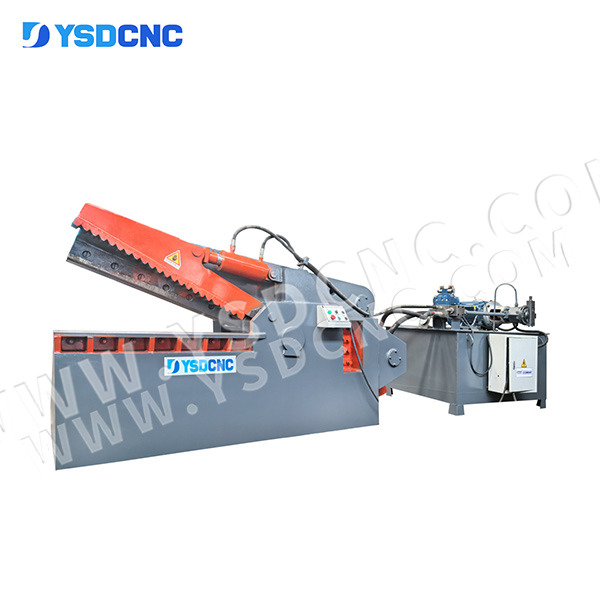

Hydraulic Alligator Shear is one ofthe metal shears, it is hydraulically driven, with reliable safety and convenient operation. Cuttingedge length ofshearing machine:400mm,600mm,700mm,800mm,1000mm, 1200mm; shear force ranges from 63 tons to 400 tons in eight grades,suitable for users with different sizes and requirements
Application:
Hydraulic Alligator Shear is suitable for metal recycling processing factor, the automatic dismantling plants, smelting foundry industry. all kinds ofshape steel and all kinds of metal structures for cold cut,processed into qualified burden.
Product Description

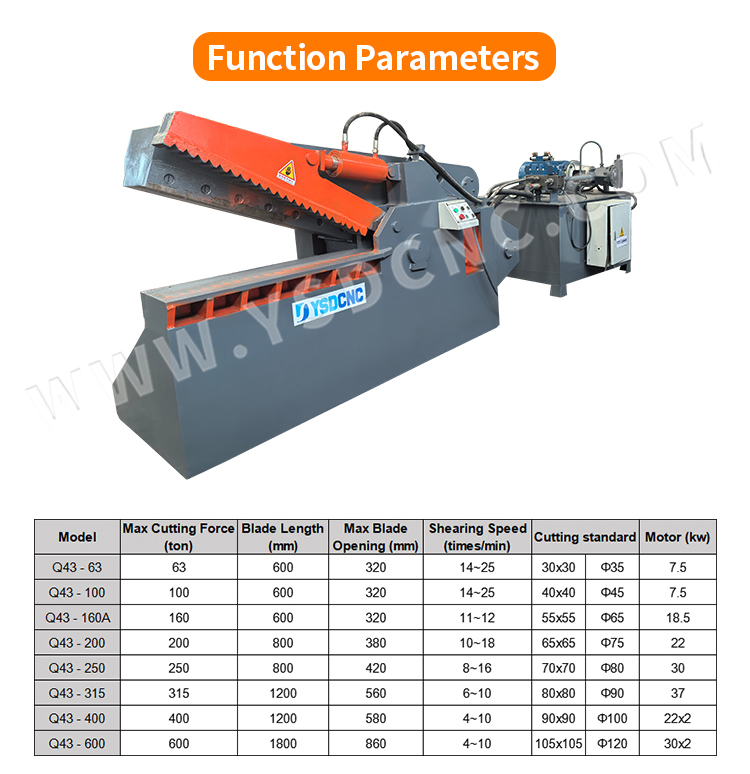

Specification
| Model | Max Cutting Force (ton) | Blade Length (mm) | Max Blade Opening (mm) | Shearing Speed (times/min) | Cutting standard | Motor (kw) | |
| Q43 - 63 | 63 | 600 | 320 | 14~25 | 30x30 | Φ35 | 7.5 |
| Q43 - 100 | 100 | 600 | 320 | 14~25 | 40x40 | Φ45 | 7.5 |
| Q43 - 160A | 160 | 600 | 320 | 11~12 | 55x55 | Φ65 | 18.5 |
| Q43 - 200 | 200 | 800 | 380 | 10~18 | 65x65 | Φ75 | 22 |
| Q43 - 250 | 250 | 800 | 420 | 8~16 | 70x70 | Φ80 | 30 |
| Q43 - 315 | 315 | 1200 | 560 | 6~10 | 80x80 | Φ90 | 37 |
| Q43 - 400 | 400 | 1200 | 580 | 4~10 | 90x90 | Φ100 | 22x2 |
| Q43 - 600 | 600 | 1800 | 860 | 4~10 | 105x105 | Φ120 | 30x2 |
