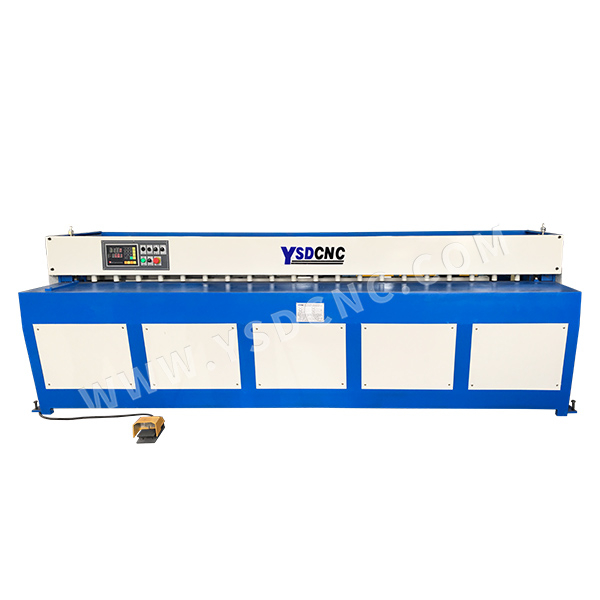

Q11 2x3200 electric shearing cutting machine with MD11 system

5 0 Reviews
Availability:
Quantity:
  • YSDCNC

Features

In industrial metal cutting, the electric shearing machine is a top choice due to its high precision and efficiency. Here are the main features of this machine, providing you with an efficient and accurate metal cutting solution.

1.All-Steel Welded Structure

This electric shearing machine uses a robust, all-steel welded structure, ensuring durability and stability under high-intensity working conditions, which guarantees long-term usage and excellent cutting performance.

2.Integrated Motor and Cycloidal Pinwheel Reducer

Equipped with an integrated motor and cycloidal pinwheel reducer with automatic braking function, this machine uses a chain drive to reduce mechanical wear and improve overall operational efficiency.

3.Simple Structure and Easy Operation

With a straightforward design and ease of operation, this electric shearing machine is suitable for various industrial applications. Its low energy consumption reduces operational costs and enhances productivity.

4.Ideal for Cutting Steel Sheets of 0.1-3mm Thickness

This electric shearing machine is designed to cut steel sheets with thicknesses ranging from 0.1 to 3mm, making it ideal for thin-sheet processing while ensuring cutting efficiency and accuracy.

5.High-Alloy Tool Steel Blade

The machine’s blade is crafted from high-alloy tool steel, which is highly durable. With special processing, the blade maintains its sharp edge for consistent, long-term cutting performance.

6.High Precision and Efficiency

Our electric shearing machine is known for its high precision, efficiency, and stability, making it suitable for various metal cutting applications and ensuring smooth operation.

7.Optimized Shearing Angle

The machine’s small shearing angle ensures precise cuts and smooth cut surfaces, enhancing the quality of the final product.

8.Optional CNC Control System

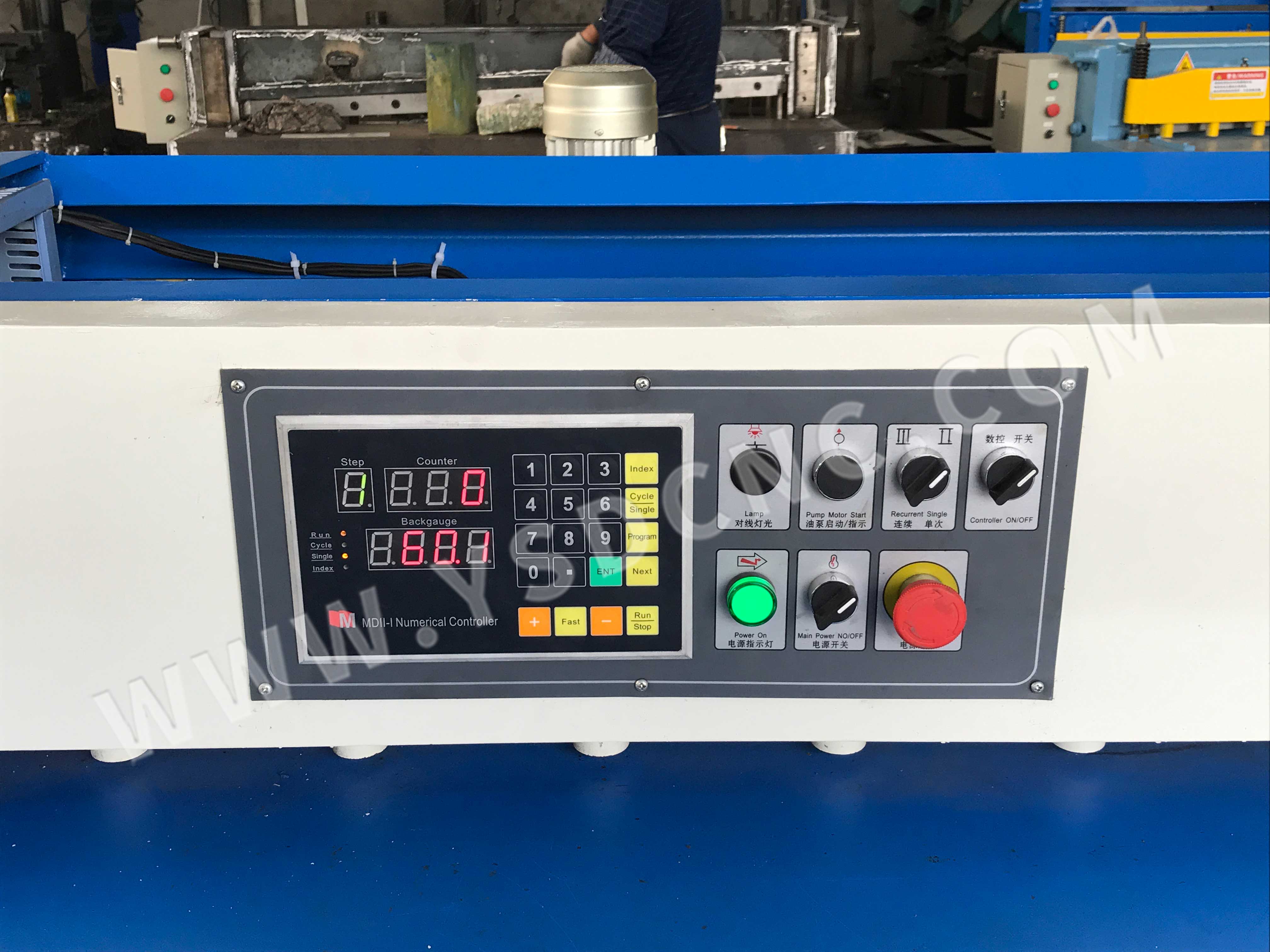

Users can opt for the MD11 or E21 CNC control system with an electric backgauge, increasing automation and cutting precision.





These features make the electric shearing machine an ideal tool for various metal processing needs. With its all-steel structure, durable blade, and multiple intelligent CNC control options, it provides stable, efficient, and precise cutting, meeting the high standards of modern industrial metal processing.


Product Description

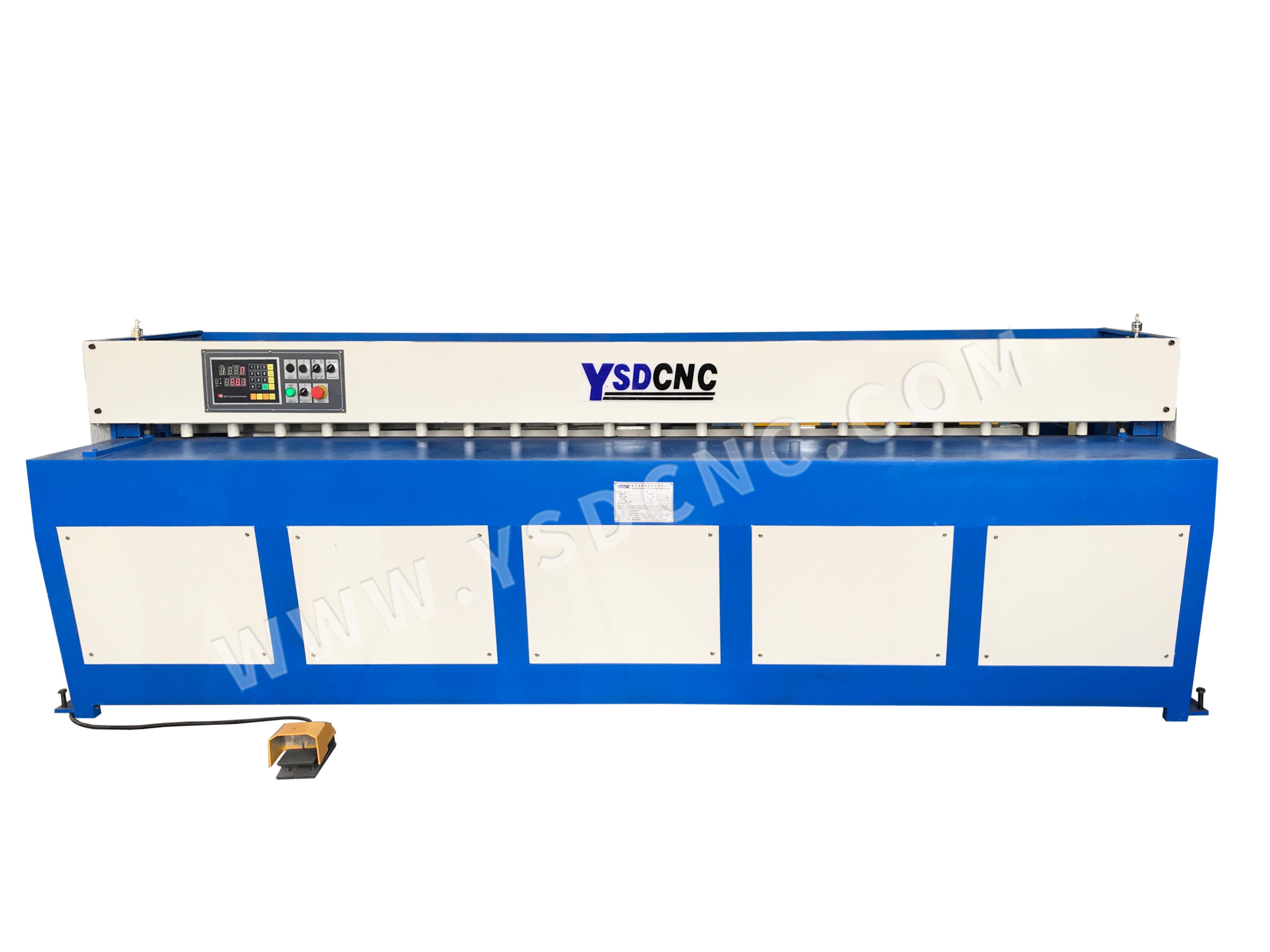

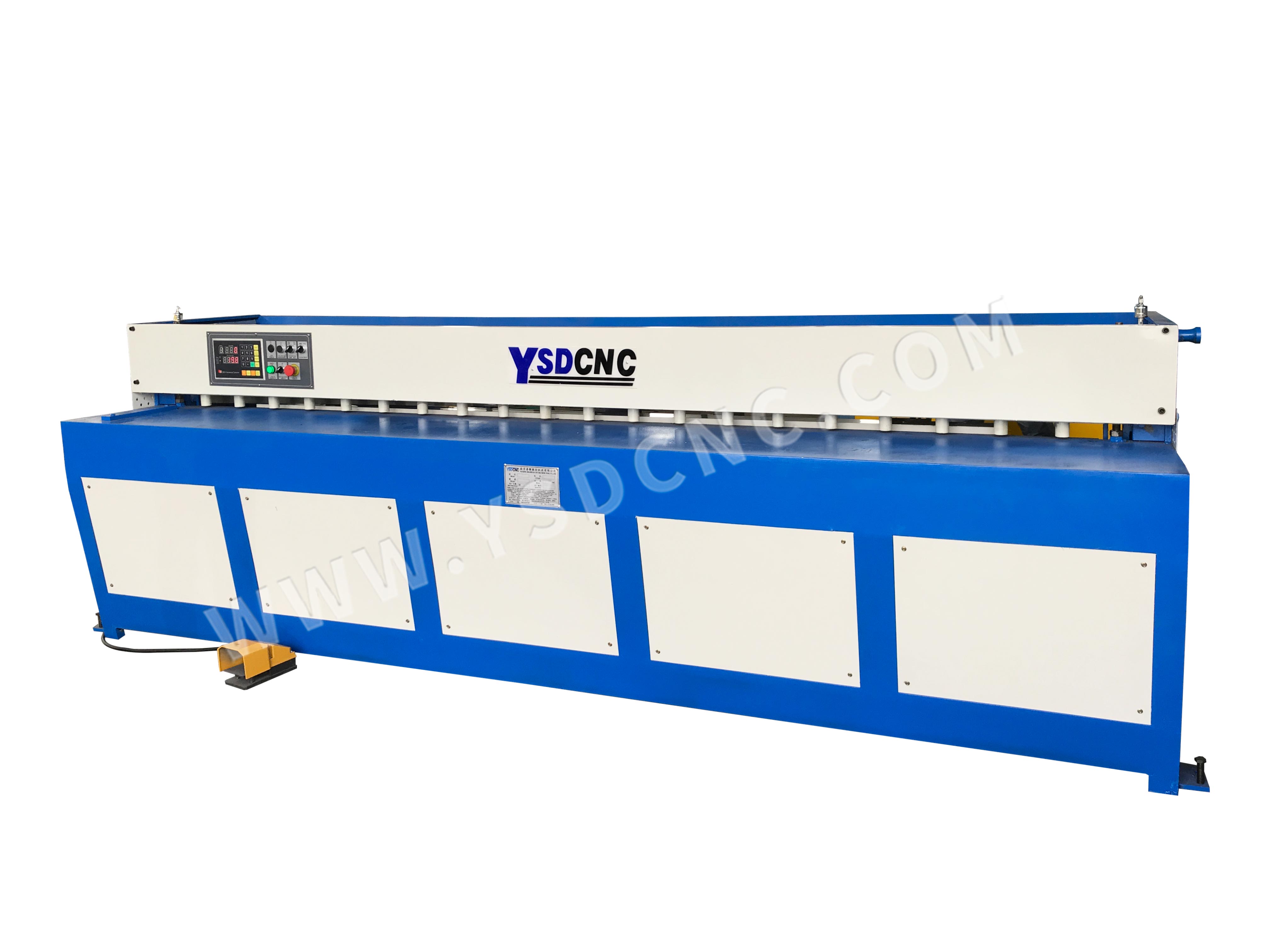

Electric shearing machine 2X3200mm with MD11 system (11)Electric shearing machine 2X3200mm with MD11 system (12)Electric shearing machine 2X3200mm with MD11 system (13)Electric shearing machine 2X3200mm with MD11 system (7)Electric shearing machine 2X3200mm with MD11 system (6)

Specification

ParametersUnitQ11-1.5*1300Q11-2*1000Q11-2*1300Q11-3*1000Q11-3*1300Q11-3*1600Q11-3*2000Q11-4*1300Q11-4*1600Q11-2*2500Q11-2*3200Q11-3*2500
Shear plate thicknessmm1.522333344223
Shear plate widthmm130010001300100013001600200013001600250032002500
shear plane angle°2°14′2°14′2°14′2°14′2°14′2°14′2°14′2°14′2°14′2°14′2°14′2°14′
Upper toolpost stroke numbertimes/min333333333333333333333333
After the expected rangemm400400400400500500500500500500500500
Motor powerKW3334.54.54.55.55.55.55.55.55.5
DimensionLmm180016001900160019002200280019002200330038003300
Wmm1001001000110011001100110011001100110011001100
Hmm110011001100120012001200120012001200120012001200
