Features
Performance Features:

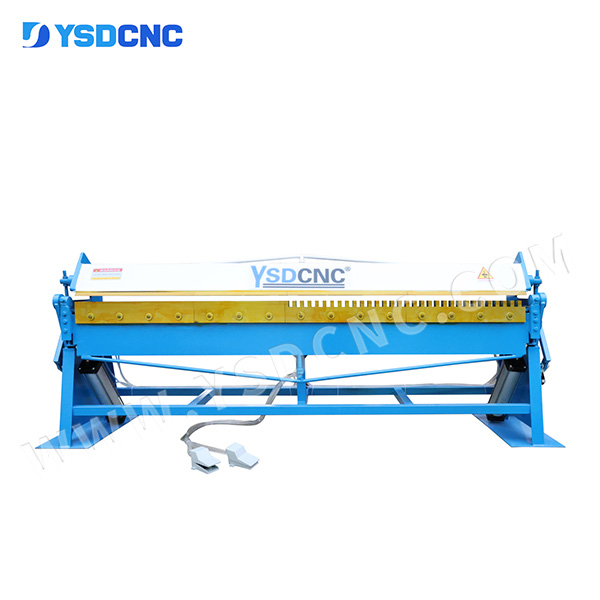

YSDCNC hand sheet metal bending machine is of all -steel welded construction. Simple construction with good appearance. It is easy to operate,with low energy consumption.
Our hand folders are of many types and incorporate with all the outstanding features.
The advantage is that both its up and down movements can be adjusted.They can process workpieces according to the customer's requirement, and can fold sheet into a box/pan with four sides.
Hand folders are suitable for duct making, metal box forming and pan processing and can be used on the site.It is the ideal energy-saving equipment for enterprises and family factories with light, energy saving, high efficiency, high output, high rate of return and wide popularity at home and abroad.
Product Description
Specification
Model | The Smallest fold angle | Thinkniss | Maximum fold length | Weight | Dimension(mm) |
QD-1.5*1000 | 60° | 0.3-1.5 mm | 1000 mm | 380 kg | 1650*680*1350 |
QD-1.5*1300 | 60° | 0.3-1.5 mm | 1300 mm | 420 kg | 1980*800*1350 |
QD-1.5*1500 | 60° | 0.3-1.5 mm | 1500 mm | 550kg | 2180*800*1350 |
QD-1.5*2000 | 60° | 0.3-1.5 mm | 2000 mm | 620kg | 2680*800*1350 |
QD-1.5*2500 | 60° | 0.3-1.5 mm | 2500 mm | 700kg | 3180*800*1350 |
