Features
Performance Features:
●High chromium tool steel, adjustable clearance, durable
●Large inertia wheel, large button moment and high production capacity.
●Heavy-duty bearing and dust-proof device, and sound-proof partition, can effectively prevent vibration and noise
●Interlock design of safety devices to protect the safety of machines and personnel.
●Alternative cutting effectively reduces dust and saves energy
● Motor overload protection, over-force adjustment.
●Move casters for easy placement.
●Removable design, easy to maintain.

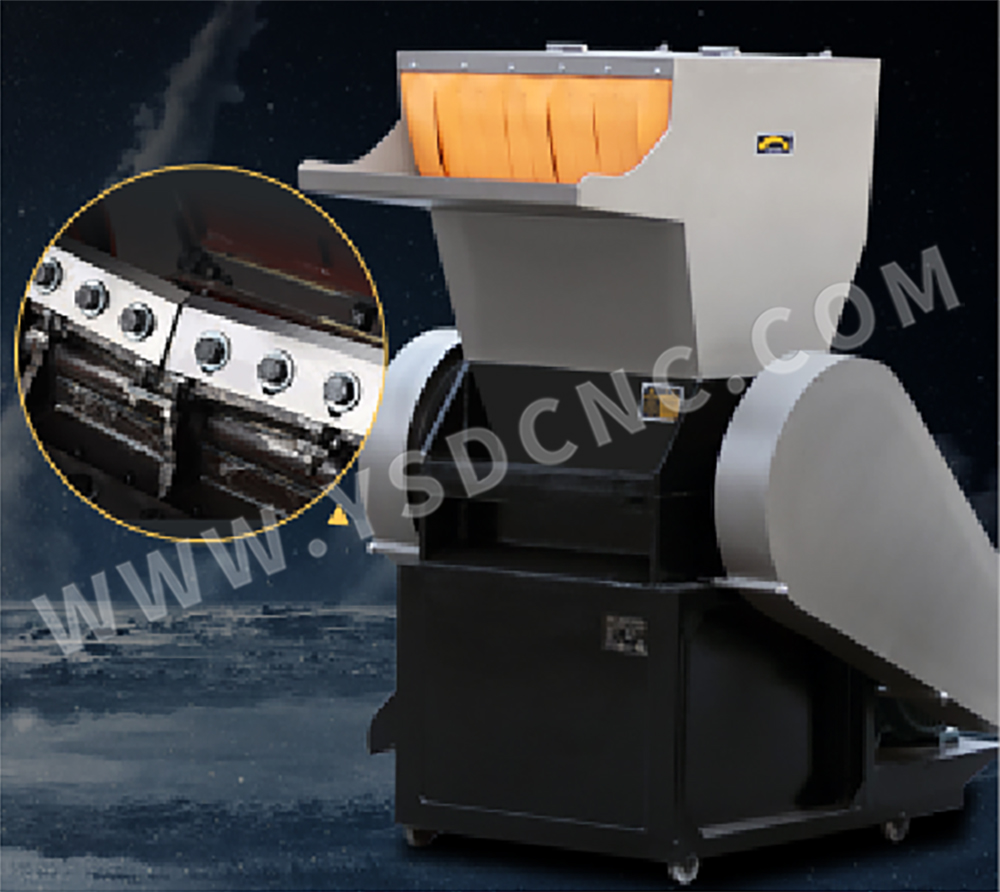

●Cutting tools made of high chromium tool steel,gap adjustable and durable.
●The large beltwheel and flywheel increase the impact moment and capacity.
●Heavy load bearing and dust-proof design,with sound-proof plate,can prevent vibration and noise.
●Interlock safety device protect the operator and machine.
●The alternating cutting effectively reduce dust and save power.
●motor designed with overload protection,which automatically shut down when it enters protection mode.
●Equipped with castors,easy to move or place.
●Detachable design for easy maintenance.
Product Description
Specification

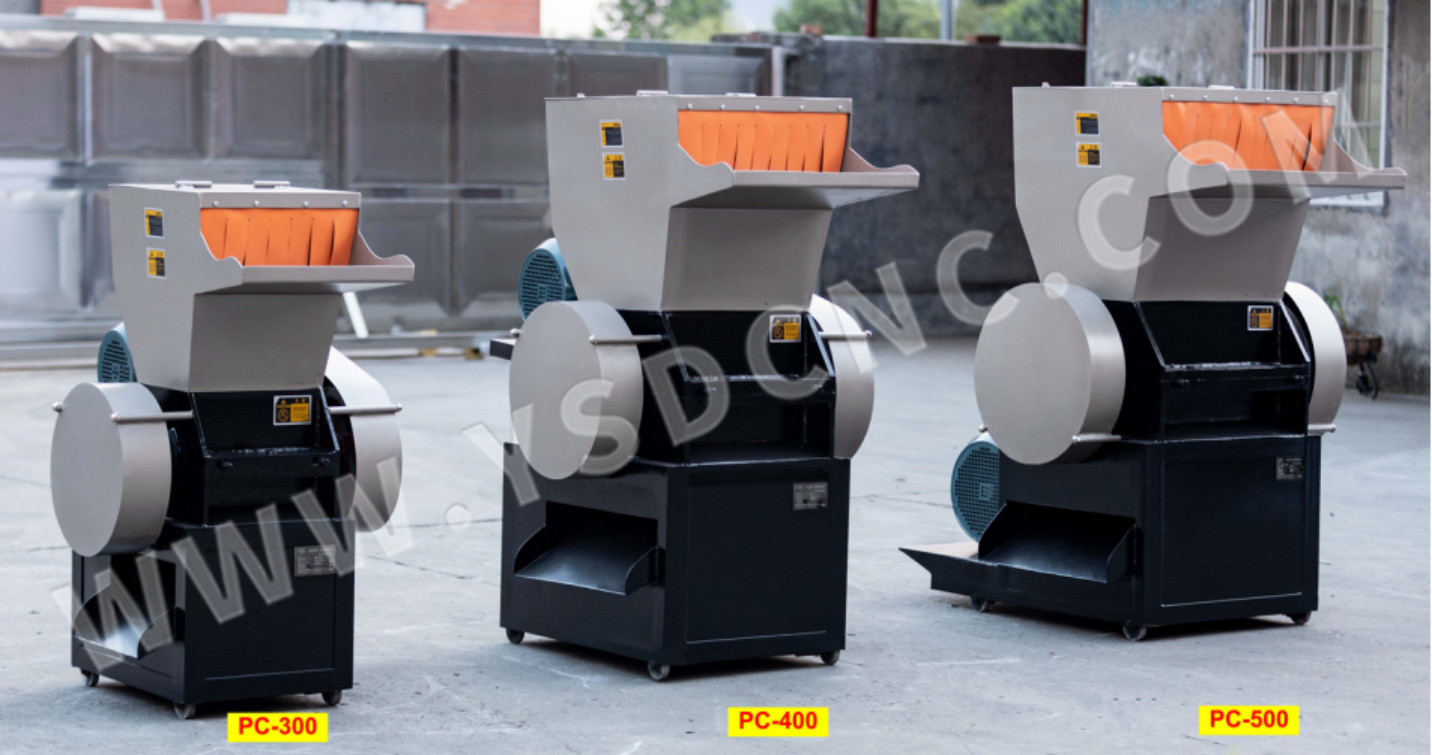

Model | PC-300 | PC-400 | PC-500 |
Motor (kw) | 4 | 5.5 | 7.5 |
Rotating Speed(r/min) | 550 | 500 | 500 |
Rotating Φ Dia (mm) | 50 | 60 | 60 |
Moving blades (pcs) | 6 | 3 | 3 |
Fixed blades (pcs) | 2 | 2 | 2 |
Feeding inlet (mm) | 370*250 | 510*260 | 610*260 |
Screen mesh Φ (mm) | 8 | 10 | 10 |
Crushing ability (kg/hr) | ≤200 | ≤300 | ≤400 |
Weight (kg) | 180 | 380 | 430 |
Dimensions (L*W*H)mm | 900*660*1200 | 1100*780*1380 | 1130*900*1380 |
