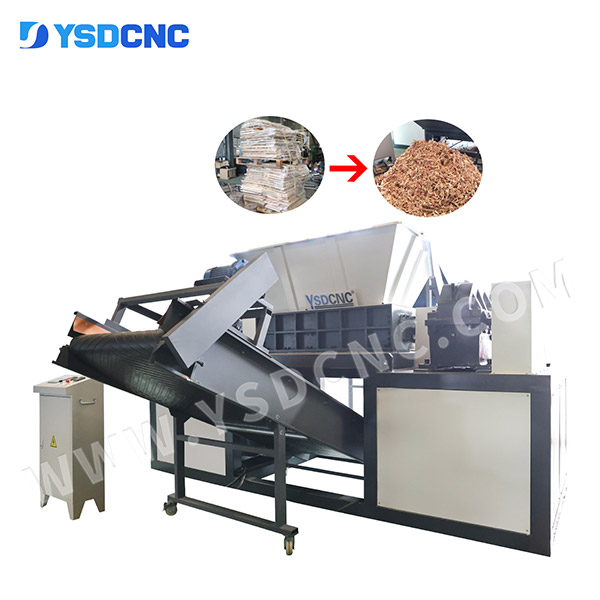

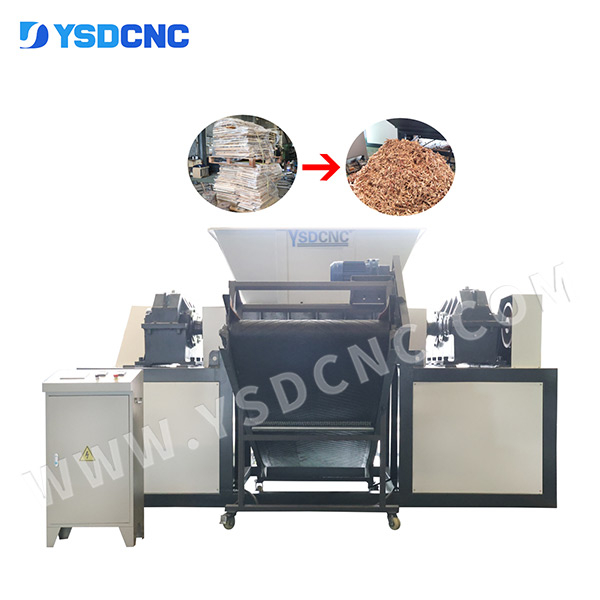

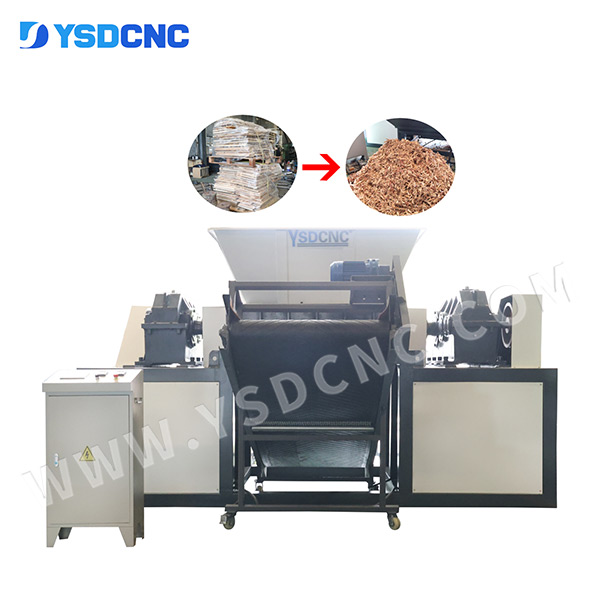

1300 type shredder
YSDCNC
Features
Hello, I’m Huiling Zhou — Let Me Introduce Our Large-Scale Pallet Shredder to You!
Hi there! My name is Huiling Zhou, and I’m a sales representative at Nanjing Shanduan CNC Machine Tool Co., Ltd.
Over the years, I’ve worked with many clients who struggle with how to efficiently dispose of extra-long wooden pallets — too long to move easily, too slow to cut by hand, and often too large for standard shredders.
That’s why I’m so excited to introduce this custom-built shredder for pallets up to 50 feet long — designed for exactly this kind of challenge.
Key Features：
Applicable Materials: Plywood, wooden crates, and pallets (length: 0–50 feet)
High Output: Processes 2000–3000 kg/hour, ideal for high-volume needs

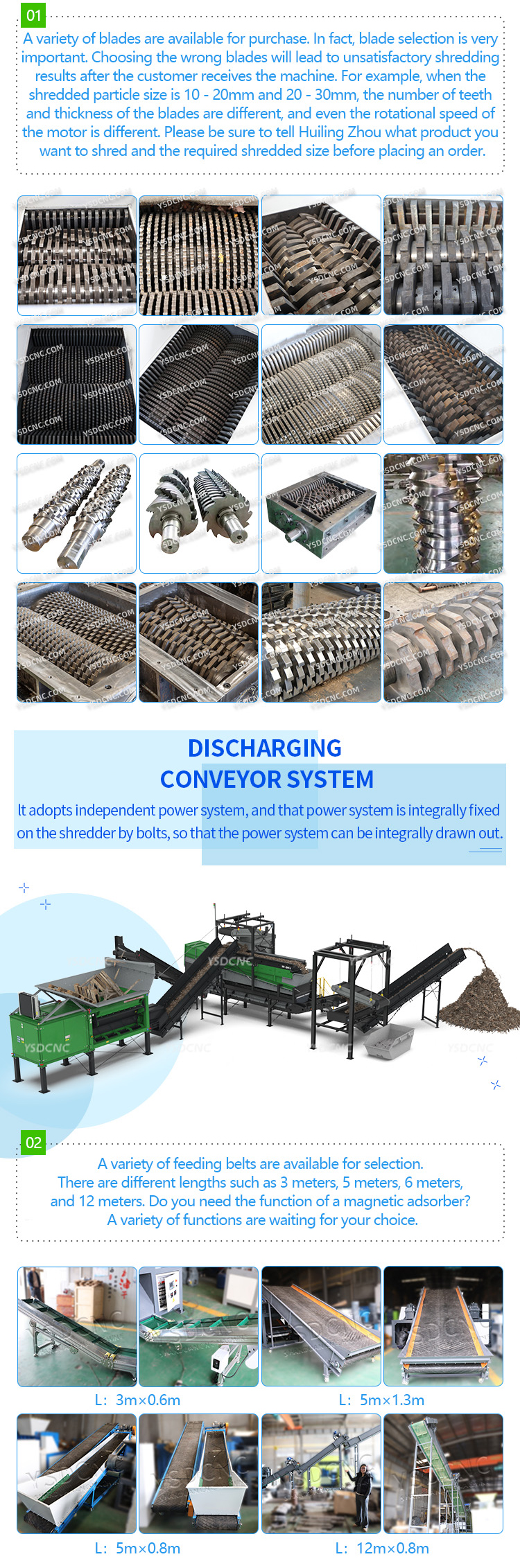

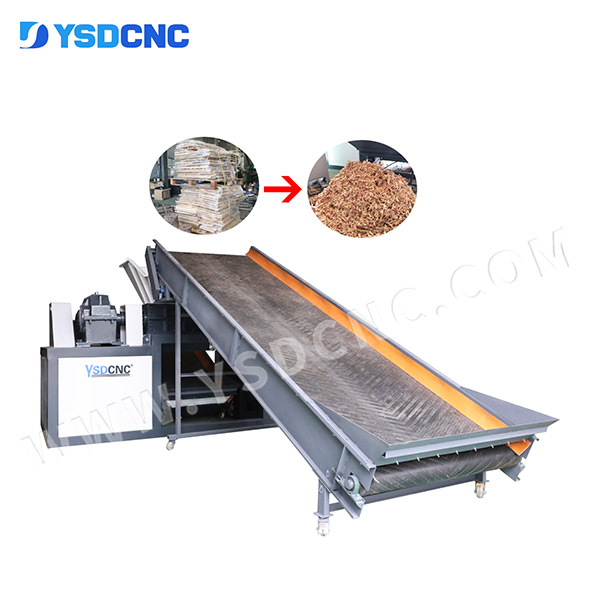

Conveyor System: Equipped with 5-meter-long feeding and discharge conveyors, perfectly matching 50-foot pallet size
Drive System: Uses a pulley transmission, stable and low-maintenance

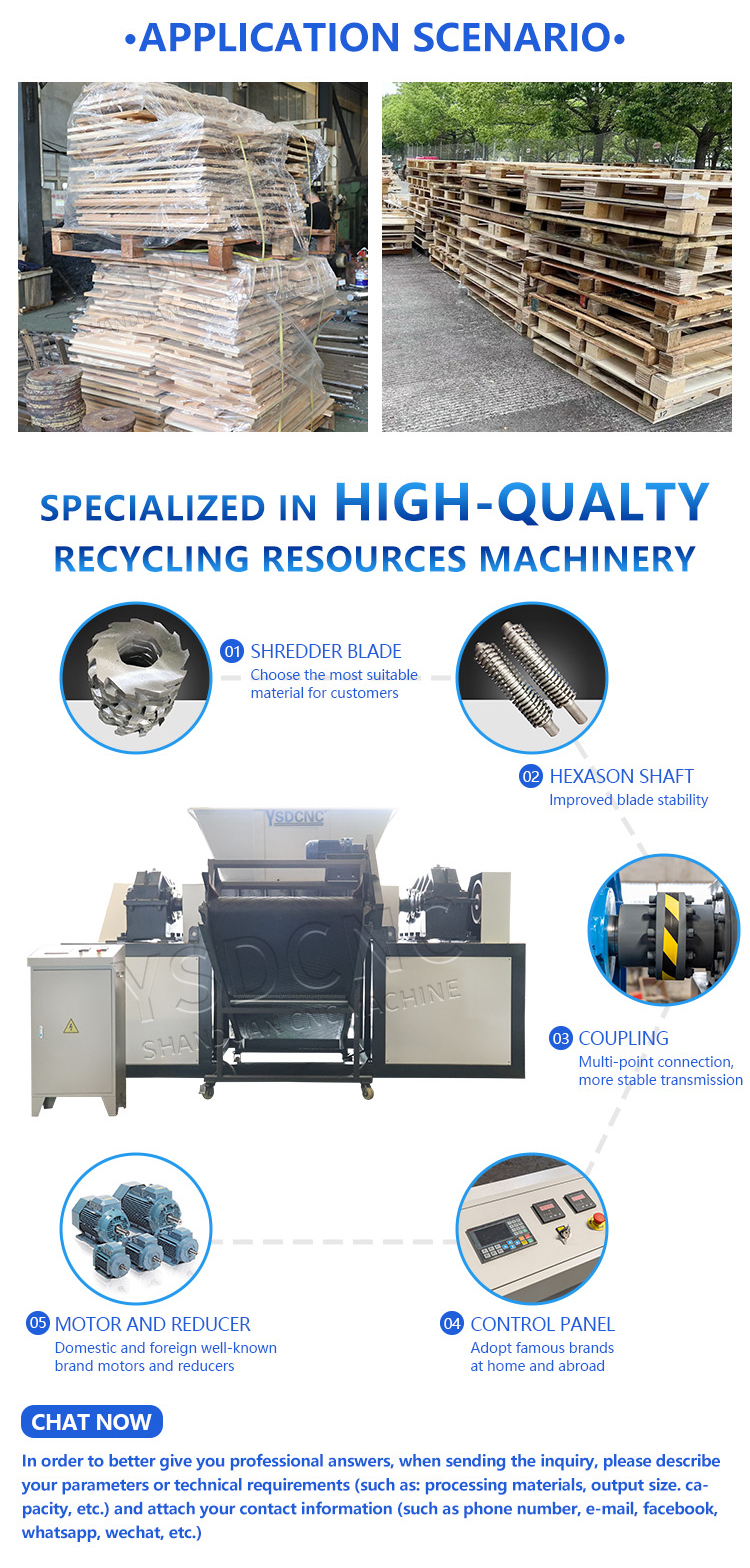

Application: Recycling centers, logistics hubs, wood packaging dismantlers, and more
As someone with years of hands-on experience in this industry, I understand what our clients really care about — performance, reliability, and cost-efficiency.
This model has been tested extensively in our own factory and has received excellent feedback. It saves time, saves labor, and just works.
Feel free to send me your pallet sizes or requirements — I’d be happy to help you choose the right configuration and offer a quotation!
Product Description
FAQ
1: ls it in stock?
Hello, we have a large amount of stock for standard models, and the regular delivery time is 0~7 days.
Customized models can be completed in 7-30 days (depending on the size and voltage of the machine, the time is different.)
2: How to buy?
Our company supports a variety of transaction methods, and you can deliver the goods to your door with a deposit in advance.Various transaction methods such as payment to delivery or delivery to the factory. Consult for details:+8618851629789
3:How about the after-sales service?
15 minutes quick feedback mechanism.1-to-1 technical guidance.One year warranty and lifetime service.Free replacement of non-wearing parts during the warranty period, and lifelong online technical support provided outside the warranty period.The factory provides spare parts, and the factory installation video provides after-sales service.
4: How about your quality?
Our company's products are produced according to national standards, and have passed TUV,SGS, BV, CE and other certifications.Quality assurance, EU approval, the products sell well in more than 100 countries.
5: What other services do you have?
Free counter, free customs declaration, free installation training for export free online technical quidance.
6:How to contact Nanjing Shanduan YSDCNC?
We are your partner in China. lf you have any questions, please feel free to contact us for help.
helen@ysdcnc.com,+86 18851629789, helen zhou

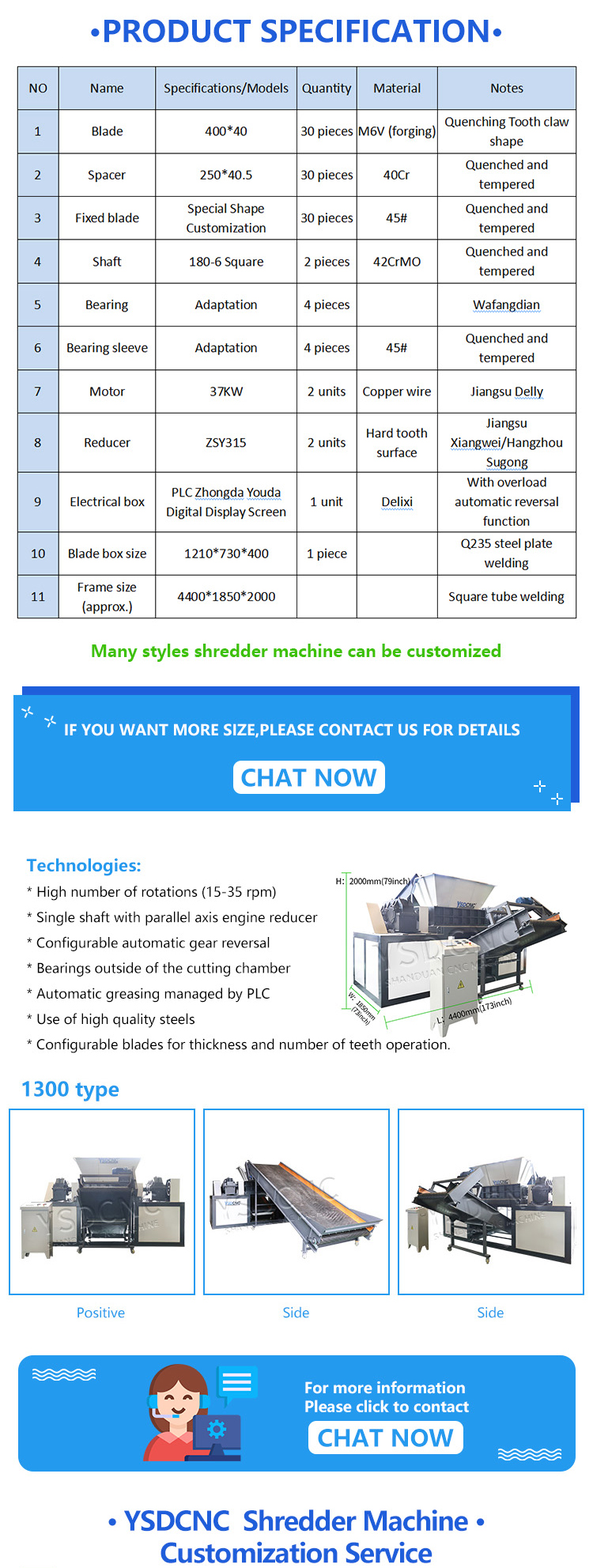

Specification
NO | Name | Specifications/Models | Quantity | Material | Notes |
1 | Blade | 400*40 | 30 pieces | M6V (forging) | Quenching Tooth claw shape |
2 | Spacer | 250*40.5 | 30 pieces | 40Cr | Quenched and tempered |
3 | Fixed blade | Special Shape Customization | 30 pieces | 45# | Quenched and tempered |
4 | Shaft | 180-6 Square | 2 pieces | 42CrMO | Quenched and tempered |
5 | Bearing | Adaptation | 4 pieces | Wafangdian | |
6 | Bearing sleeve | Adaptation | 4 pieces | 45# | Quenched and tempered |
7 | Motor | 37KW | 2 units | Copper wire | Jiangsu Delly |
8 | Reducer | ZSY315 | 2 units | Hard tooth surface | Jiangsu Xiangwei/Hangzhou Sugong |
9 | Electrical box | PLC Zhongda Youda Digital Display Screen | 1 unit | Delixi | With overload automatic reversal function |
10 | Blade box size | 1210*730*400 | 1 piece | Q235 steel plate welding | |
11 | Frame size (approx.) | 4400*1850*2000 | Square tube welding |
