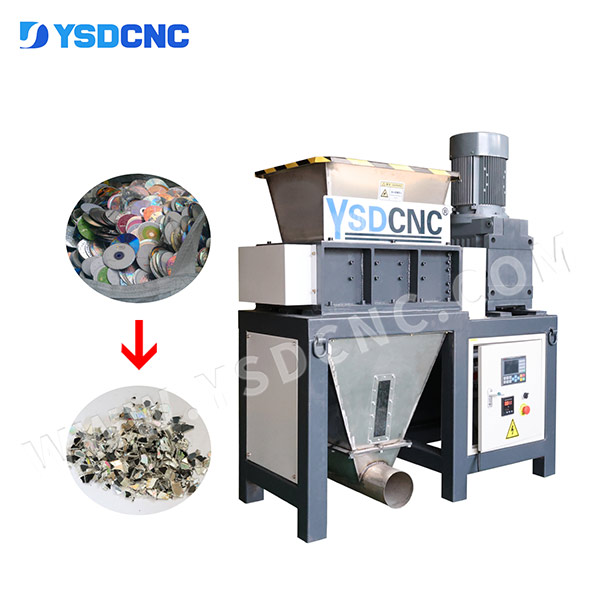

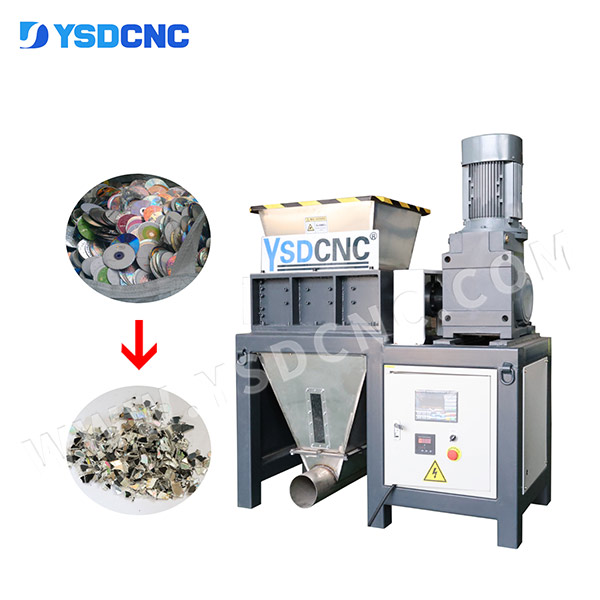

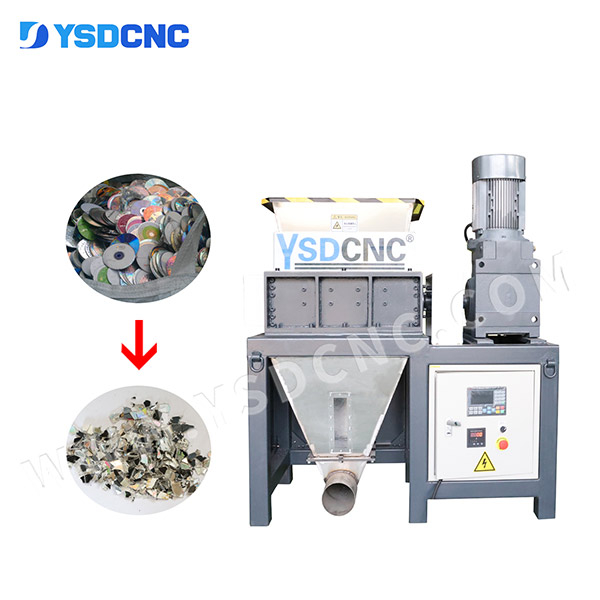

400 type shredder
YSDCNC
Features
Huiling Zhou | Sales Consultant | Nanjing Shanduan CNC Machine Tool Co., Ltd.
Introducing our 400 Series Stainless Steel Shredder – engineered for industrial-grade performance with a focus on safety, efficiency, and hygiene:
Key Features & Benefits：
Full Stainless Steel Construction
1.Blades, hopper, discharge port & protective casing made from premium 304 stainless steel
2.Meets GMP/FDA hygiene standards Corrosion-resistant & wear-proof – extends service life by 30%
Innovative Hopper Feeding System
1.Vacuum-assisted hopper feeding design
2.40% faster material intake efficiency
3.Automated centralized collection – reduces manual handling
Precision Shredding Performance
1.Achieves ≤5mm particle size
2.Processes special materials like medical waste, CDs/DVDs, food waste
3.Enhanced blade design increases throughput by 35%
Integrated Safety Protection
1.Double-layer protective casing
2.Automatic overload shutdown
3.Certified to CE/ISO safety standards
Ideal Applications
1.Industrial waste management (metal/plastic recycling)
2.Medical/pharmaceutical (hazardous waste disposal)
3.Food & beverage (kitchen waste reduction)
4.Educational institutions (CD/DVD/CD-ROM shredding)
Product Description
FAQ
1: ls it in stock?
Hello, we have a large amount of stock for standard models, and the regular delivery time is 0~7 days.
Customized models can be completed in 7-30 days (depending on the size and voltage of the machine, the time is different.)
2: How to buy?
Our company supports a variety of transaction methods, and you can deliver the goods to your door with a deposit in advance.Various transaction methods such as payment to delivery or delivery to the factory. Consult for details:+8618851629789
3:How about the after-sales service?
15 minutes quick feedback mechanism.1-to-1 technical guidance.One year warranty and lifetime service.Free replacement of non-wearing parts during the warranty period, and lifelong online technical support provided outside the warranty period.The factory provides spare parts, and the factory installation video provides after-sales service.
4: How about your quality?
Our company's products are produced according to national standards, and have passed TUV,SGS, BV, CE and other certifications.Quality assurance, EU approval, the products sell well in more than 100 countries.
5: What other services do you have?
Free counter, free customs declaration, free installation training for export free online technical quidance.
6:How to contact Nanjing Shanduan YSDCNC?
We are your partner in China. lf you have any questions, please feel free to contact us for help.
helen@ysdcnc.com,+86 18851629789, helen zhou

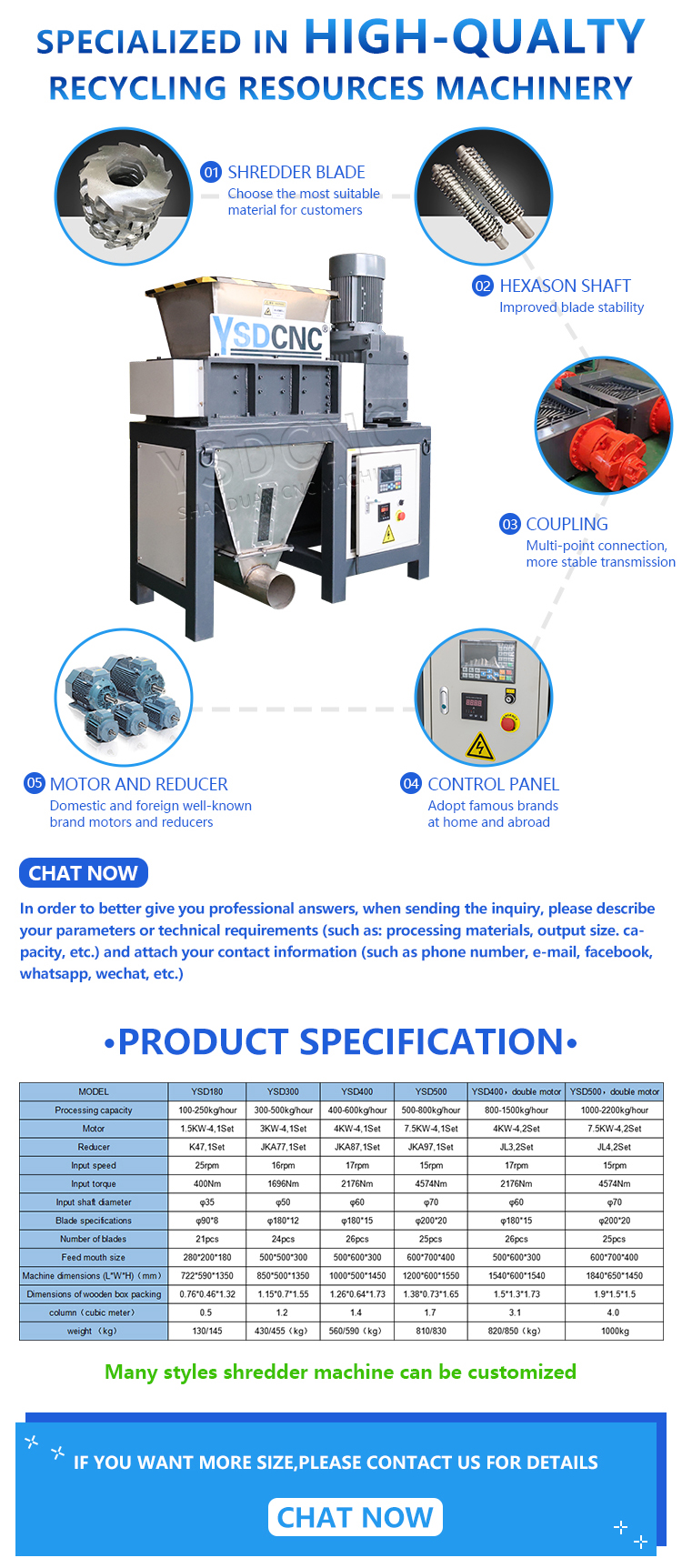

Specification
| MODEL | YSD180 | YSD300 | YSD400 | YSD500 | YSD400，double motor | YSD500，double motor |
| Processing capacity | 100-250kg/hour | 300-500kg/hour | 400-600kg/hour | 500-800kg/hour | 800-1500kg/hour | 1000-2200kg/hour |
| Motor | 1.5KW-4,1Set | 3KW-4,1Set | 4KW-4,1Set | 7.5KW-4,1Set | 4KW-4,2Set | 7.5KW-4,2Set |
| Reducer | K47,1Set | JKA77,1Set | JKA87,1Set | JKA97,1Set | JL3,2Set | JL4,2Set |
| Input speed | 25rpm | 16rpm | 17rpm | 15rpm | 17rpm | 15rpm |
| Input torque | 400Nm | 1696Nm | 2176Nm | 4574Nm | 2176Nm | 4574Nm |
| Input shaft diameter | φ35 | φ50 | φ60 | φ70 | φ60 | φ70 |
| Blade specifications | φ90*8 | φ180*12 | φ180*15 | φ200*20 | φ180*15 | φ200*20 |
| Number of blades | 21pcs | 24pcs | 26pcs | 25pcs | 26pcs | 25pcs |
| Feed mouth size | 280*200*180 | 500*500*300 | 500*600*300 | 600*700*400 | 500*600*300 | 600*700*400 |
| Machine dimensions (L*W*H)（mm） | 722*590*1350 | 850*500*1350 | 1000*500*1450 | 1200*600*1550 | 1540*600*1540 | 1840*650*1450 |
| Dimensions of wooden box packing | 0.76*0.46*1.32 | 1.15*0.7*1.55 | 1.26*0.64*1.73 | 1.38*0.73*1.65 | 1.5*1.3*1.73 | 1.9*1.5*1.5 |
| column（cubic meter） | 0.5 | 1.2 | 1.4 | 1.7 | 3.1 | 4.0 |
| weight （kg） | 130/145 | 430/455（kg） | 560/590（kg） | 810/830 | 820/850（kg） | 1000kg |
