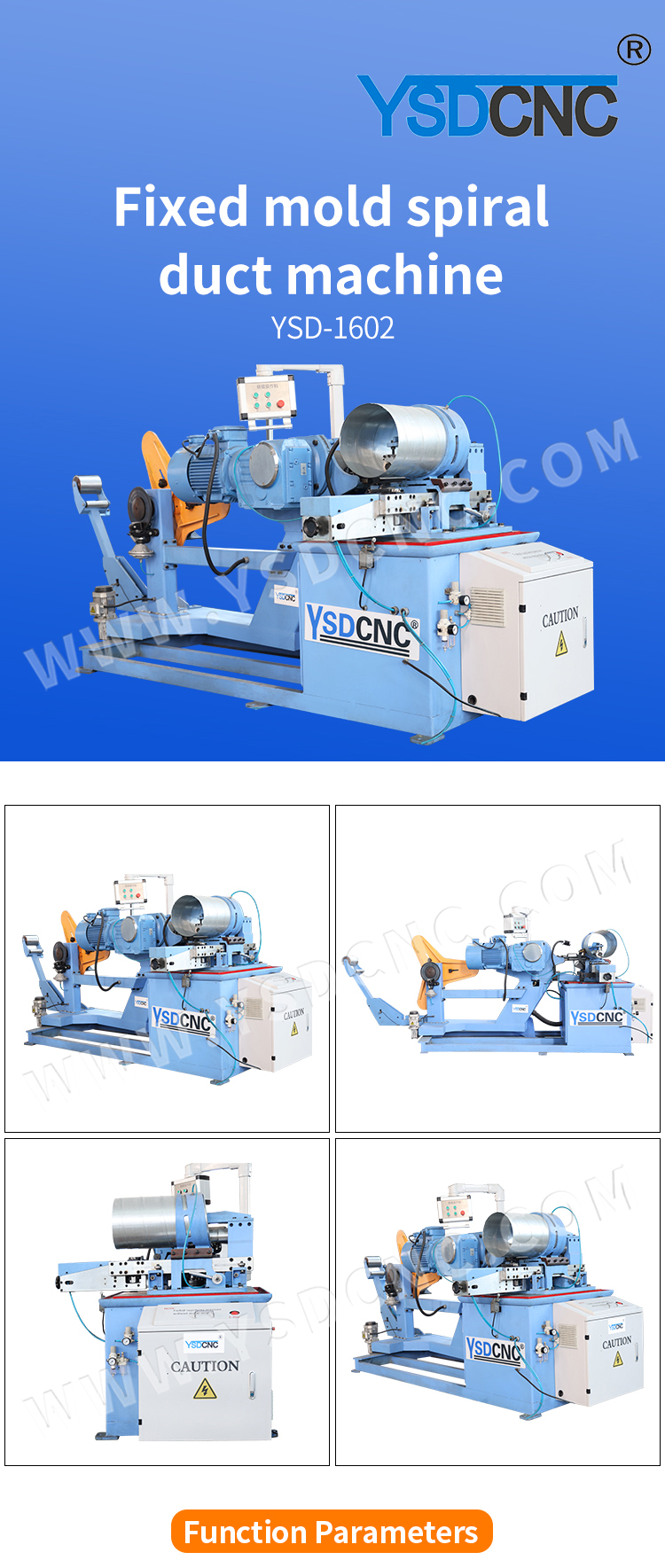

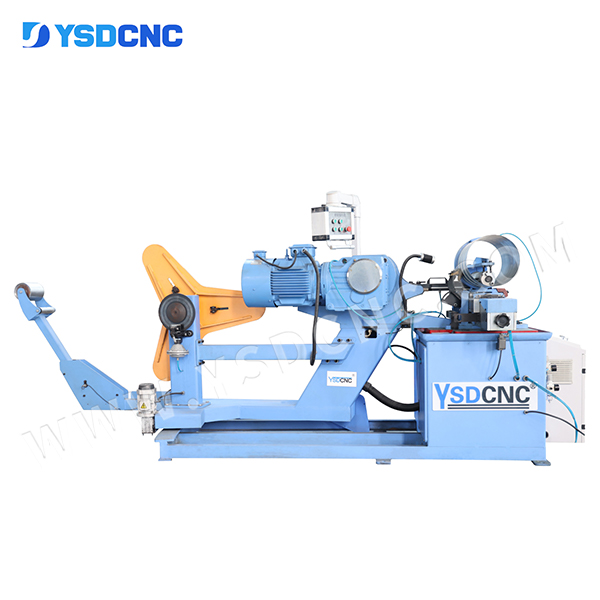

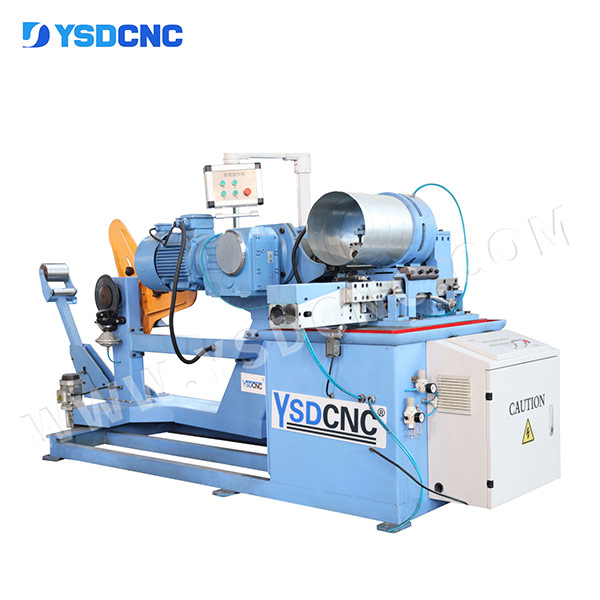

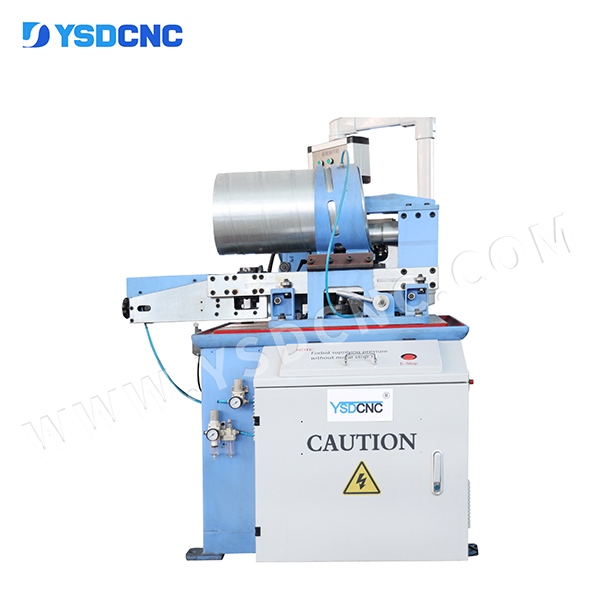

Hvac Duct 1602 Fixed mold Spiral Tube Making Machine

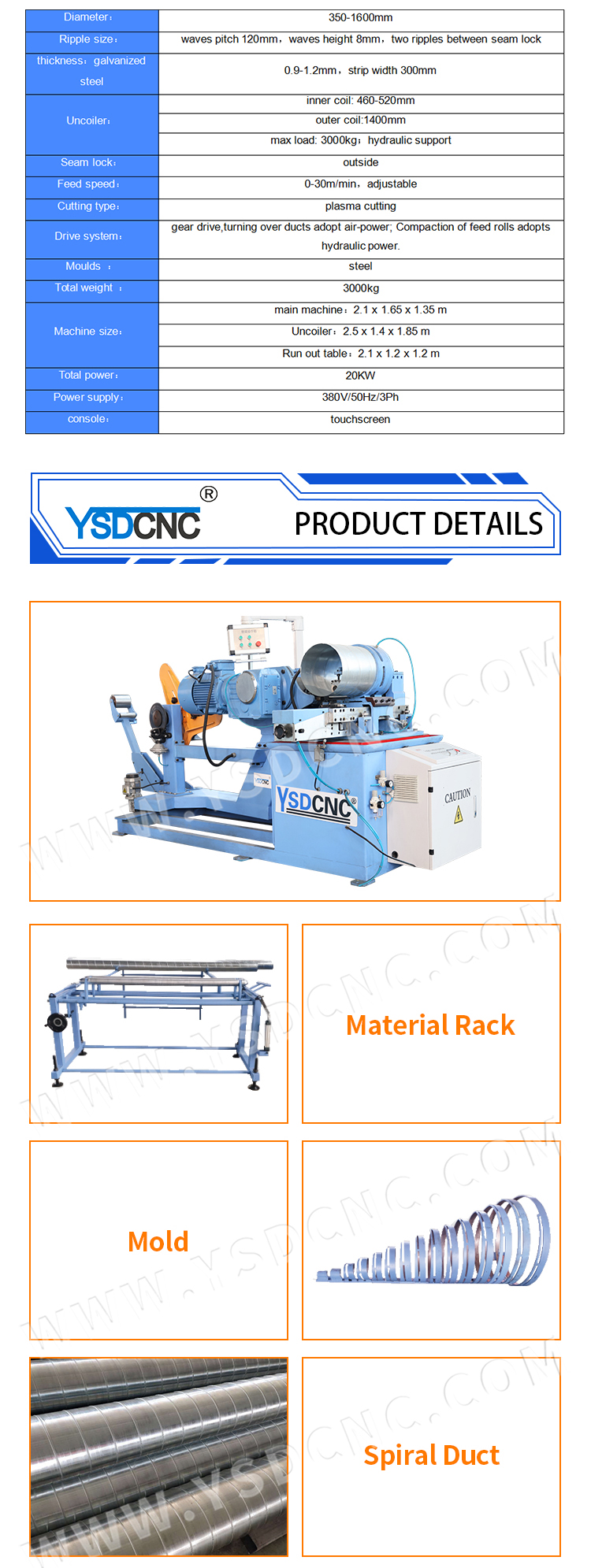

Ripple size：

waves pitch 120mm，waves height 8mm，two ripples between seam lock

thickness：galvanized steel

0.9-1.2mm，strip width 300mm

Uncoiler：

inner coil: 460-520mm

outer coil:1400mm

max load: 3000kg；hydraulic support

Seam lock：

outside

Feed speed：

0-30m/min，adjustable

Cutting type：

plasma cutting

Drive system：

gear drive,turning over ducts adopt air-power; Compaction of feed rolls adopts hydraulic power.

Moulds ：

steel

Total weight ：

3000kg

Machine size：

main machine：2.1 x 1.65 x 1.35 m

Uncoiler：2.5 x 1.4 x 1.85 m

Run out table：2.1 x 1.2 x 1.2 m

Total power：

20KW

Power supply：

380V/50Hz/3Ph

console：

touchscreen
