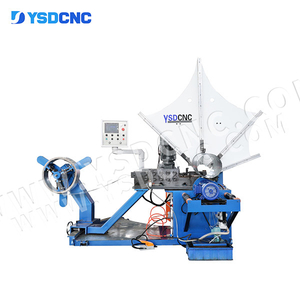

YSDCNC-1500
YSDCNC
Features
Spiral Duct Forming Machine Performance Features:
In a given processing of the diameter of the spiral duct diameter scope, the need for pipe die, using different lengths of steel belt, through the proper installation and debugging steel band instead of pipe die. The diameter of the product determines the speed of production, the smaller the diameter, the faster the production speed, on the contrary, the larger the diameter, the slower the production speed, because of the large diameter of the spiral duct, the load on the machine is higher. The length and can be used according to demand, and high-speed synchronous automatic cutting system for cutting. Due to the aesthetic appearance of this duct, this machine has also received considerable attention and many customers have given such machines a high rating. The spiral air duct forming machine is mainly used for making round spiral air duct. The machine can automatically complete round spiral tube with different diameters and different lengths based on customers demand. YSDCNC company adopts the principle of using duct mold to form the spiral duct. Spiral duct machine is easy to operate and fast to form duct with accurate diameter. The spiral duct forming machine needs to be used with round elbow machine, angle steel round rolling machine and etc, to complete the other work steps needed in spiral duct processing, YSDCNC company produces spiral duct forming machine and round elbow machine, angle steel round rolling machine and other equipment with high quality, also ensure that the pipe size processed out of precise appearance beautiful. So it can effectively help customers greatly improve the competitiveness of their products, Spiral duct machine has always been the most important equipment for round spiral duct. In order to make our products more competitive, we have optimized the structure of the machine for many times to make our machine has been greatly improved in speed and molding effect, and it has won unanimous praise from customers all over the world.
Product Description
Specification
Main Technical Parameters:
Model | YSDCNC-1500 |
Tube Diameter | 80-1500mm |
Tube Wall Thinkness | 0.4-1.2 mm(SS 0.4-0.8 mm) |
Cutting Method | Roller Cutter (Plasma cutter optional) |
Width of strip | 137 mm |
Working speed | 1-45 m/min |
Motor power | 4kw |
Dimension | 2700*1700*2300mm |
Weight | 2200kg |
Processing material: Galvanized Steel Sheet / Stainless Steel /Aluminum Plate
YSDCNC-1500 is flexible type with roller cutter
Mainly Parts :
Motor | WNM Brand(CHINA) / Siemens Brand(optional) |
Air Cylinder | SNS-CHINA |
PLC | YSDCNC-CHINA |
Frequency Transformer | China brand |
Electric Brand | Chint Electric |
Rolls Material | GCr15 |
Rollers Stations | 5 stations |
