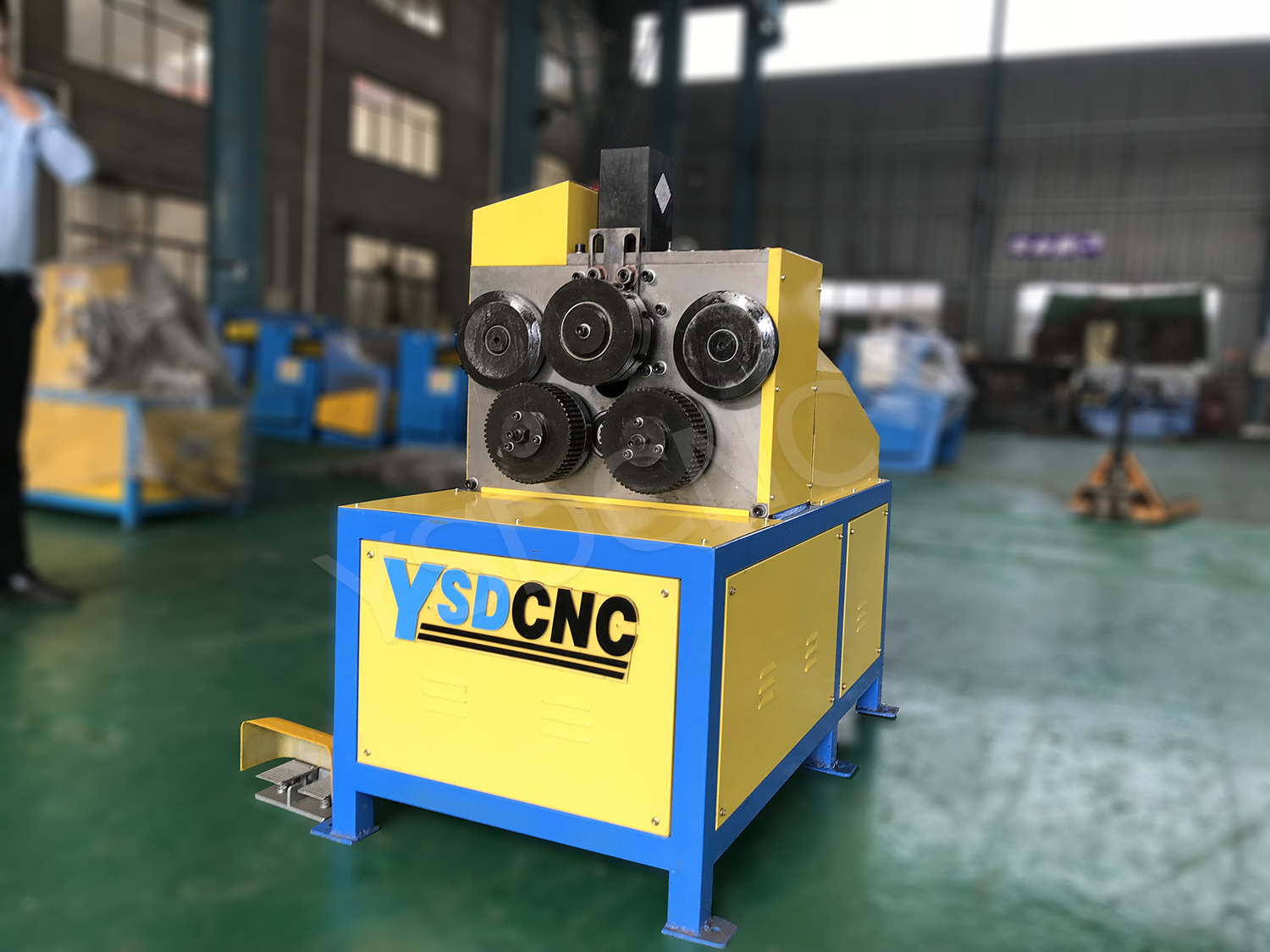

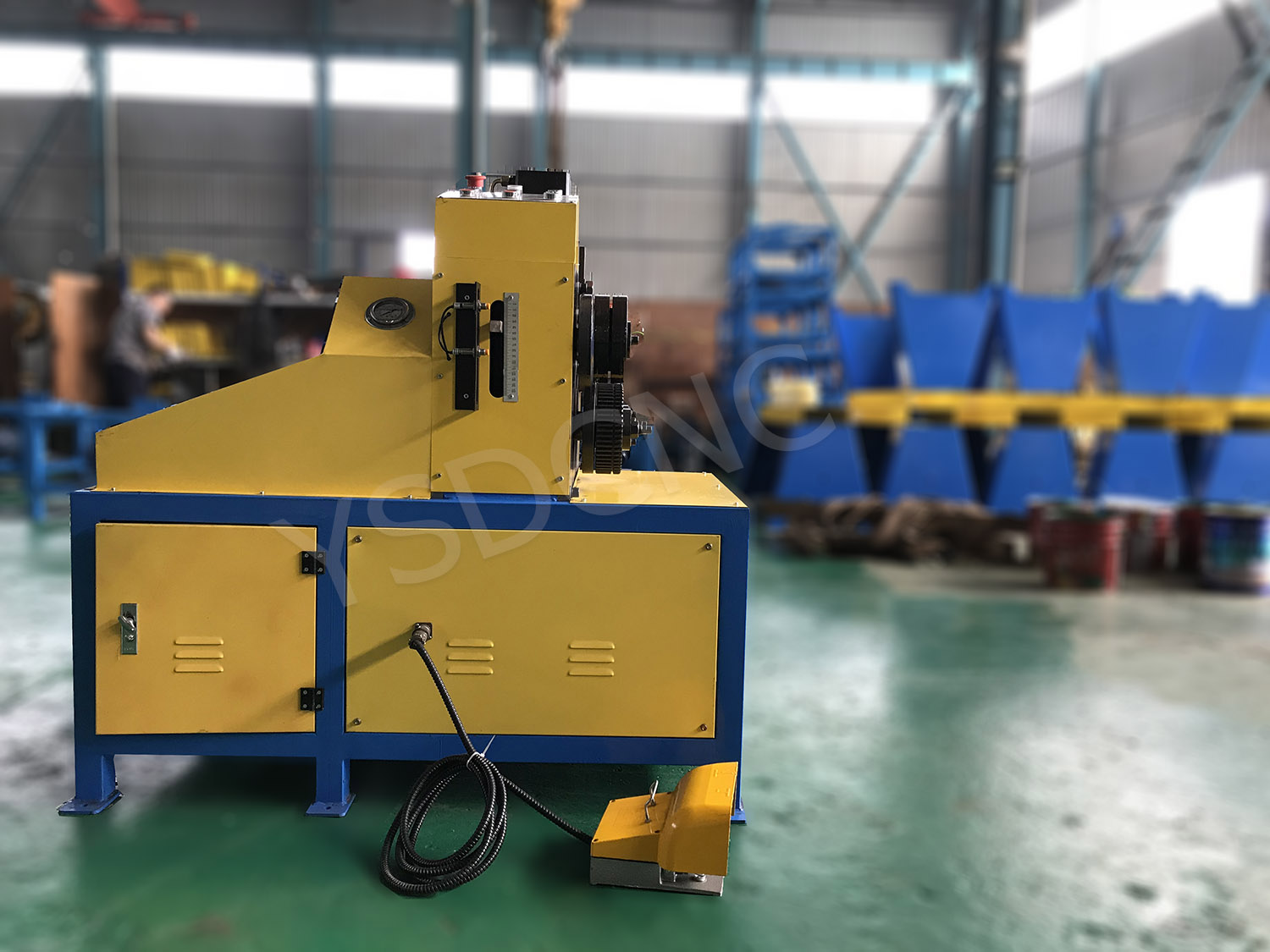

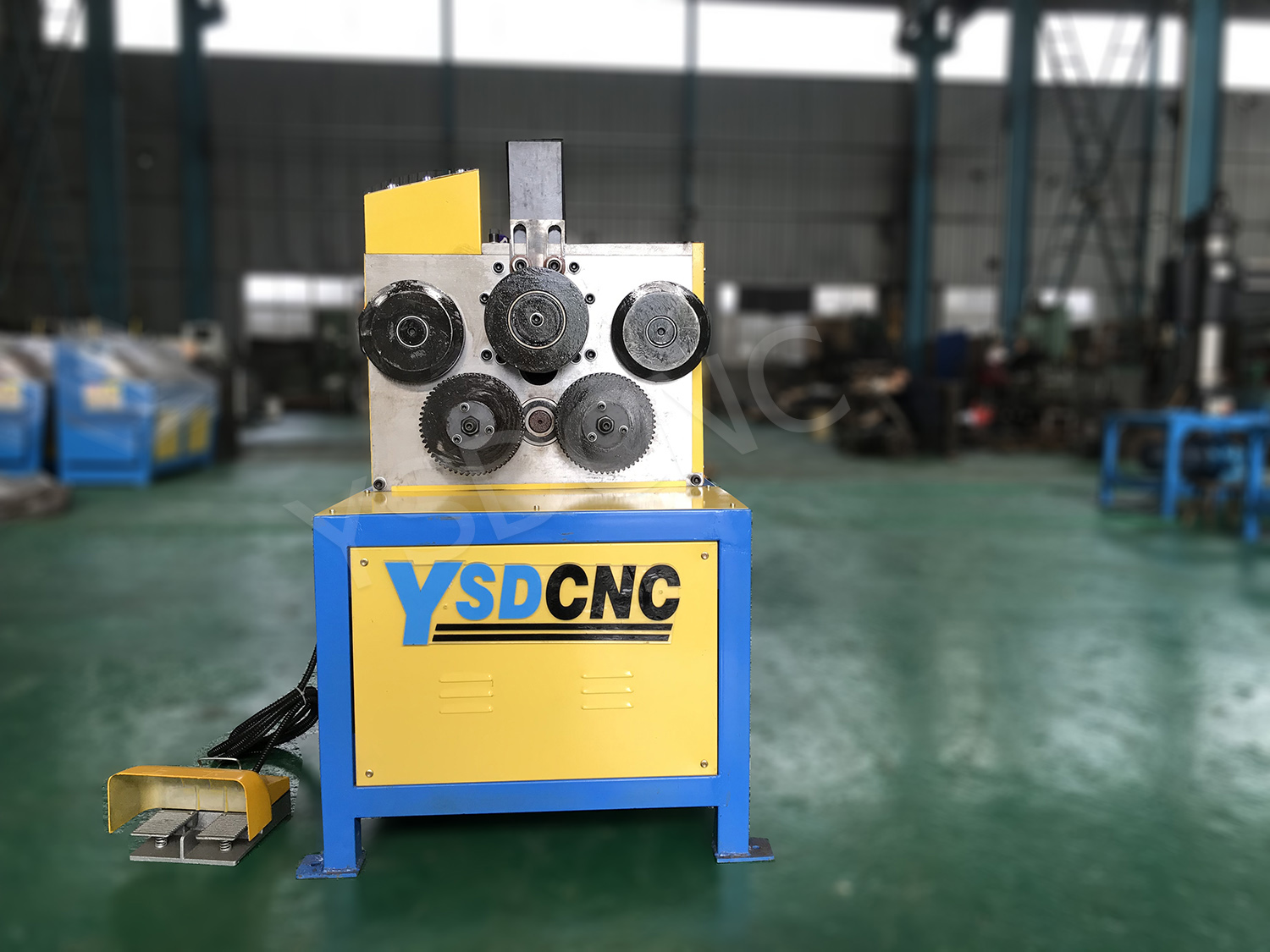

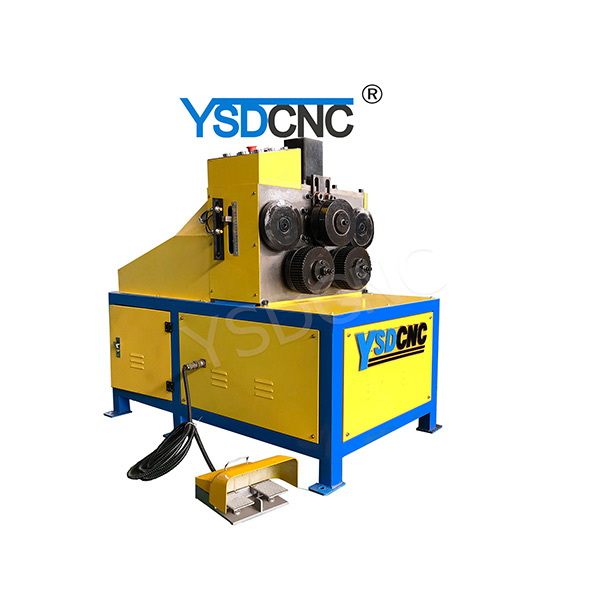

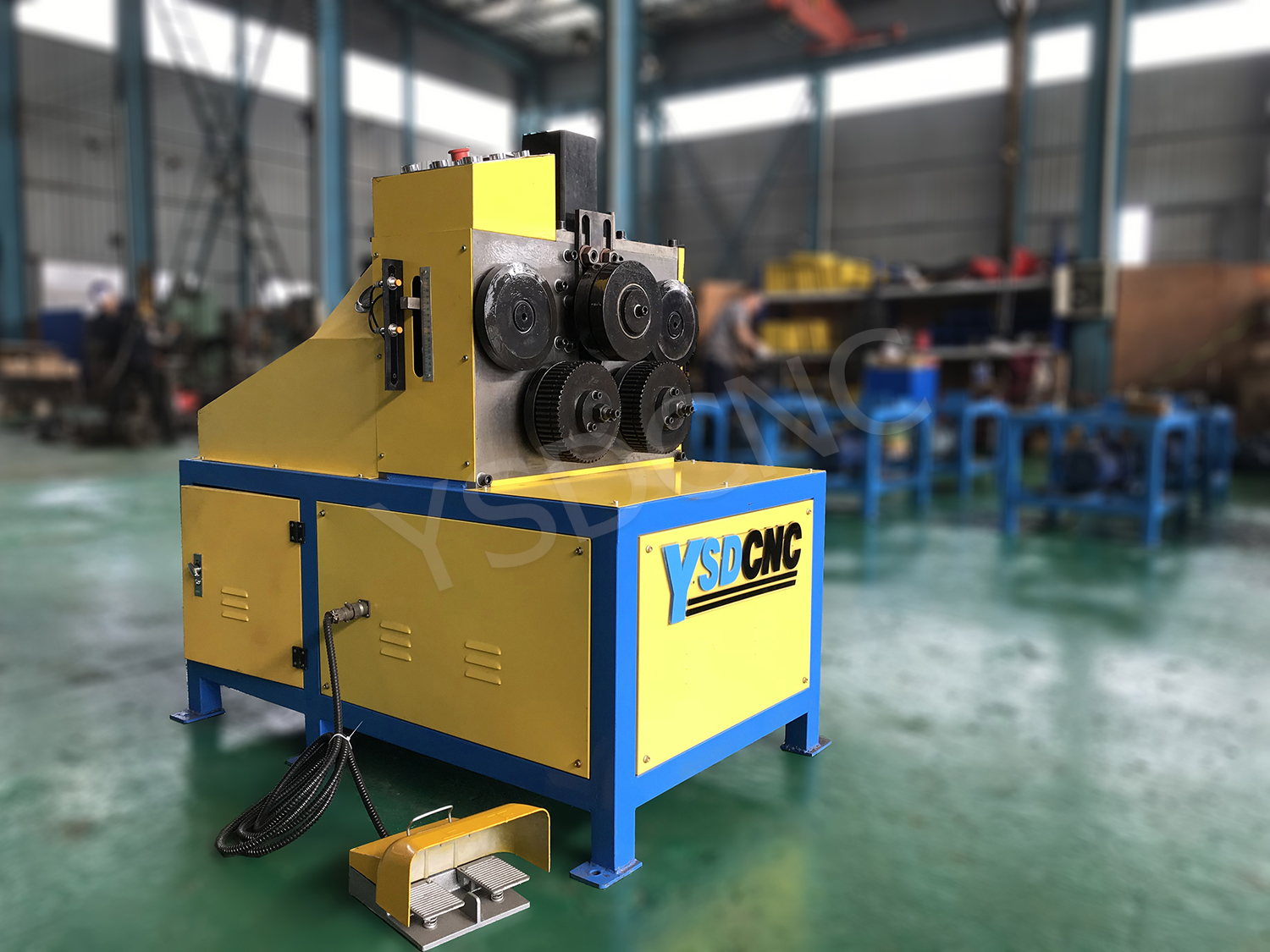

Hydraulic Angle Rolling Machine

5 0 Reviews
Availability:
Quantity:
  • YSDCNC

Features

Performance Features:

YSDCNC Hydraulic Angle crimping machine adopts vertical structure,can be all kinds of Angle concave or convex rolling processing.can also be made according to request of using different roller replacement,the round steel,pipe,square tube,channel steel and other profiles in rolling processing.Is the Angle iron flange making,profiles rolling bending of the ideal equip-ment.It is widely used in construction,decoration,hardware,light industry,chemical industry,etc.


Product Description

23456

Specification

   Tpye                                               Item

Unit

JY-50

JY-60

JY-80

JY-100

JY-120

Yield limit


≤245

≤245

≤245

≤245

≤245

Flat iron angle


L50*5

L60*6

L80*8

L100*10

L120*12

Mini volume Dia

mm

400

400

500

600

800

The roller diameter

mm

170

170

230

320

360

Main motor power

KW

2.2

3

7.5

11

11

Vice motor power

KW

/

3

3

3

3

Type speed reducer


200

200

250

250

250

Dimension

L

mm

1200

120

1200

1200

1200

W

mm

600

700

1000

1000

1000

H

mm

1100

1150

1500

1500

1500

Weight

KG

500

700

1100

1200

1300
