Features
Performance Features:

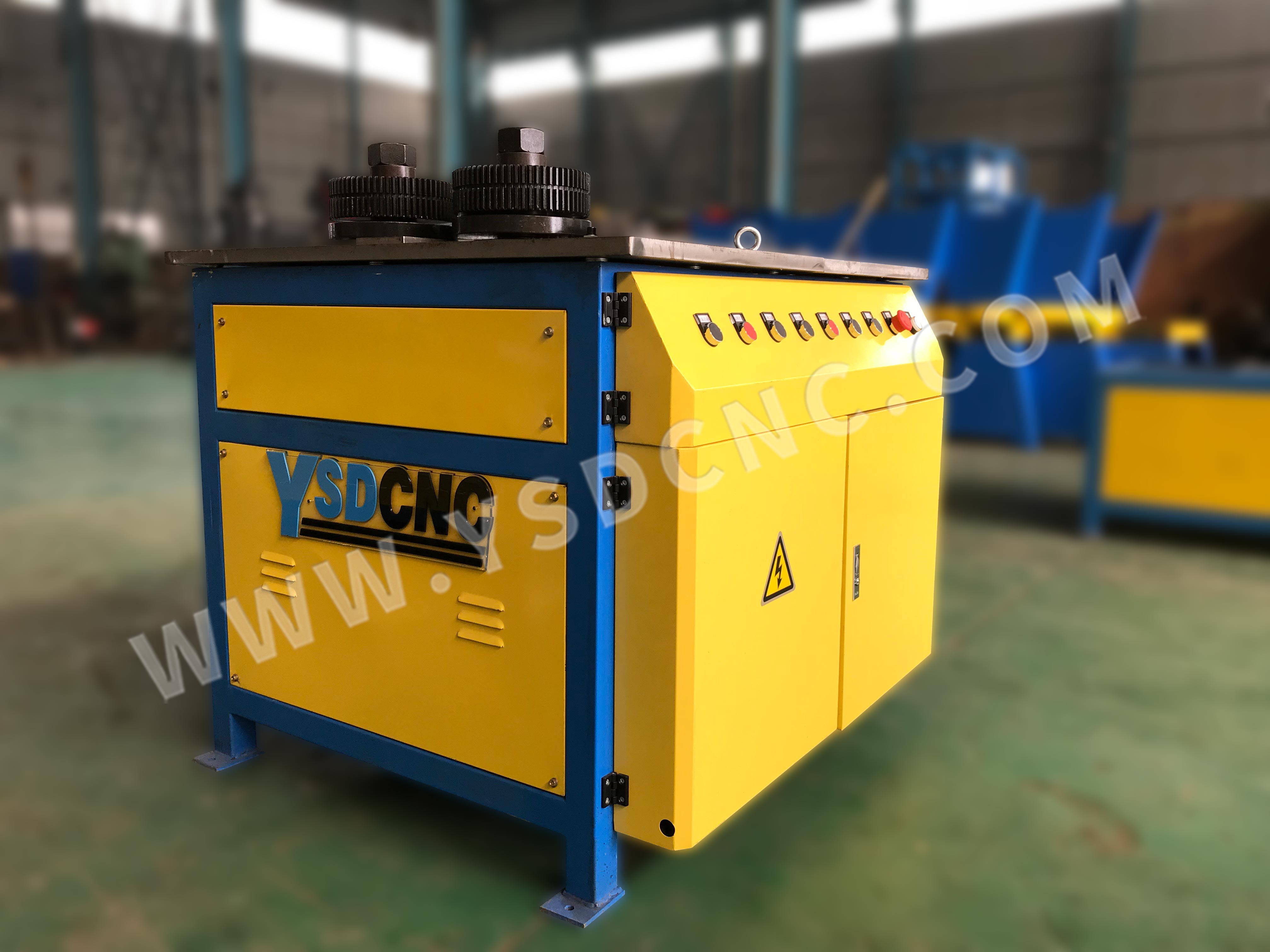

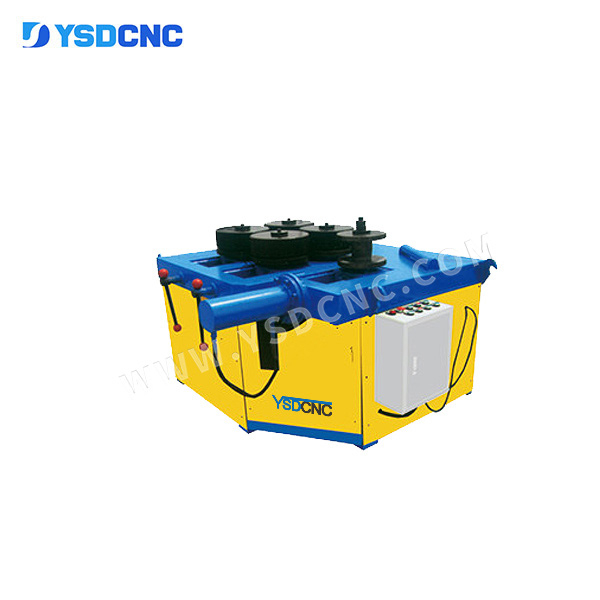

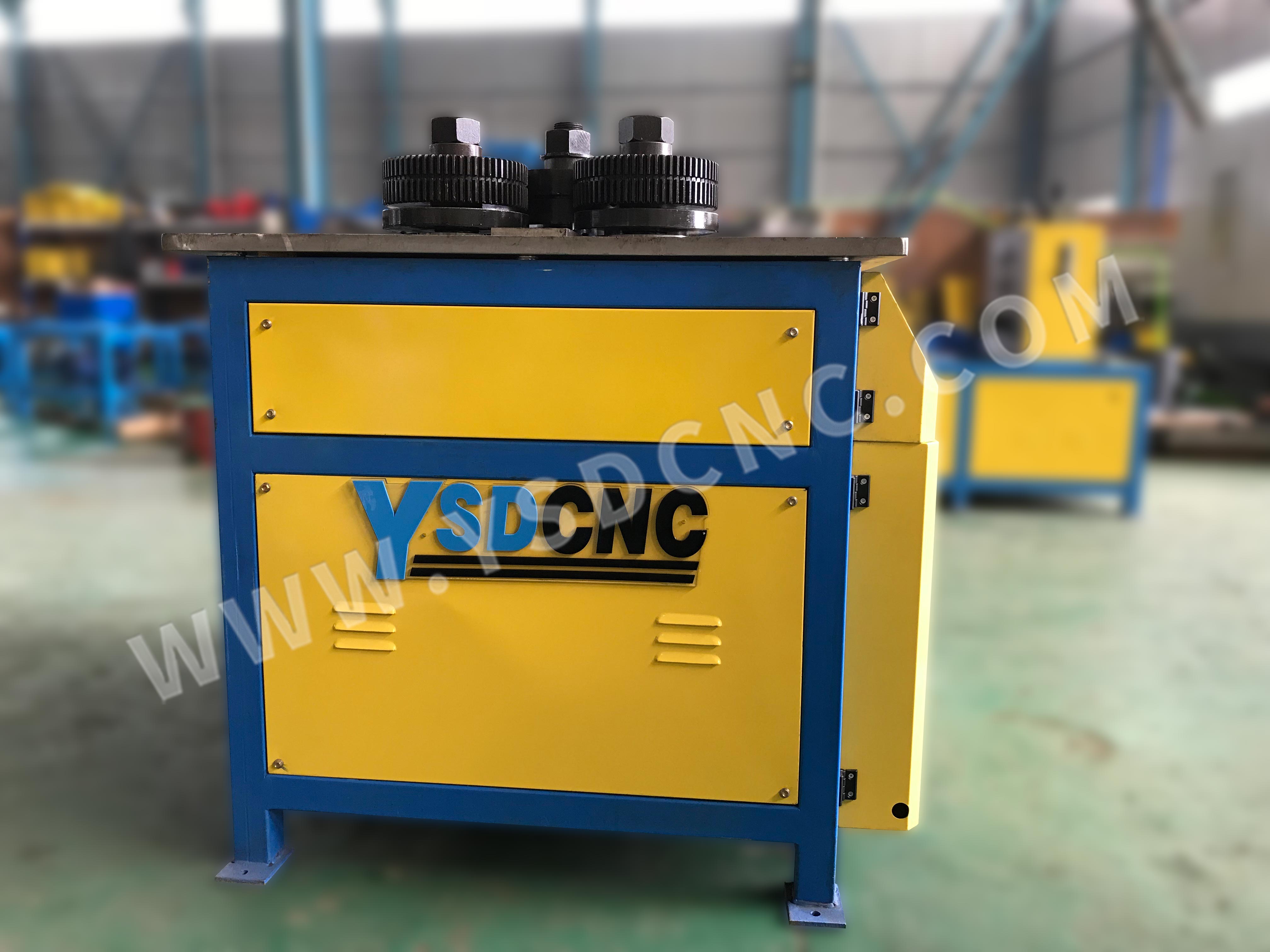

YSDCNC Hydraulic Angle crimping machine adopts vertical structure,can be all kinds of Angle concave or convex rolling processing.can also be made according to request of using different roller replacement,the round steel,pipe,square tube,channel steel and other profiles in rolling processing.Is the Angle iron flange making,profiles rolling bending of the ideal equip-ment.It is widely used in construction,decoration,hardware,light industry,chemical industry,etc.
Product Description
Specification
Unit | JY-50 | JY-60 | JY-80 | JY-100 | JY-120 | ||
Yield limit | ≤245 | ≤245 | ≤245 | ≤245 | ≤245 | ||
Flat iron angle | L50*5 | L60*6 | L80*8 | L100*10 | L120*12 | ||
Mini volume Dia | mm | 400 | 400 | 500 | 600 | 800 | |
The roller diameter | mm | 170 | 170 | 230 | 320 | 360 | |
Main motor power | KW | 2.2 | 3 | 7.5 | 11 | 11 | |
Vice motor power | KW | / | 3 | 3 | 3 | 3 | |
Type speed reducer | 200 | 200 | 250 | 250 | 250 | ||
Dimension | L | mm | 1200 | 120 | 1200 | 1200 | 1200 |
W | mm | 600 | 700 | 1000 | 1000 | 1000 | |
H | mm | 1100 | 1150 | 1500 | 1500 | 1500 | |
Weight | KG | 500 | 700 | 1100 | 1200 | 1300 | |
