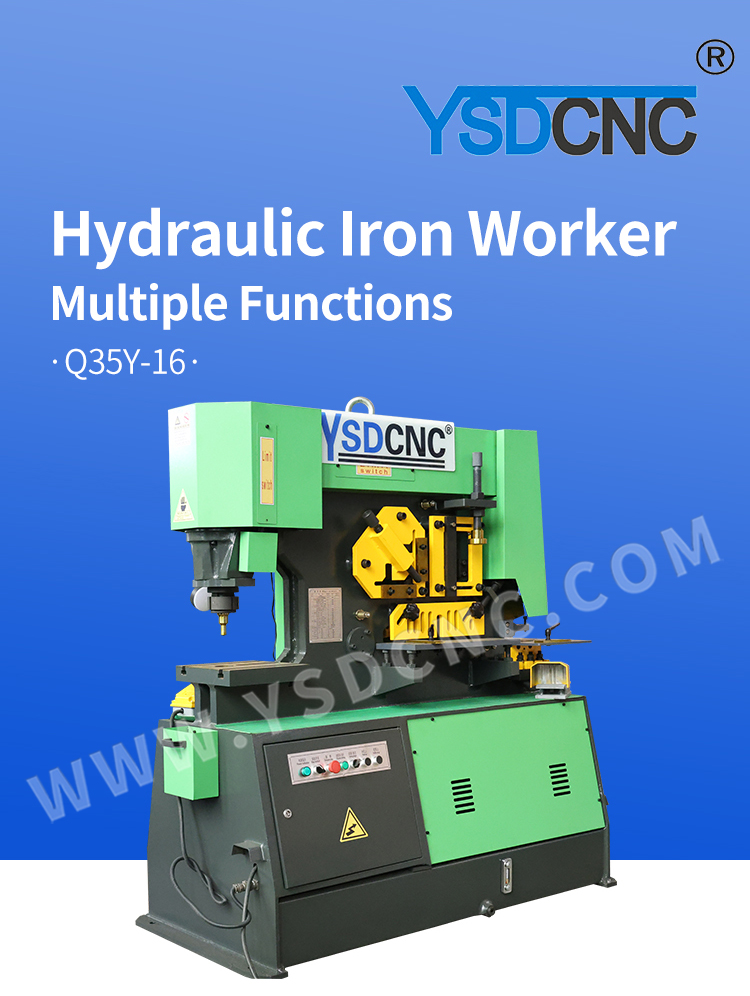

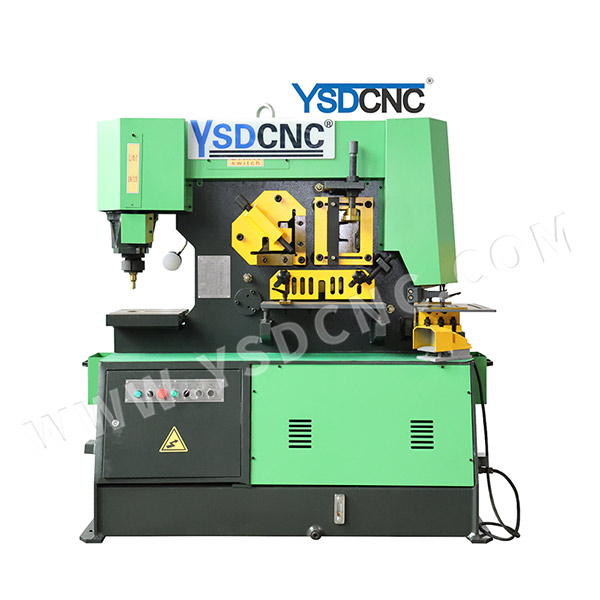

Q35Y-16
YSDCNC

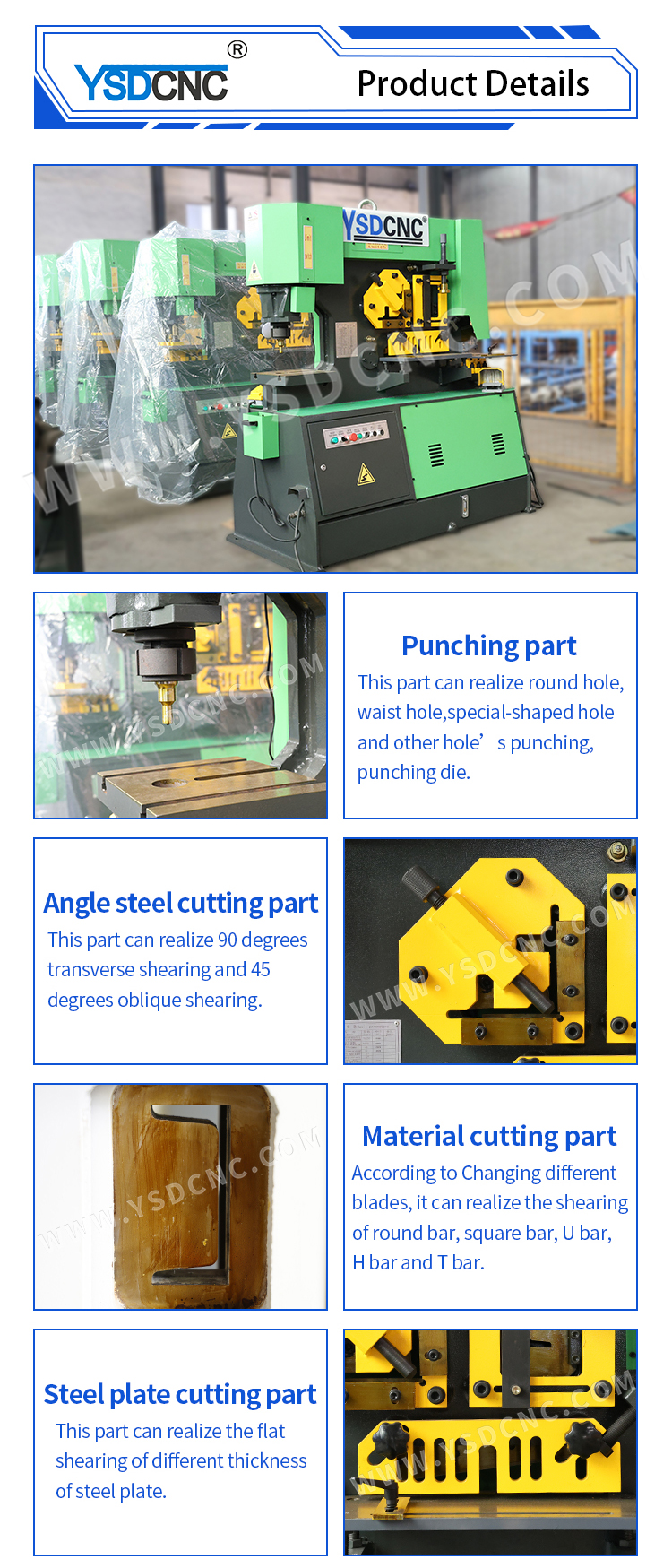

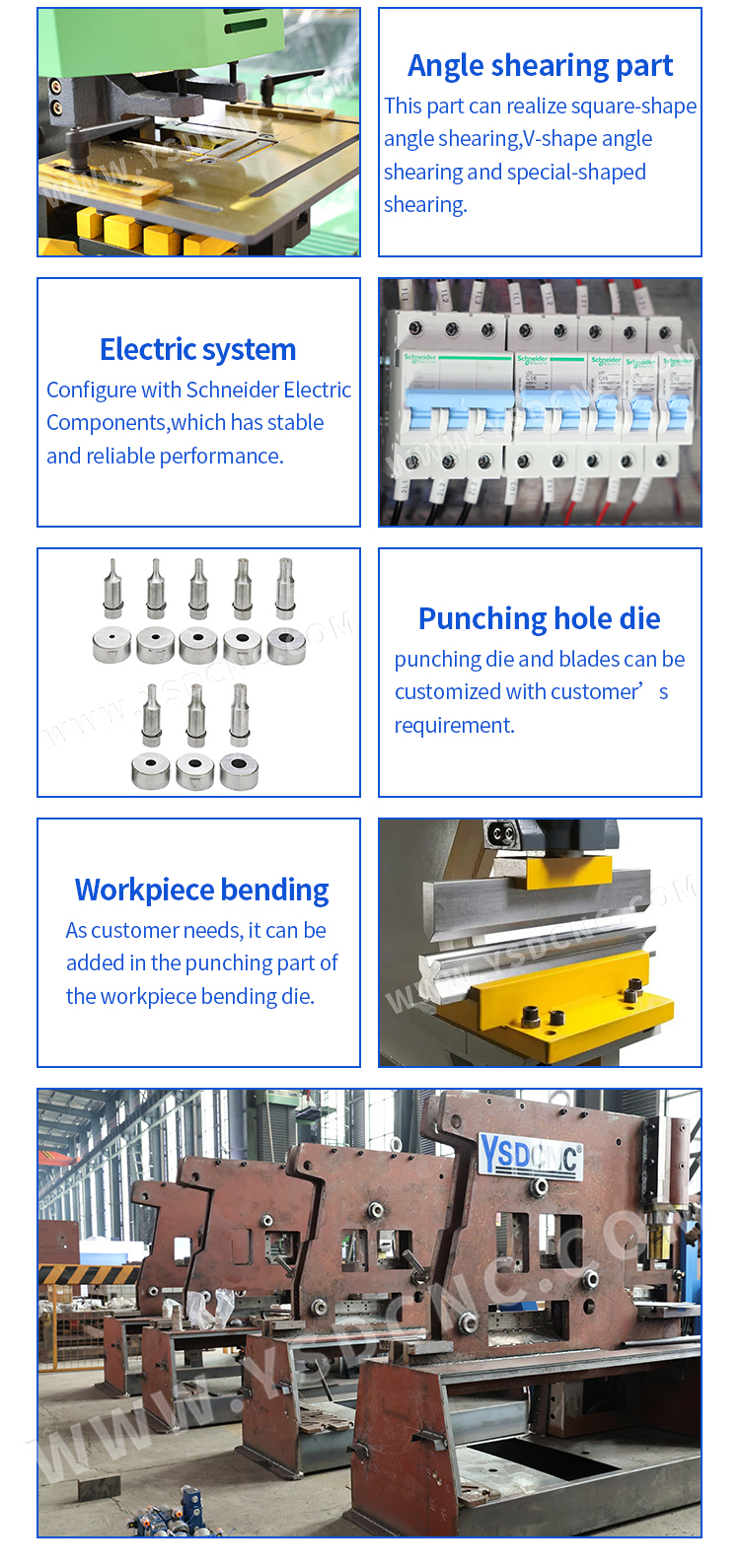

Product Description
Specification
Model | Unit | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | |
Punching Pressure | T | 65 | 90 | 120 | 160 | 200 | |
Cutting angle | ° | 7 | 8 | 8 | 8 | 8 | |
Plate strength | N/mm² | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | |
Slipper stroke | mm | 80 | 80 | 80 | 80 | 100 | |
Travel times | n/min | 11-20 | 12-20 | 8-18 | 6-16 | 6-16 | |
Throat depth | mm | 300 | 355 | 400 | 600 | 600 | |
Main motor power | kw | 5.5 | 7.5 | 11 | 15 | 18.5 | |
A | punching capacity | mm | Ф16*25 | Ф20*30 | Ф25*35 | Ф30*35 | Ф35*38 |
B | Angle steel shearing 90° | mm | 120*120*12 | 140*140*12 | 160*160*14 | 180*180*16 | 200*200*18 |
Angle steel shearing 45° | mm | 70*70*8 | 70*70*10 | 80*80*8 | 80*80*10 | 100*100*10 | |
C | Round steel shearing | mm | Ф45 | Ф50 | Ф60 | Ф65 | Ф70 |
Square steel shearing | mm | 40*40 | 45*45 | 50*50 | 55*55 | 60*60 | |
Channel steel shearing | mm | 126*53*5.5 | 160*63*6.5 | 200*75*9 | 280*86*11.5 | 300*89*12 | |
I-beam shearing | mm | 120*74*5 | 160*86*6 | 200*102*9 | 280*124*10.5 | 300*126*11 | |
T-beam shearing | mm | 125*125*12 | 140*140*12 | 160*160*14 | 180*180*16 | 200*200*18 | |
D | Plane shearing Max.thickness*width | mm | 16*250 | 20*330 | 25*330 | 30*355 | 35*400 |
Plane shearing Max.width*thickness | mm | 400*8 | 480*10 | 600*16 | 600*20 | 700*25 | |
E | Angular shearing | mm | 60*115 | 60*115 | 60*115 | 60*115 | 105*115 |
