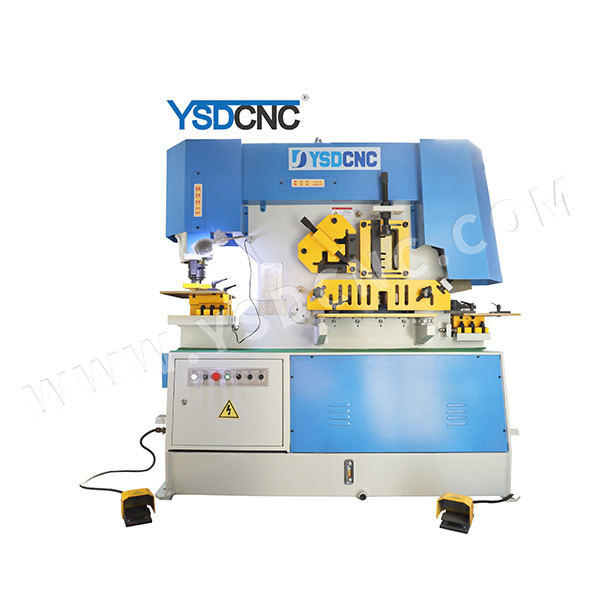

Q35Y-20 Multifunctional Hydraulic Ironworker

5 0 Reviews
1. Hole punching
2. Sheet bending
3. Sheet notching
4. Flat sheet cutting
5. Angle steel cutting
6. Channel steel cutting
7. Louver hole punching
8. Square and round steel cutting
Availability:
Quantity:
  • Q35Y-20

  • YSDCNC

Product Description

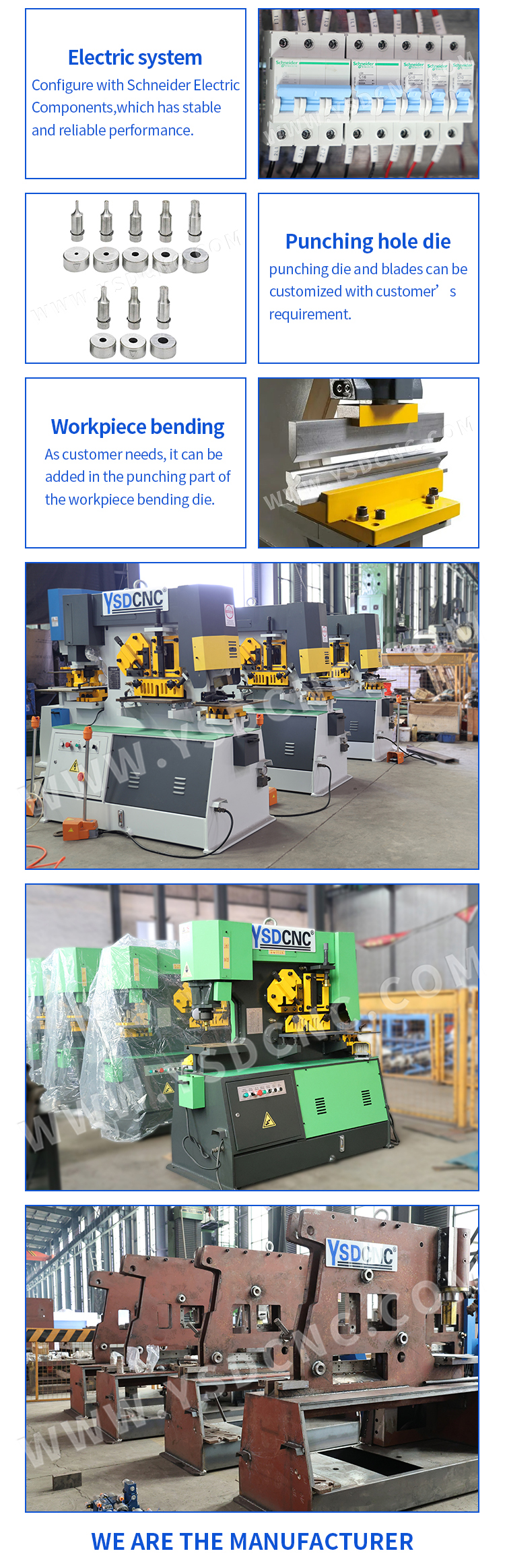

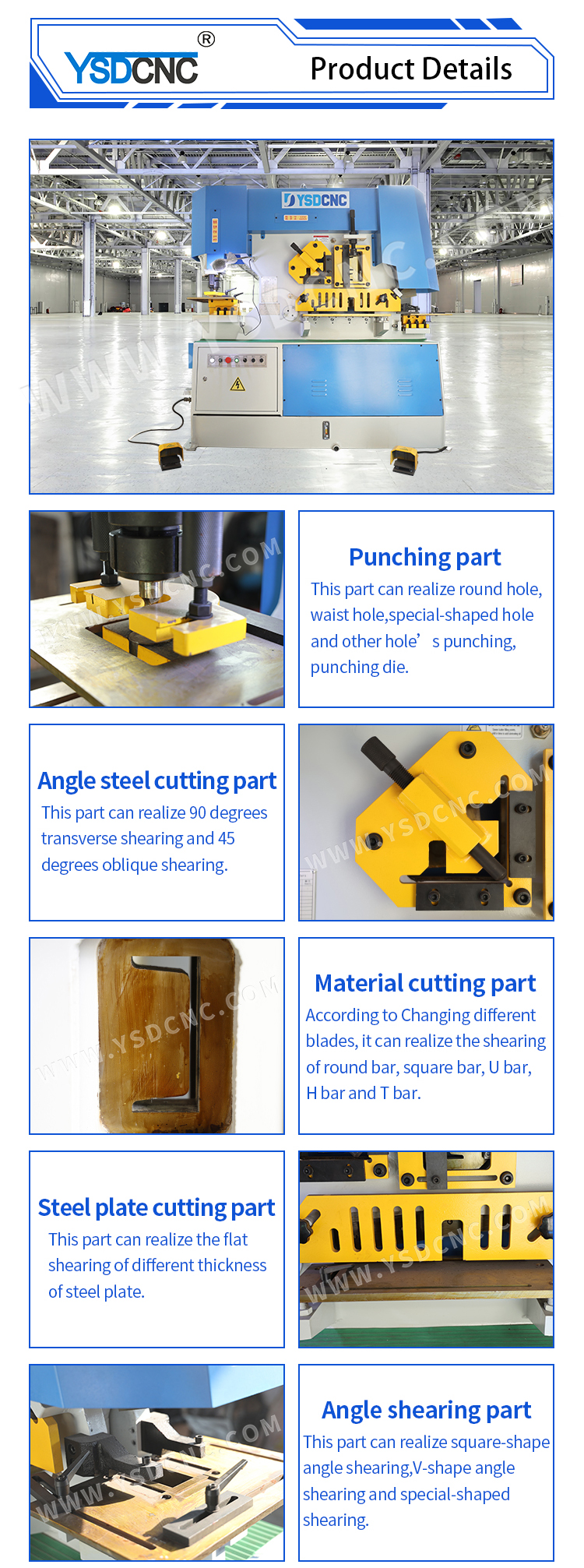

详情页_01详情页_02详情页_03

Specification


Model

Unit

Q35Y-16

Q35Y-20

Q35Y-25

Q35Y-30

Q35Y-40

Punching Pressure

T

65

90

120

160

200

Cutting angle

°

7

8

8

8

8

Plate strength

N/mm²

≤450

≤450

≤450

≤450

≤450

Slipper stroke

mm

80

80

80

80

100

Travel times

n/min

11-20

12-20

8-18

6-16

6-16

Throat depth

mm

300

355

400

600

600

Main motor power

kw

5.5

7.5

11

15

18.5

A

punching capacity

mm

Ф16*25

Ф20*30

Ф25*35

Ф30*35

Ф35*38

B

Angle steel shearing 90°

mm

120*120*12

140*140*12

160*160*14

180*180*16

200*200*18

Angle steel shearing

45°

mm

70*70*8

70*70*10

80*80*8

80*80*10

100*100*10

C

Round steel shearing

mm

Ф45

Ф50

Ф60

Ф65

Ф70

Square steel shearing

mm

40*40

45*45

50*50

55*55

60*60

Channel steel shearing

mm

126*53*5.5

160*63*6.5

200*75*9

280*86*11.5

300*89*12

I-beam shearing

mm

120*74*5

160*86*6

200*102*9

280*124*10.5

300*126*11

T-beam shearing

mm

125*125*12

140*140*12

160*160*14

180*180*16

200*200*18

D

Plane shearing

Max.thickness*width

mm

16*250

20*330

25*330

30*355

35*400

Plane shearing

Max.width*thickness

mm

400*8

480*10

600*16

600*20

700*25

E

Angular shearing

mm

60*115

60*115

60*115

60*115

105*115
