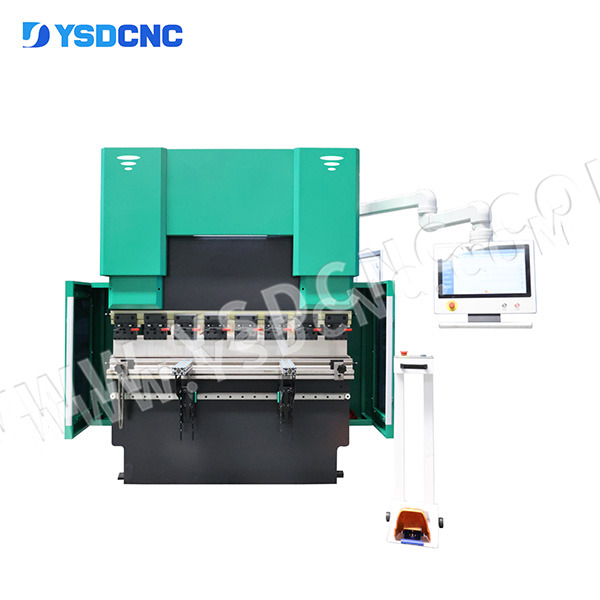

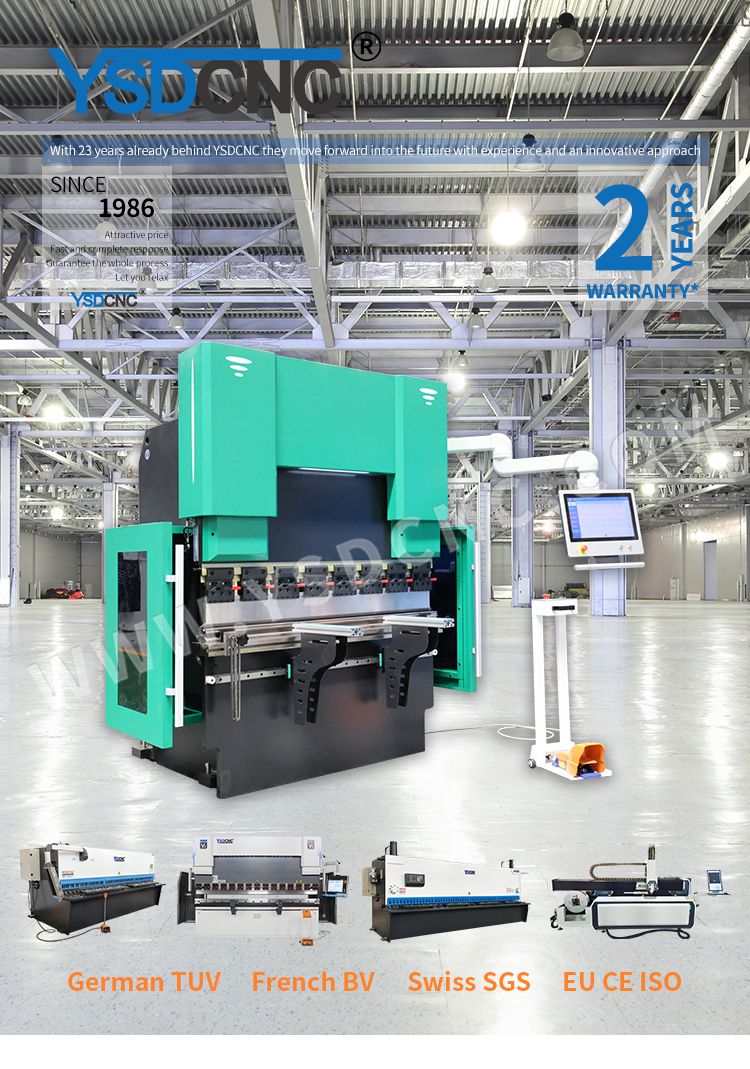

EL 19T 80ton 2000
YSDCNC
Features
YSDCNC the new compact EL19T adds a state-of-the.art complete touch control solution for synchronizedpress brakes.Offering easiest CNC programming basedon the Delem graphical touch screen user interface.This panel based control, standard capable of controlling up to 4 axes, can be integrated in cabinets as well as used in an optional pendulant arm housing Its 10.1" wide screen high resolution colour TFT, with industrial grade multi touch technology, gives access to the proven Delem user-interface. lt enables direct“hot-key” touch navigation between product programming and actual production. Functions are located where needed, offering optimised ergonomics
throughout the entire application.
Product Description
Specification
Model | Nominal Force | Worktable Length | Poles Distance | Throat Depth | Slider Travel | Max Opening height | Power | Dimension |
(KN) | (mm) | (mm) | (mm) | (mm) | (mm) | (KW) | L*W*H(mm) | |
40T/2200 | 400 | 2200 | 1875 | 230 | 100 | 320 | 5.5 | 2200*1200*1910 |
40T/2500 | 400 | 2500 | 1875 | 230 | 100 | 320 | 5.5 | 2500*1200*1910 |
50T/2500 | 500 | 2500 | 1875 | 230 | 100 | 320 | 5.5 | 2500*1210*2000 |
63T/2500 | 630 | 2500 | 2020 | 250 | 100 | 320 | 5.5 | 2500*1300*2210 |
63T/3200 | 360 | 3200 | 2575 | 250 | 100 | 320 | 5.5 | 3200*1300*2210 |
80T/2500 | 800 | 2500 | 2020 | 300 | 100 | 320 | 7.5 | 2500*1400*2300 |
80T/3200 | 800 | 3200 | 2590 | 320 | 100 | 350 | 7.5 | 3200*1500*2300 |
80T/4000 | 800 | 4000 | 3050 | 320 | 100 | 350 | 7.5 | 4000*1500*2400 |
100T/2500 | 1000 | 2500 | 2020 | 320 | 120 | 320 | 7.5 | 2500*1600*2400 |
100T/3200 | 1000 | 3200 | 2600 | 320 | 120 | 370 | 7.5 | 3200*1600*2600 |
100T/4000 | 1000 | 4000 | 3050 | 320 | 120 | 370 | 7.5 | 4000*1600*2700 |
125T/3200 | 1250 | 3200 | 2600 | 320 | 120 | 370 | 7.5 | 3200*1600*2600 |
125T/4000 | 1250 | 4000 | 3050 | 320 | 120 | 370 | 7.5 | 4000*1600*2700 |
160T/3200 | 1600 | 3200 | 2600 | 320 | 200 | 460 | 11 | 3200*1700*2700 |
160T/4000 | 1600 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000*1700*2800 |
160T/5000 | 1600 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000*1900*3100 |
160T/6000 | 1600 | 6000 | 4940 | 320 | 200 | 460 | 11 | 6000*1900*3200 |
200T/3200 | 2000 | 3200 | 2600 | 320 | 200 | 460 | 11 | 3200*1950*2800 |
200T/4000 | 2000 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000*1950*2800 |
200T/5000 | 2000 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000*1950*3000 |
200T/6000 | 2000 | 6000 | 5000 | 320 | 200 | 460 | 11 | 6000*1950*3300 |
250T/3200 | 2500 | 3200 | 2500 | 400 | 250 | 590 | 18.5 | 3200*2000*3200 |
250T/4000 | 2500 | 4000 | 3000 | 400 | 250 | 590 | 18.5 | 4000*2000*3400 |
250T/5000 | 2500 | 5000 | 4000 | 400 | 250 | 590 | 18.5 | 5000*2000*3400 |
250T/6000 | 2500 | 6000 | 5000 | 400 | 250 | 590 | 18.5 | 6000*2000*3400 |
300T/3200 | 3000 | 3200 | 2530 | 400 | 250 | 590 | 22 | 3200*2000*3450 |
300T/4000 | 3000 | 4000 | 3470 | 400 | 250 | 590 | 22 | 4000*2000*3450 |
300T/5000 | 3000 | 5000 | 4000 | 400 | 250 | 590 | 22 | 5000*2000*3450 |
300T/6000 | 3000 | 6000 | 5000 | 400 | 250 | 590 | 22 | 6000*2000*3450 |
400T/4000 | 4000 | 4000 | 3000 | 400 | 250 | 590 | 30 | 4000*2180*3400 |
400T/5000 | 4000 | 5000 | 4000 | 400 | 250 | 590 | 30 | 5000*2180*3500 |
400T/6000 | 4000 | 6000 | 5000 | 400 | 250 | 590 | 30 | 6000*2180*3800 |
