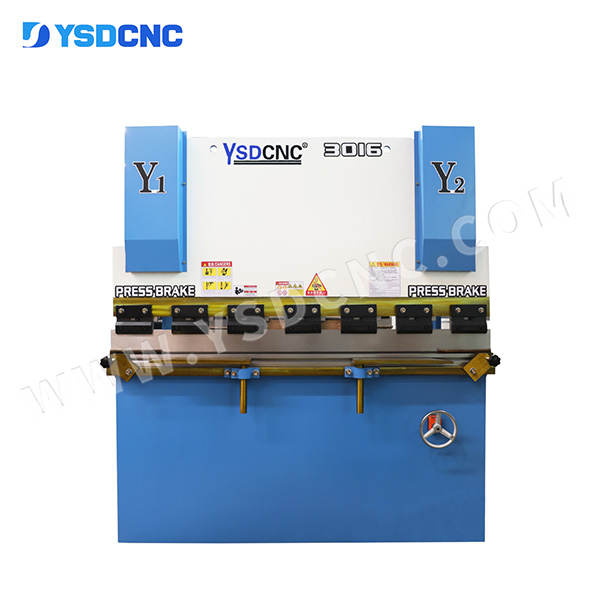

WC67K 30TON1600 Metal Iron Plate NC Hydraulic Press Brake Machine

5 0 Reviews

Availability:

Quantity:



Inquire Add to Basket

Model:
手动折弯机 30ton 1600
Brand:
YSDCNC

Features

1. Overall welding structure: The fuselage is usually welded with high-strength steel and tempered to reduce internal stress, enhance structural strength and rigidity, and ensure long-term working stability of the equipment.

2. Hydraulic transmission system: The use of hydraulic transmission makes the machine more stable during operation, while reducing the wear and failure probability of mechanical transmission and improving the durability of the machine.

3. Synchronous control system: The torsion axis system is usually used for synchronous control to ensure the synchronization accuracy of both sides, thereby improving the bending quality.

4. Accurate back gauge system: The back gauge is equipped with a ball screw and a linear guide rail, which can achieve high-precision positioning. Some equipment also supports automatic adjustment and multi-axis control to meet different processing needs.

5. Diversity of molds: The upper and lower molds of different specifications and shapes can be replaced to meet the bending needs of plates of different thicknesses and shapes.

The hydraulic sheet metal bending machine has the following advantages, making it an efficient and reliable equipment choice in the sheet metal processing industry:

1. High-precision bending: The precise control of the hydraulic system and the CNC system makes the bending accuracy higher, meets the processing requirements of complex workpieces, and reduces the scrap rate and rework rate.

2. Structural stability: The whole machine is welded, and the internal stress is eliminated through heat treatment, so that the machine can still maintain stability during long-term use, and reduce the impact of vibration on processing accuracy.

3. Powerful processing capacity: The hydraulic bending machine has a high bending capacity and can process thicker plates, which is suitable for bending needs of various materials and thicknesses.

4. Versatility: The equipment can perform single bending, multiple bending, and complex shape processing, adapt to different types of processing tasks, and has a wide range of applications.

5. Easy operation: Equipped with a CNC system and a user-friendly interface, the operator can master it after simple training, saving human resources and suitable for mass production.

6. Efficient energy utilization: The hydraulic transmission system is well designed, with less energy loss, which improves the energy utilization efficiency of the equipment and reduces operating costs.

7. Easy to maintain: The hydraulic system is relatively simple, and the components are easy to replace and maintain, reducing downtime and repair costs and ensuring production continuity.

Product Description

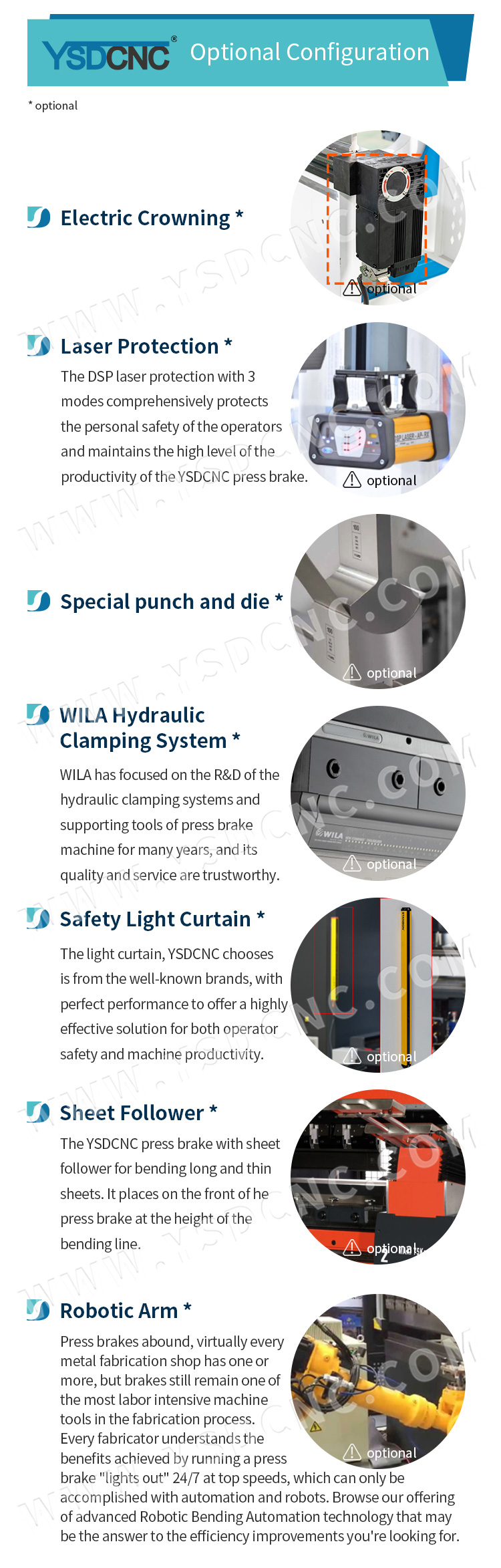

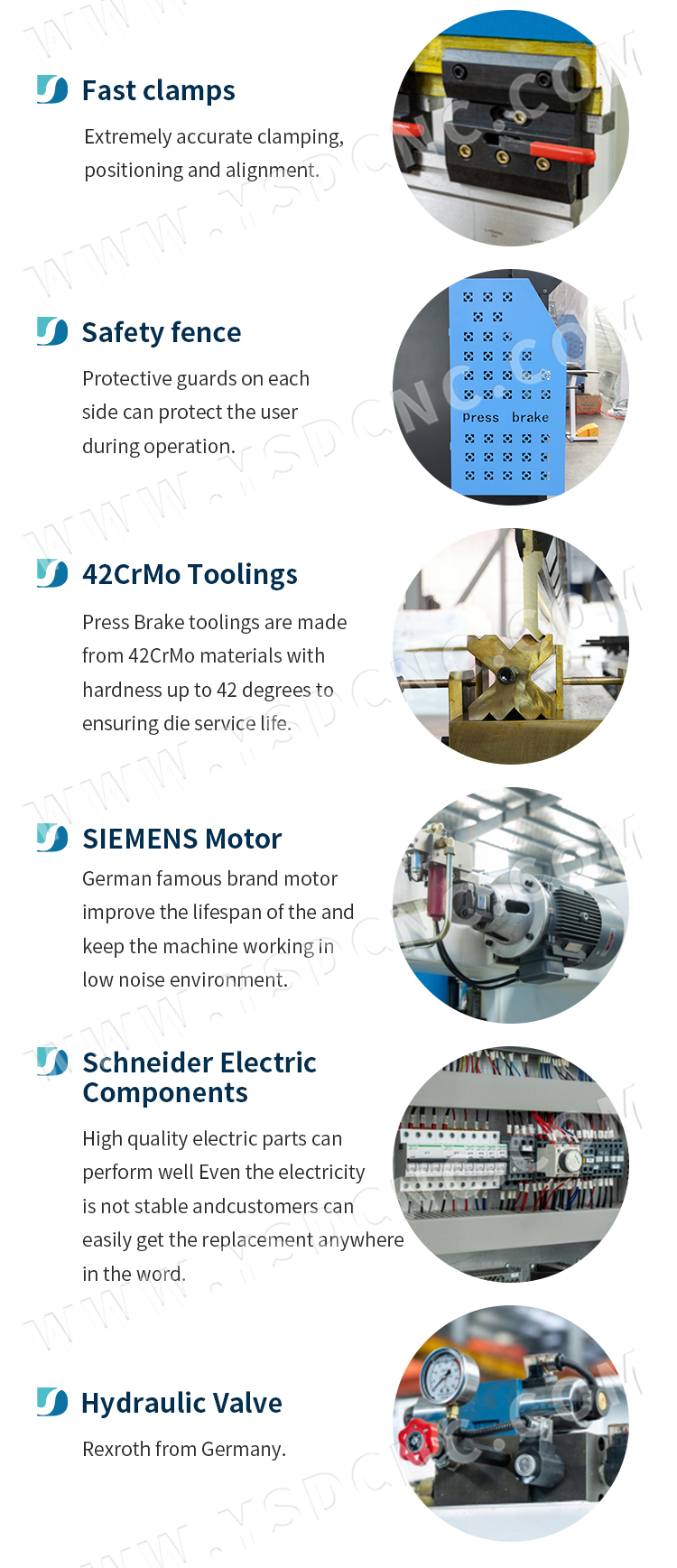

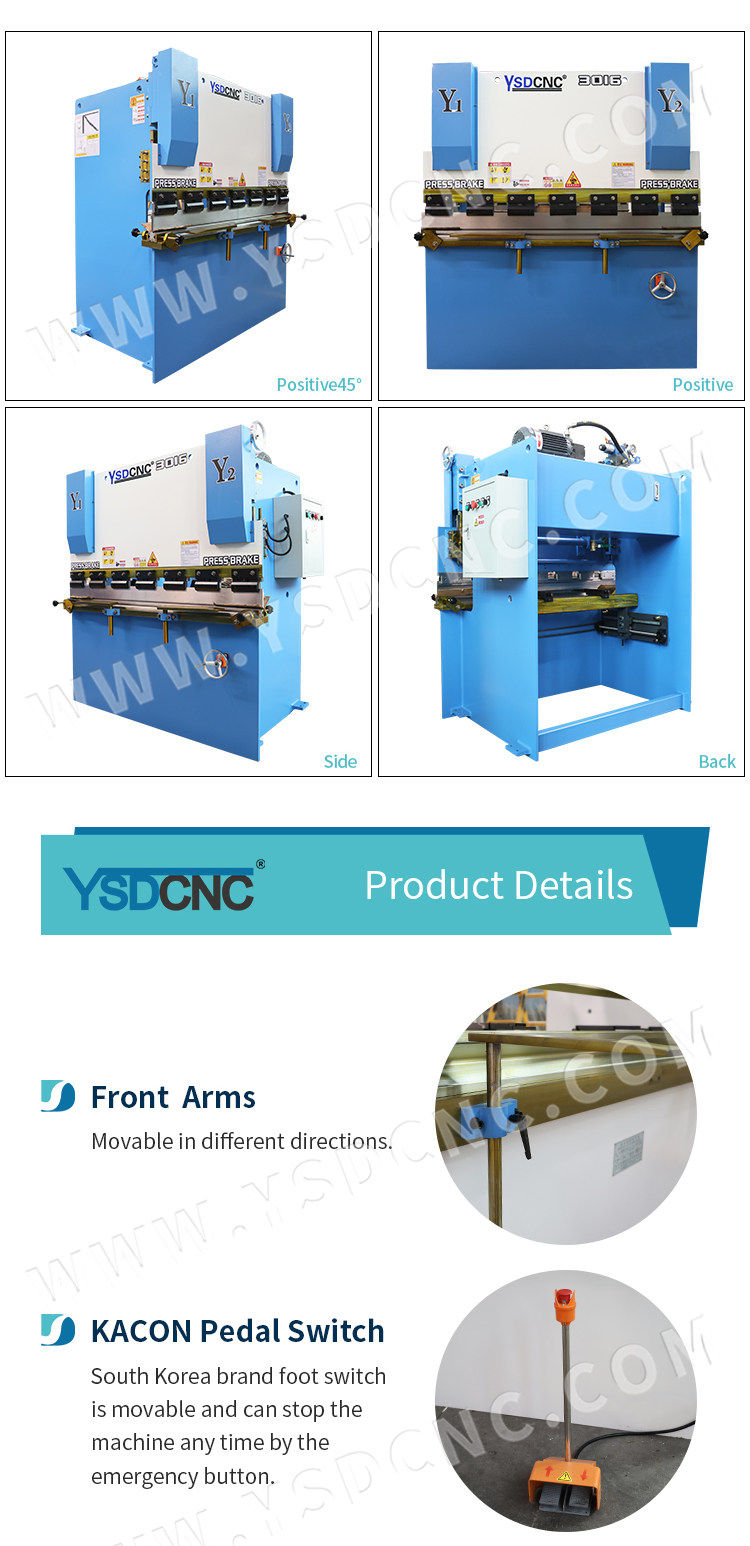

详情页1 详情页2 详情页3 详情页4

Specification

Model		63T/1500	63T/2500	110T/3200	100T/4000	125T/3200	125T/4000	160T/3200	160T/4000	250T/3200	250T/4000
Bending Length	mm	1500	2500	3200	4200	3200	4000	3200	4000	3200	4000
Bending Capacity	KN	630	630	1100	1100	1250	1250	1600	1600	2500	2500
Column Distance	mm	1100	2060	2700	3300	2700	3300	2700	3300	2700	3300
Gap	mm	370	370	400	400	400	400	400	400	400	400
Daylight Opening	mm	350	350	400	400	400	400	400	400	400	400
Stroke	mm	200	200	200	200	200	200	200	200	200	200
Table Height	mm	880	880	880	880	880	880	880	880	880	880
Table Width	mm	150	150	200	200	200	200	200	200	200	200
Fast Approach Speed	mm/s	200	200	200	200	200	200	200	200	200	200
Max. Bending Speed	mm/s	10	10	10	10	10	10	10	10	10	10
Return Speed	mm/s	160	160	160	160	160	160	140	140	140	140
Motor Power	KW	5.5	5.5	7.5	7.5	11	11	11	11	15	15
Length	mm	1825	2825	3500	4500	3500	4500	3500	4500	3500	4500
Width	mm	1650	1650	1650	1650	1650	1650	1650	1650	1730	1730
Height	mm	2600	2430	2540	2540	2540	2540	2580	2580	2580	2580
Weight	kg	4600	5600	8000	950	8500	90000	10000	12000	15000	17000

Model		300T/3200	300T/4000	300T/5000	400T/4000	400T/5000	400T/6000	500T/4000	500T/5000	500T/6000	600T/6000
Bending Length	mm	3200	4000	5000	4000	5000	6000	4000	5000	6000	6000
Bending Capacity	KN	3000	3000	3000	4000	4000	4000	5000	5000	5000	6000
Column Distance	mm	2600	3150	4050	3150	4050	5050	3050	4050	5050	5050
Gap	mm	400	400	400	400	400	400	400	400	400	400
Daylight Opening	mm	400	400	400	400	400	400	610	610	610	650
Stroke	mm	200	200	200	320	320	320	320	320	320	320
Table Height	mm	880	880	880	880	880	880	990	990	990	990
Table Width	mm	250	250	250	250	250	250	300	300	300	300
Fast Approach Speed	mm/s	80	80	80	80	80	80	75	75	75	80
Max. Bending Speed	mm/s	8	8	8	8	8	8	8	8	8	8
Return Speed	mm/s	85	85	85	80	80	80	75	75	75	80
Motor Power	KW	18.5	18.5	18.5	30	30	30	37	37	37	40
Length	mm	3300	4300	5300	4300	5300	6400	4500	5500	6500	6500
Width	mm	1950	1950	1950	2100	2100	2100	2700	2700	2700	2700
Height	mm	2670	2670	2620	3100	3100	3170	5000	5000	5000	5000
Weight	kg	20000	22000	26000	27000	32000	38000	40000	45000	55000	65000
