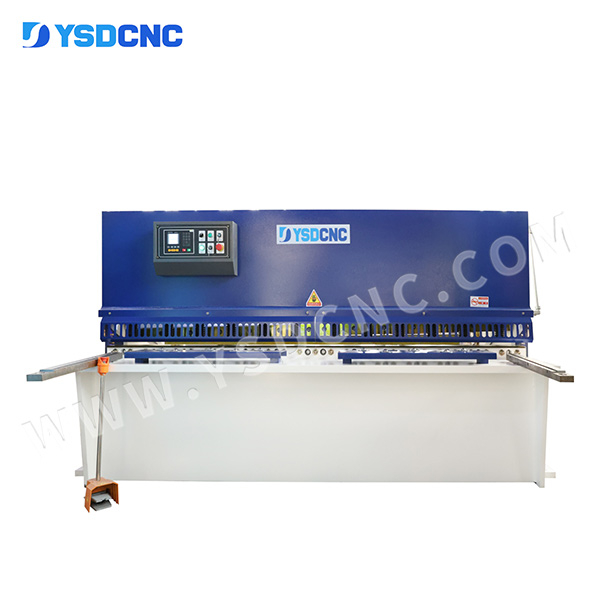

QC12K 6x2500 CNC Hydraulic Swing Beam Shearing Machine with NC E21S

5 0 Reviews

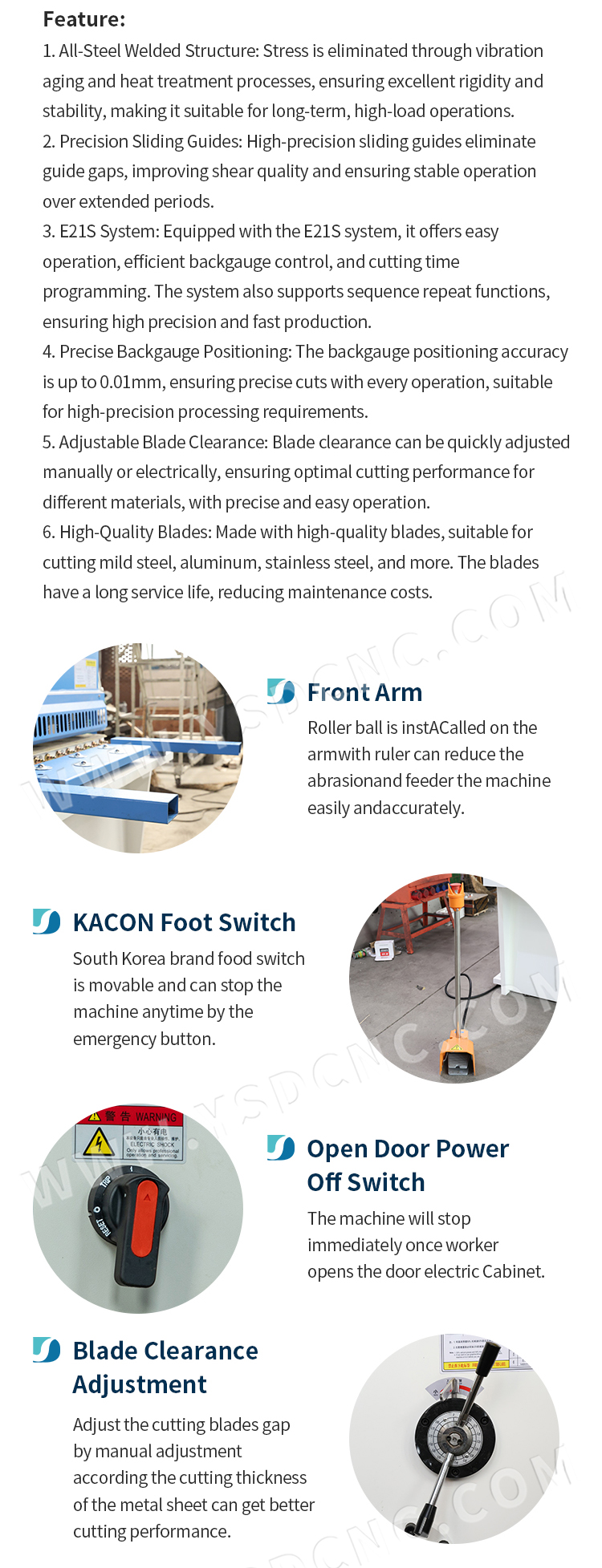

1. Accurate backgauge positioning upto 0.01mm
2. Swing beam shear with Backgauge retraction function

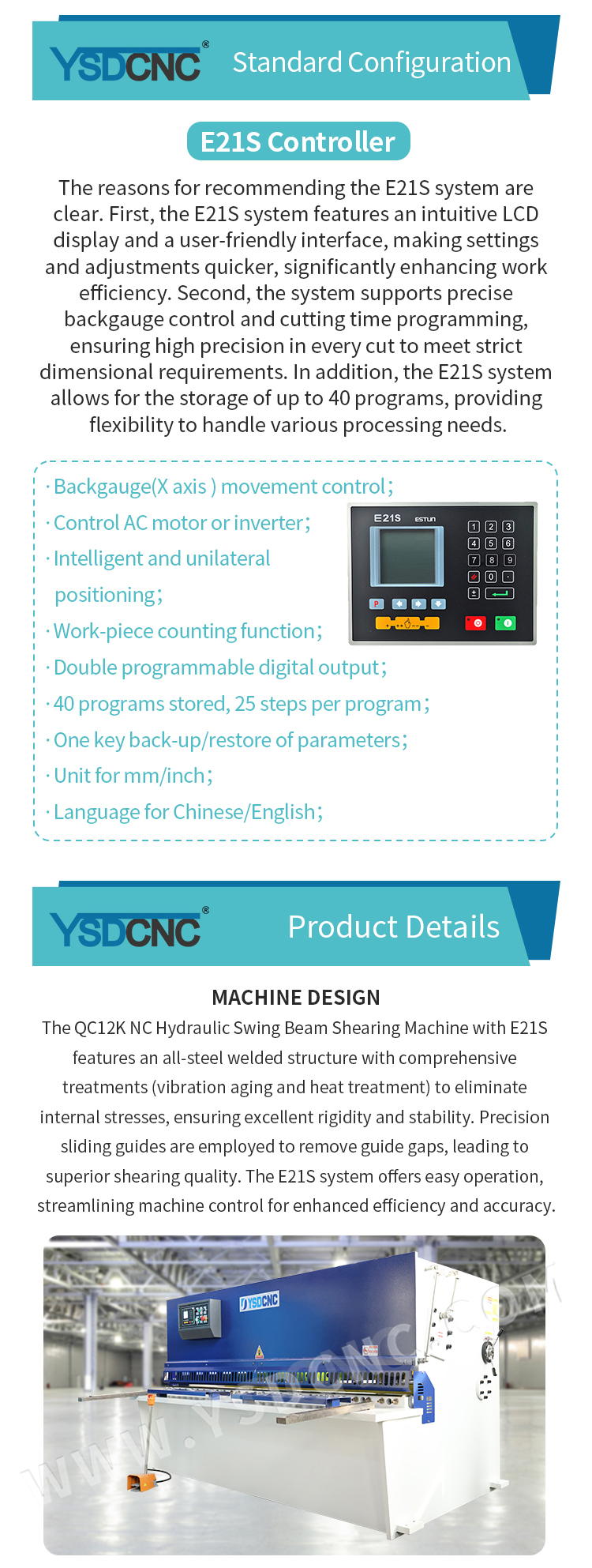

3. E21S NC Controller with sequence repeat function
4. Quick blade clearance adjustment with manual handle shank

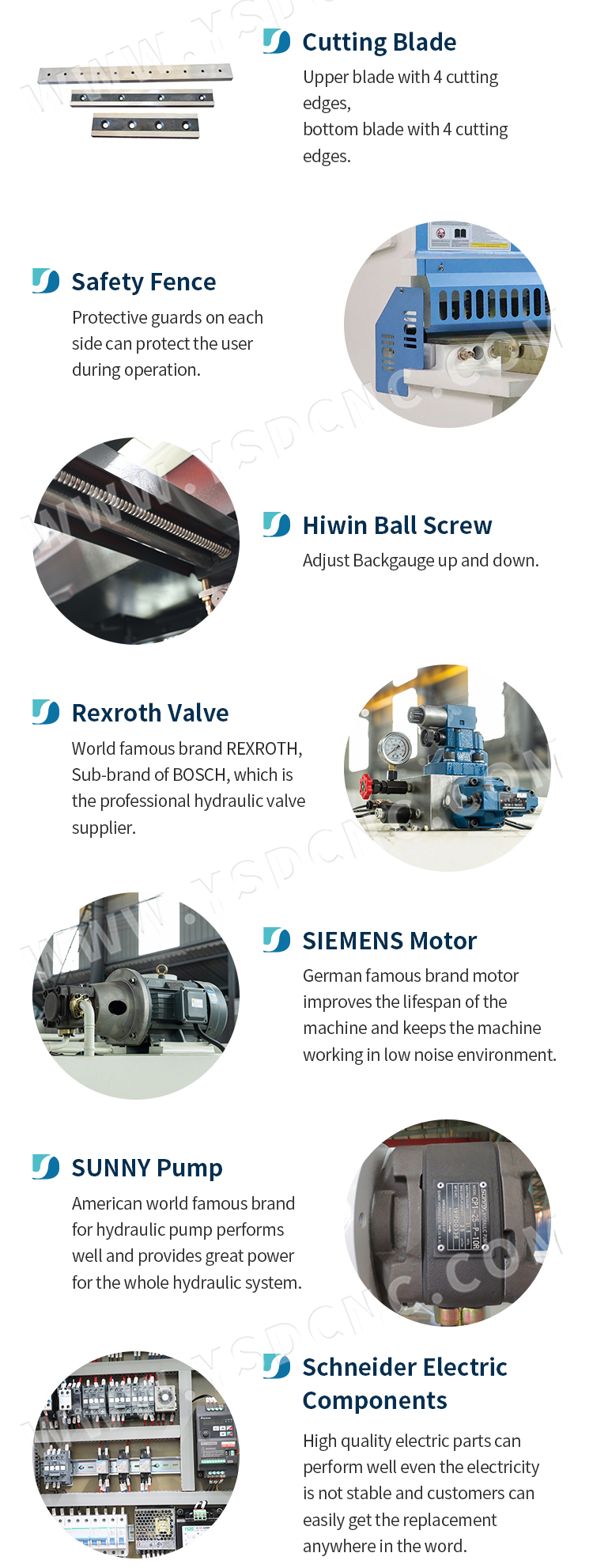

5. High quality blades for cutting mild steel, aluminium, stainless steel

Availability:

Quantity:



Inquire Add to Basket

Model:
Swing Beam Shearing Machine 6*2500
Brand:
YSDCNC

Features

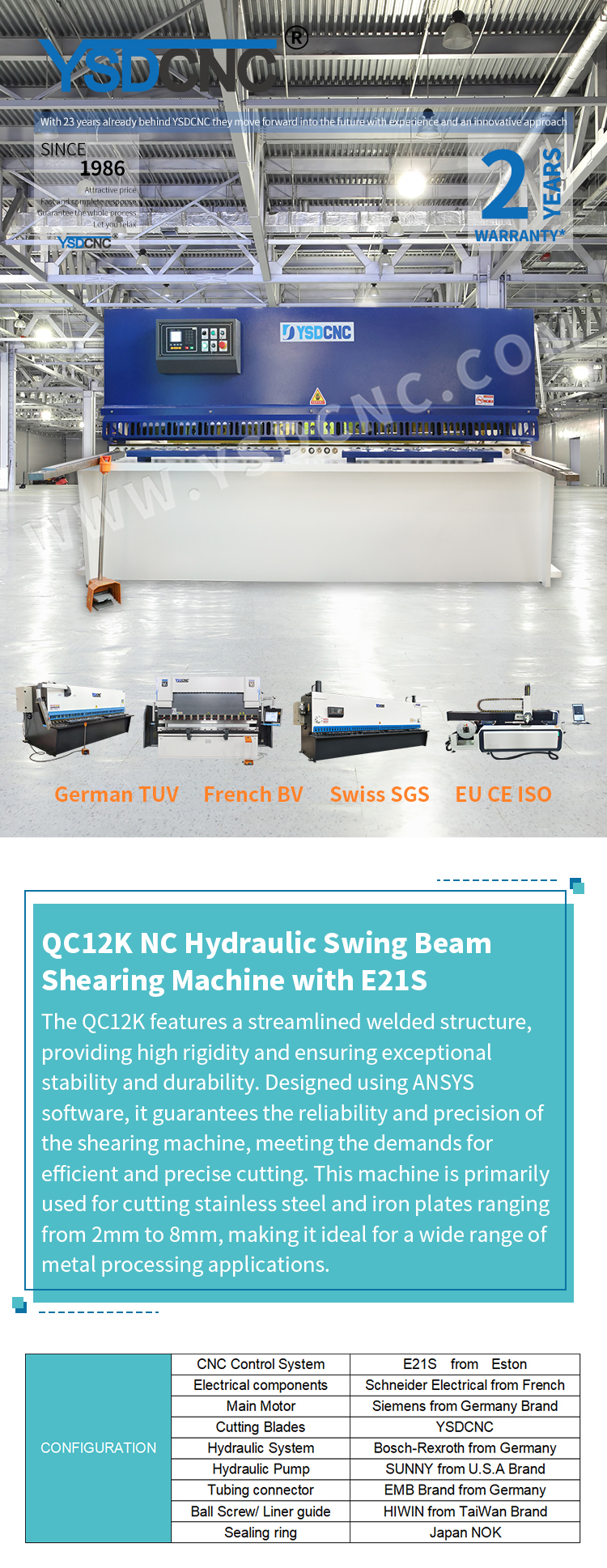

QC12K NC Hydraulic Swing Beam Shearing Machine with E21S
The QC12K features a streamlined welded structure, providing high rigidity and ensuring exceptional stability and durability. Designed using ANSYS software, it guarantees the reliability and precision of the shearing machine, meeting the demands for efficient and precise cutting. This machine is primarily used for cutting stainless steel and iron plates ranging from 2mm to 8mm, making it ideal for a wide range of metal processing applications.

Product Description

QC12K 6x2500 NC Hydraulic Swing Beam Shearing Machine with E21S (4)

Specification

Type	Max thickness(mm)		Cutting Length (mm)	Throat Depth (mm)	Blade Length (mm)	Blade Length (mm)	Shearing Speed (Cuts/min)	Back Gauge Specification		Front Holder Quantity		Motor Power (kw)	Oli Tank Capacity (L)	Weight (kg)	Lwh (mm)
Type	＜450N/mm²	＜700N/mm²	Cutting Length (mm)	Throat Depth (mm)	Blade Length (mm)	Blade Length (mm)	Shearing Speed (Cuts/min)	Travel (mm)	Speed (mm/sec)	Number (Pcs)	Length (mm)	Motor Power (kw)	Oli Tank Capacity (L)	Weight (kg)	Lwh (mm)
4×2500	4	2.5	2500	100	1°30’	2600	10~12	600	180	3	800	5.5	220	3600	304016101620
4×3200	4	2.5	3200	100	1°30’	3300	10~12	600	180	3	800	5.5	290	5000	384016101620
4×4000	4	2.5	4000	100	1°30’	4100	8~10	600	180	4	800	5.5	290	6500	646021003200
4×6000	4	2.5	6000	100	1°30’	6100	5~7	600	180	6	800	11	380	11000	646021003200
6×2500	6	4	2500	145	1°30’	2600	10~12	600	180	3	800	7.5	220	5000	304016101620
6×3200	6	4	3200	145	1°30’	3300	9~11	600	180	3	800	7.5	290	6000	384016101620
6×4000	6	4	4000	145	1°30’	4100	8~10	600	180	4	800	7.5	290	8000	462017501700
6×5000	6	4	5000	145	1°30’	5100	6~8	600	180	5	800	7.5	380	10500	540017501700
6×6000	6	4	6000	145	1°30’	6100	5~7	600	180	6	800	11	380	16500	648021002300
8×2500	8	5	2500	300	1°30’	2600	10~12	600	180	3	800	7.5	220	6000	304017001700
8×3200	8	5	3200	300	1°30’	3300	8~10	600	180	3	800	7.5	290	7200	386017001700
8×4000	8	5	4000	300	1°30’	4100	8~10	600	180	4	800	7.5	290	8800	464017001700
8×5000	8	5	5000	300	1°30’	5100	8~10	600	180	5	800	7.5	380	11500	540024002000
8×6000	8	5	6000	300	1°30’	6100	8~10	600	180	6	800	11	380	18000	648021002350
10×2500	10	6.5	2500	300	1°30’	2600	9~11	600	180	3	800	11	320	7300	304017001700
10×3200	10	6.5	3200	300	1°30’	3300	9~11	600	180	3	800	11	420	8000	386017001700
10×4000	10	6.5	4000	300	1°30’	4100	8~10	600	180	4	800	11	420	12000	465021002000
10×6000	10	6.5	6000	300	2°	6100	5~7	600	180	6	800	15	520	24000	650021002300
12×2500	12	8	2500	300	2°	2600	9~11	600	180	3	800	18.5	360	9000	314021502000
12×3200	12	8	3200	300	2°	3300	9~11	600	180	3	800	18.5	500	10800	388021502000
12×4000	12	8	4000	300	2°	4100	8~10	600	180	4	800	18.5	500	13000	468021502000
12×5000	12	8	5000	300	2°	5100	6~8	600	180	5	800	18.5	520	16000	590021502000
12×6000	12	8	6000	300	2°	6100	5~7	600	180	6	800	18.5	600	29000	690026002700
12×8000	12	8	8000	300	2°	8100	5~7	600	180	8	800	18.5	620	46500	900035003500
16×2500	16	10.5	2500	320	3°30’	2600	9~11	600	180	3	800	18.5	360	11000	314021502000
16×3200	16	10.5	3200	320	3°30’	3300	8~10	600	180	3	800	18.5	500	13000	388021502000
16×4000	16	10.5	4000	320	3°30’	4100	8~10	600	180	4	800	18.5	500	16300	465021502200
16×5000	16	10.5	5000	320	3°30’	5100	6~8	800	180	5	800	18.5	520	20000	590026002700
16×6000	16	10.5	6000	320	3°30’	6100	5~7	800	180	6	800	22	550	36000	690027002700
20×2500	20	13	2500	320	3°	2600	8~10	800	180	3	800	22	540	15500	344023002500
20×3200	20	13	3200	320	3°	3300	8~10	800	180	3	800	22	800	18000	415023502700
20×4000	20	13	4000	320	3°	4100	5~7	1000	180	4	800	22	800	21000	485023502700
25×2500	25	16.5	2500	320	3°	2600	8~10	1000	180	3	800	37	800	19000	320027002900
25×3200	25	16.5	3200	320	3°	3300	5~7	1000	180	3	800	37	800	23000	420027002900
25×4000	25	16.5	4000	320	3°	4100	5~7	1000	180	4	800	37	800	27000	385027002900
30×2500	30	20	2500	320	3°	2600	5~7	1000	180	3	800	37	800	23500	330029002900
30×3200	30	20	3200	320	3°	3300	5~7	1000	180	3	800	37	800	27500	420029002900
