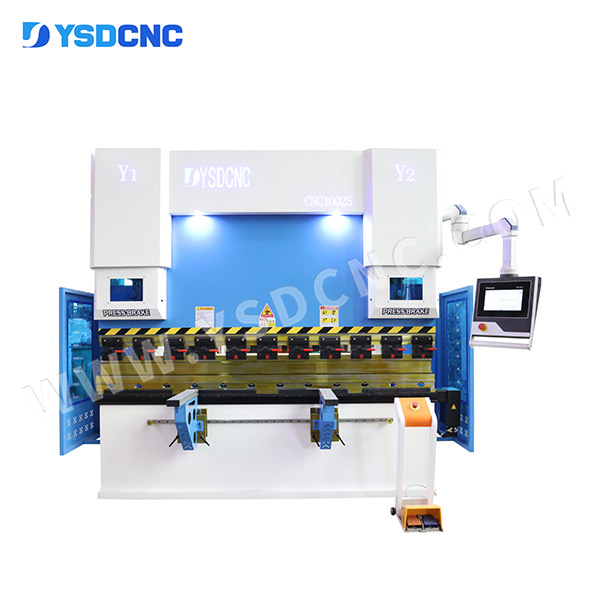

DA53 100ton 2500
YSDCNC
Features
YSDCNC the new compact DA-53T adds a state-of-the-art complete touch control solution for synchronized
press brakes. Offering easiest CNC programming based on the Delem graphical touch screen user interface.
This panel based control, standard capable of controlling up to 4 axes, can be integrated in cabinets
as well as used in an optional pendulant arm housing. Its 10.1" wide screen high resolution colour TFT, with
industrial grade multi touch technology, gives access to the proven Delem user-interface. It enables direct
“hot-key” touch navigation between product programming and actual production. Functions are located where needed, offering optimised ergonomics throughout the entire application.
Product Description
Specification
ITEM | VALUE |
Model | WE67K 100ton2500 |
Pressure | 100ton |
Max bending length | 2500mm |
Max bending thickness for 3.2m sheet | 3mm |
Column distance | 2020mm |
Slide stroke | 120mm |
Max opening height | 320mm |
Throat depth | 320mm |
Main motor power | 7.5kw |
Machine size | 2500x1600x2400mm(L×W×H) |
Weight | 6000kg |
Axes | Y, X |
