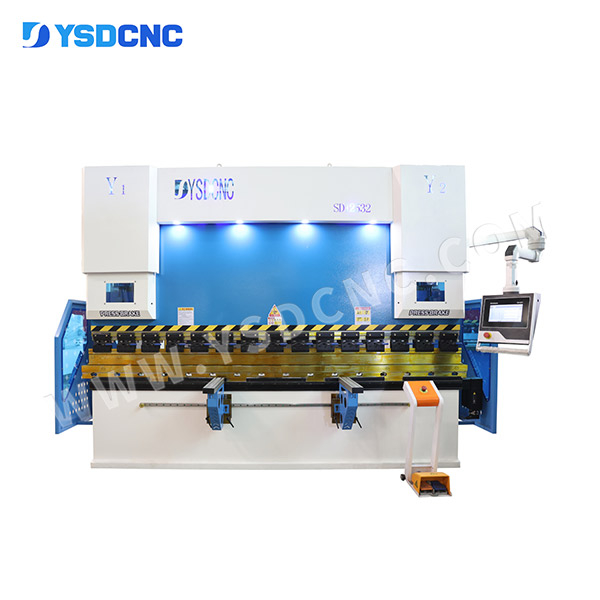

WE67k 125ton3200 CNC Electro-hydraulic Press Brake Machine with DA-53T

5 0 Reviews

Availability:

Quantity:



Inquire Add to Basket

Model:
DA53 125ton 3200
Brand:
YSDCNC

Features

YSDCNC the new compact DA-53T adds a state-of-the-art complete touch control solution for synchronized

press brakes. Offering easiest CNC programming based on the Delem graphical touch screen user interface.

This panel based control, standard capable of controlling up to 4 axes, can be integrated in cabinets

as well as used in an optional pendulant arm housing. Its 10.1" wide screen high resolution colour TFT, with

industrial grade multi touch technology, gives access to the proven Delem user-interface. It enables direct

“hot-key” touch navigation between product programming and actual production. Functions are located where needed, offering optimised ergonomics throughout the entire application.

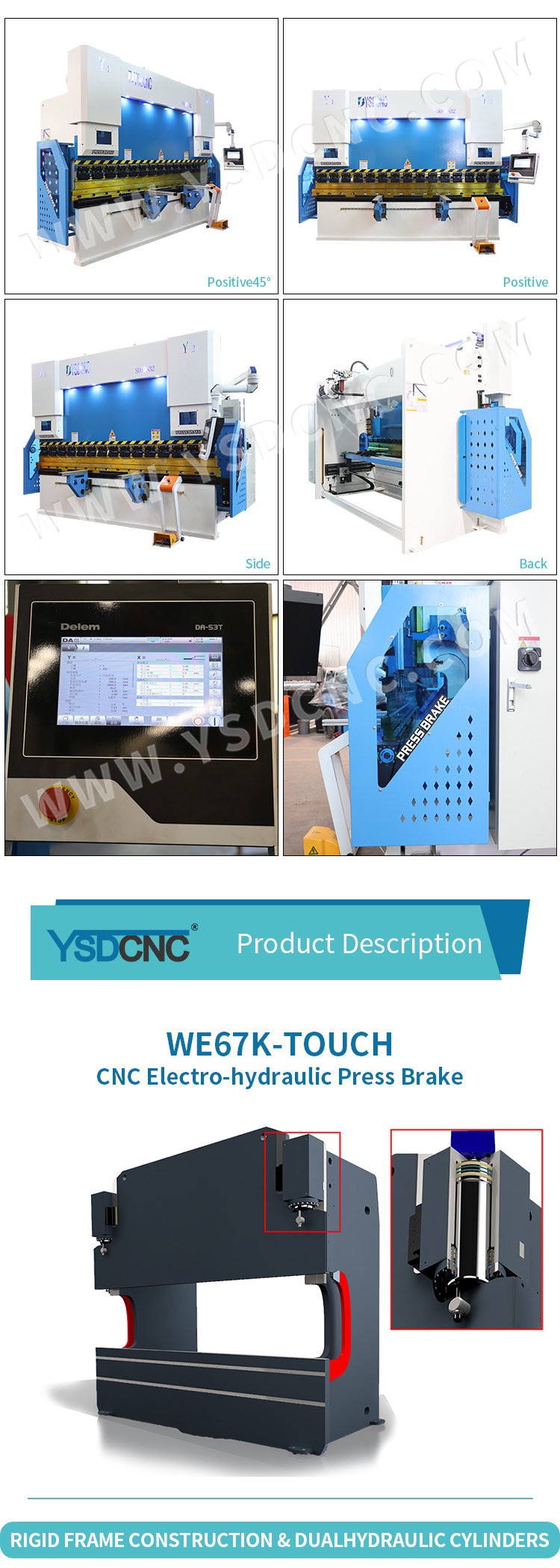

Product Description

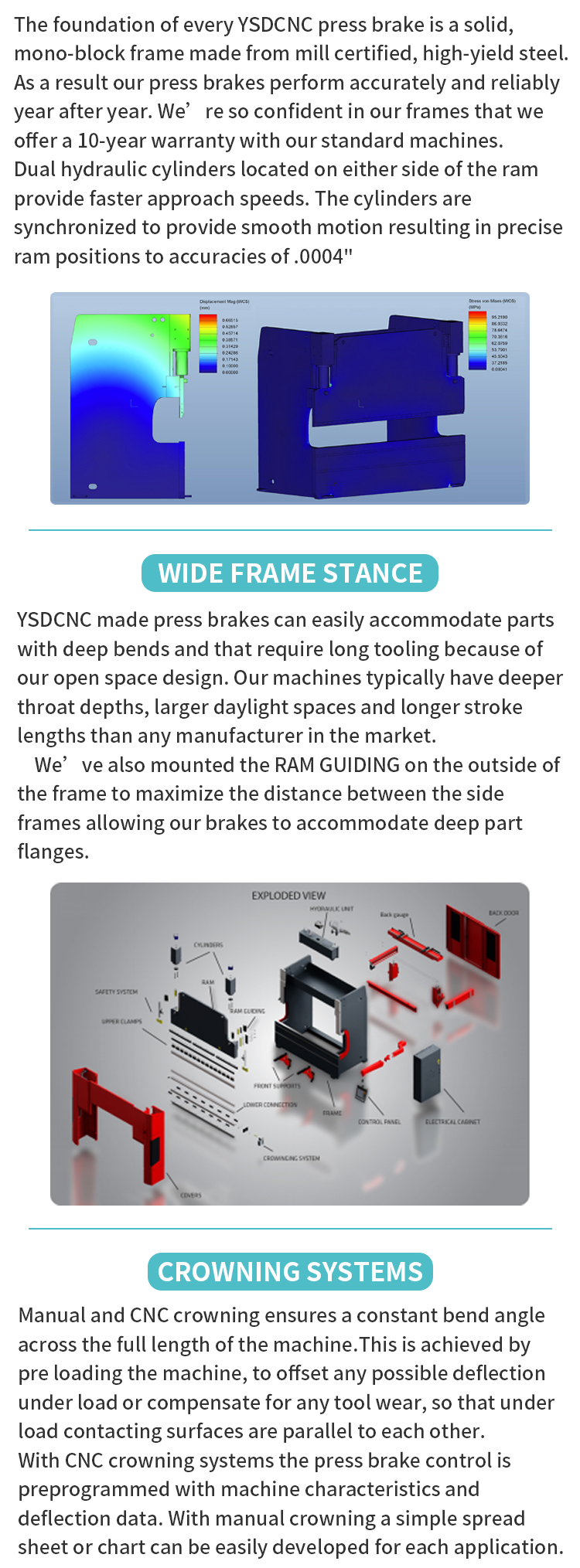

WE67k 125ton3200 CNC Electro-hydraulic Press Brake Machine with DA-53T (4)

Specification

Model		63T/1500	63T/2500	110T/3200	100T/4000	125T/3200	125T/4000	160T/3200	160T/4000	250T/3200	250T/4000
Bending Length	mm	1500	2500	3200	4200	3200	4000	3200	4000	3200	4000
Bending Capacity	KN	630	630	1100	1100	1250	1250	1600	1600	2500	2500
Column Distance	mm	1100	2060	2700	3300	2700	3300	2700	3300	2700	3300
Gap	mm	370	370	400	400	400	400	400	400	400	400
Daylight Opening	mm	350	350	400	400	400	400	400	400	400	400
Stroke	mm	200	200	200	200	200	200	200	200	200	200
Table Height	mm	880	880	880	880	880	880	880	880	880	880
Table Width	mm	150	150	200	200	200	200	200	200	200	200
Fast Approach Speed	mm/s	200	200	200	200	200	200	200	200	200	200
Max. Bending Speed	mm/s	10	10	10	10	10	10	10	10	10	10
Return Speed	mm/s	160	160	160	160	160	160	140	140	140	140
Motor Power	KW	5.5	5.5	7.5	7.5	11	11	11	11	15	15
Length	mm	1825	2825	3500	4500	3500	4500	3500	4500	3500	4500
Width	mm	1650	1650	1650	1650	1650	1650	1650	1650	1730	1730
Height	mm	2600	2430	2540	2540	2540	2540	2580	2580	2580	2580
Weight	kg	4600	5600	8000	950	8500	90000	10000	12000	15000	17000

Model		300T/3200	300T/4000	300T/5000	400T/4000	400T/5000	400T/6000	500T/4000	500T/5000	500T/6000	600T/6000
Bending Length	mm	3200	4000	5000	4000	5000	6000	4000	5000	6000	6000
Bending Capacity	KN	3000	3000	3000	4000	4000	4000	5000	5000	5000	6000
Column Distance	mm	2600	3150	4050	3150	4050	5050	3050	4050	5050	5050
Gap	mm	400	400	400	400	400	400	400	400	400	400
Daylight Opening	mm	400	400	400	400	400	400	610	610	610	650
Stroke	mm	200	200	200	320	320	320	320	320	320	320
Table Height	mm	880	880	880	880	880	880	990	990	990	990
Table Width	mm	250	250	250	250	250	250	300	300	300	300
Fast Approach Speed	mm/s	80	80	80	80	80	80	75	75	75	80
Max. Bending Speed	mm/s	8	8	8	8	8	8	8	8	8	8
Return Speed	mm/s	85	85	85	80	80	80	75	75	75	80
Motor Power	KW	18.5	18.5	18.5	30	30	30	37	37	37	40
Length	mm	3300	4300	5300	4300	5300	6400	4500	5500	6500	6500
Width	mm	1950	1950	1950	2100	2100	2100	2700	2700	2700	2700
Height	mm	2670	2670	2620	3100	3100	3170	5000	5000	5000	5000
Weight	kg	20000	22000	26000	27000	32000	38000	40000	45000	55000	65000
