Guillotine Shearing Machine 12*3200
YSDCNC
Features
QC11K Hydraulic Guillotine Shearing Machine with E21S
Featuring a streamlined welded frame, this machine offers exceptional rigidity and durability. Designed using advanced ANSYS software, it ensures outstanding reliability and precision. The vertical shearing design makes it ideal for cutting steel plates over 8mm thick, providing an efficient and precise solution for demanding cutting tasks.

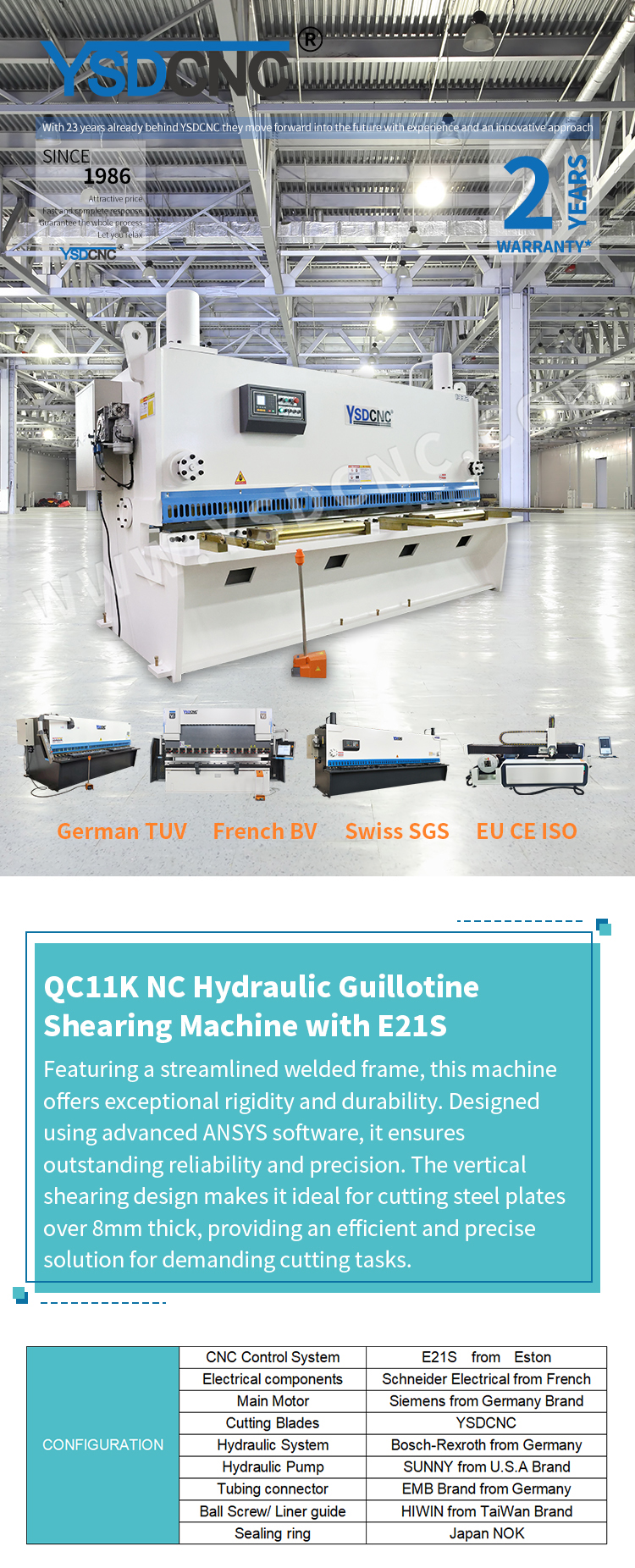

QC11K Hydraulic Guillotine Shearing Machine with E21S
The QC11K features an all-steel welded structure with comprehensive treatment (vibration aging and heat treatment) to eliminate internal stress, ensuring exceptional rigidity and stability. The E21S system controller allows for programming of the X-axis (Backgauge) and cutting time, with the ability to store up to 40 programs. The advanced integrated hydraulic system offers high reliability, while the three-point support rolling guide eliminates gaps, enhancing shearing quality. Blade gap adjustment is quick and accurate, done manually or electrically for convenience. The rectangular blades, with all four edges, ensure long service life. The upper blade holder's inward tilting structure facilitates smooth material drop and improves workpiece accuracy. Additionally, the segmented shearing function provides precise alignment for efficient cutting.
Product Description
Specification
Model | Shearing Thickness (mm) | Shearing Width (mm) | Stroke Times (cuts/min) | Back-gauge Rang (mm) | Shearing Angler（°） | Main Power (KW) | Overall Dimensions （L×W×H）(mm) |
4×2500 | 4 | 2500 | 16~35 | 20~600 | 30’~1°30’ | 5.5 | 3200×1400×2000 |
6×2500 | 6 | 2500 | 16~35 | 20~600 | 30’~1°30’ | 7.5 | 3200×1500×2100 |
6×3200 | 6 | 3200 | 14~35 | 20~600 | 30’~1°30’ | 7.5 | 3900×1580×2150 |
6×4000 | 6 | 4000 | 10~30 | 20~600 | 30’~1°30’ | 7.5 | 4700×1650×2250 |
6×5000 | 6 | 5000 | 10~30 | 20~800 | 30’~1°30’ | 11 | 5700×1800×2380 |
6×6000 | 6 | 6000 | 8~25 | 20~800 | 30’~1°30’ | 11 | 6700×2000×2650 |
8×2500 | 8 | 2500 | 14~30 | 20~600 | 30’~2° | 11 | 3200×1550×2150 |
8×3200 | 8 | 3200 | 12~30 | 20~600 | 30’~2 | 11 | 3950×1750×2350 |
8×4000 | 8 | 4000 | 10~25 | 20~600 | 30’~2° | 11 | 4700×1800×2480 |
8×5000 | 8 | 5000 | 10~25 | 20~800 | 30’~2° | 15 | 5700×1950×2600 |
8×6000 | 8 | 6000 | 8~20 | 20~800 | 30’~2° | 15 | 6700×1980×2650 |
12×2500 | 12 | 2500 | 12~25 | 20~800 | 30’~2° | 15 | 3250×1680×2250 |
12×3200 | 12 | 3200 | 12~25 | 20~800 | 30’~2° | 15 | 3980×1800×2550 |
12×4000 | 12 | 4000 | 8~20 | 20~800 | 30’~2° | 15 | 4800×1950×2650 |
12×5000 | 12 | 5000 | 8~20 | 20~1000 | 30’~2° | 22 | 5800×2150×2700 |
12×6000 | 12 | 6000 | 6~20 | 20~1000 | 30’~2° | 30 | 6800×2450×2900 |
16×2500 | 16 | 2500 | 12~20 | 20~800 | 30’~1°30’ | 22 | 3280×1830×2520 |
16×3200 | 16 | 3200 | 12~20 | 20~800 | 30’~1°30’ | 22 | 3950×1950×2650 |
16×4000 | 16 | 4000 | 8~15 | 20~800 | 30’~1°30’ | 22 | 4800×1970×2700 |
16×5000 | 16 | 5000 | 8~15 | 20~1000 | 30’~1°30’ | 30 | 5800×2250×2870 |
16×6000 | 16 | 6000 | 6~15 | 20~1000 | 30’~1°30’ | 37 | 6800×2450×3150 |
20×2500 | 20 | 2500 | 10~20 | 20~800 | 30°~3° | 30 | 3400×2260×2520 |
20×3200 | 20 | 3200 | 10~20 | 20~800 | 30’~3° | 30 | 4100×2300×2700 |
20×4000 | 20 | 4000 | 8~15 | 20~800 | 30’~3° | 30 | 4900×2500×2880 |
20×5000 | 20 | 5000 | 8~15 | 20~1000 | 30’~3° | 37 | 5900×2750×2980 |
20×6000 | 20 | 6000 | 6~15 | 20~1000 | 30’~3° | 37 | 6900×2850×3200 |
25×2500 | 25 | 2500 | 8~15 | 20~800 | 30’~3° | 37 | 3420×2400×2650 |
25×3200 | 25 | 3200 | 8~15 | 20~800 | 30’~1°30’ | 37 | 4150×2500×2750 |
25×4000 | 25 | 4000 | 6~12 | 20~1000 | 30’~1°30’ | 37 | 4900×2600×2950 |
30×2500 | 30 | 2500 | 8~12 | 20~1000 | 30’~1°30’ | 55 | 3450×2600×2750 |
30×3200 | 30 | 3200 | 8~12 | 20~1000 | 30’~4° | 55 | 4150×2700×2850 |
30×4000 | 30 | 4000 | 8~12 | 20~1000 | 30’~4° | 55 | 4900×2900×3100 |
40×2500 | 40 | 2500 | 4~10 | 20~1000 | 30’~4° | 55 | 4000×2950×3150 |
40×3200 | 40 | 3200 | 4~10 | 20~1000 | 30’~4° | 55 | 4900×3050×3680 |
