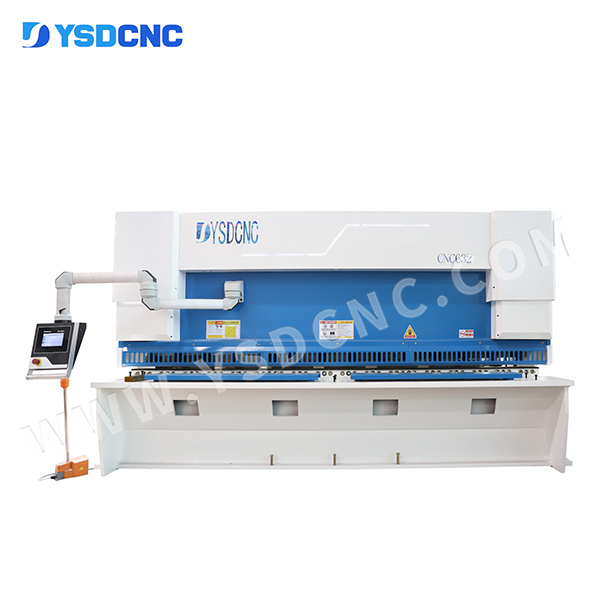

QC11K 6×3200 Hydraulic Guillotine Shearing Machine with 360T

5 0 Reviews

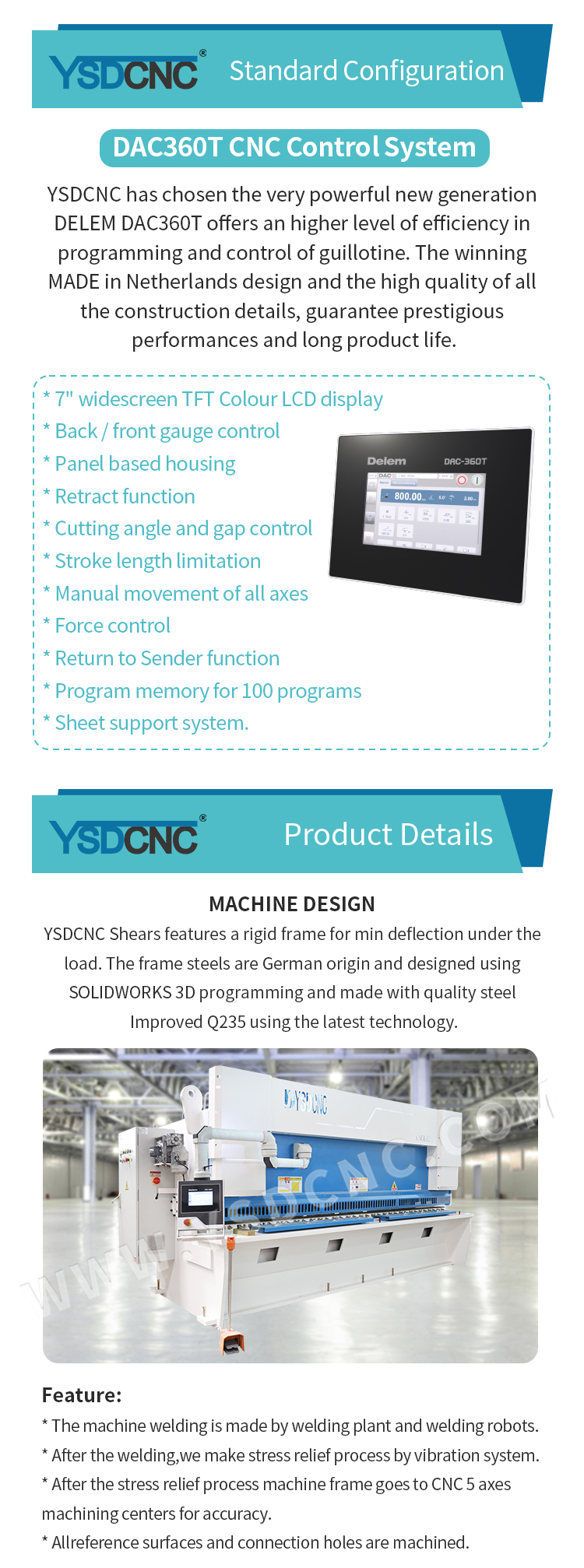

* The machine welding is made by welding plant and welding robots.
* After the welding,we make stress relief process by vibration system.
* After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy.
* Allreference surfaces and connection holes are machined.

Availability:

Quantity:



Inquire Add to Basket

Model:
Guillotine Shearing Machine 6*3200
Brand:
YSDCNC

Features

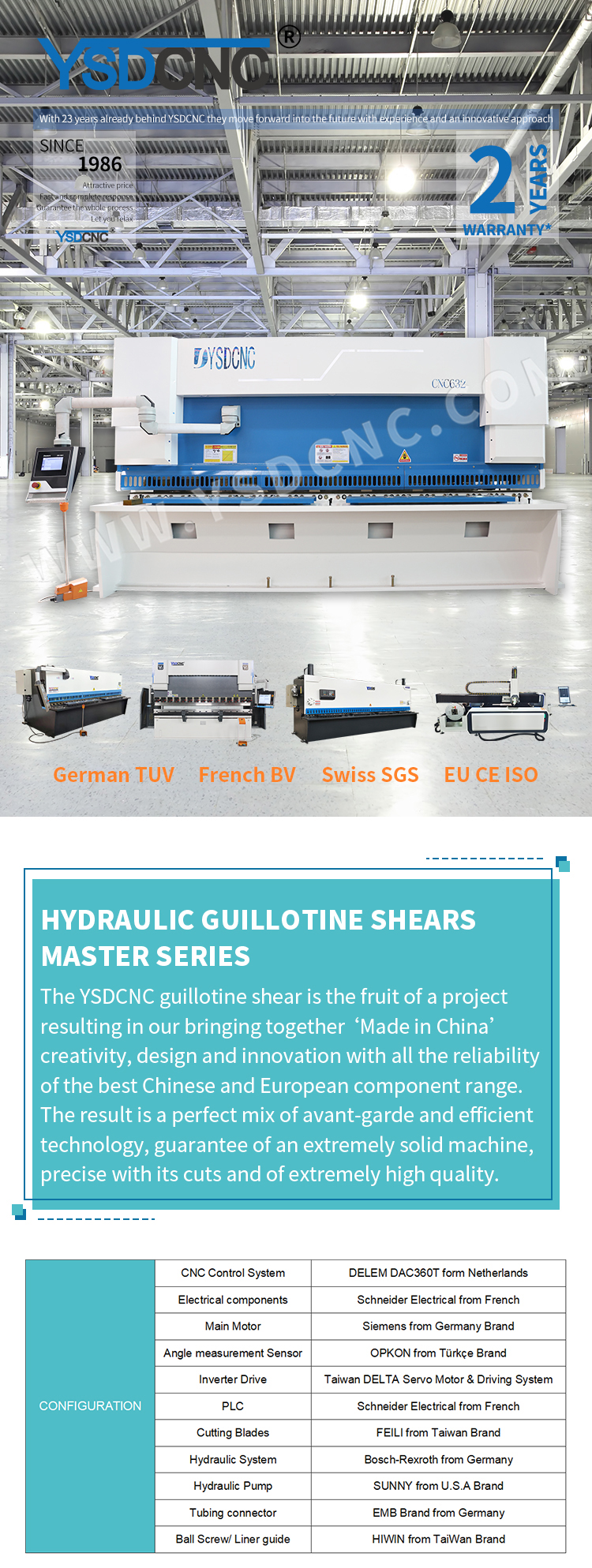

HYDRAULIC GUILLOTINE SHEARS MASTER SERIES

The YSDCNC guillotine shear is the fruit of a project resulting in our bringing together ‘Made in China’ creativity, design and innovation with all the reliability of the best Chinese and European component range.The result is a perfect mix of avant-garde and efficient technology, guarantee of an extremely solid machine, precise with its cuts and of extremely high quality.

Product Description

QC11K 6×3200 Hydraulic Guillotine Shearing Machine with 360T (4)

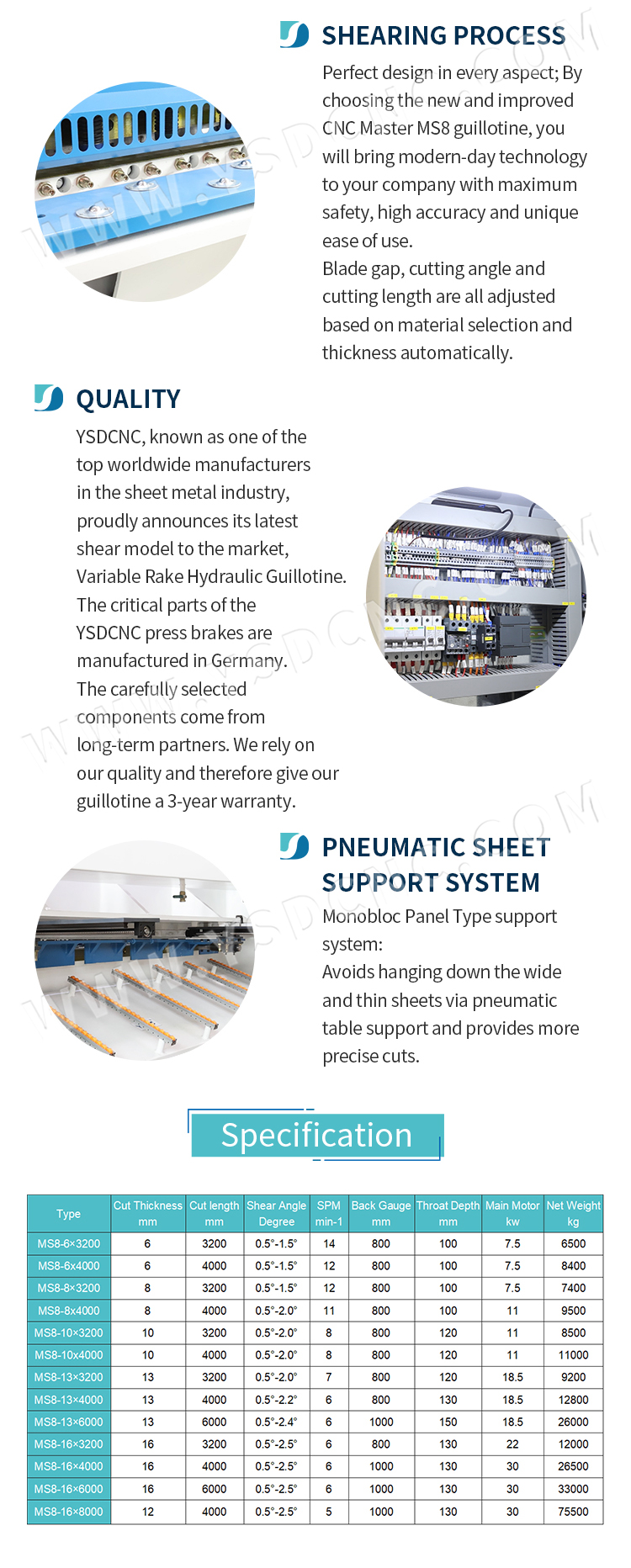

Specification

Type	Cut Thickness mm	Cut length mm	Shear Angle Degree	SPM min-1	Back Gauge mm	Throat Depth mm	Main Motor kw	Net Weight kg
MS8-6×3200	6	3200	0.5°-1.5°	14	800	100	7.5	6500
MS8-6x4000	6	4000	0.5°-1.5°	12	800	100	7.5	8400
MS8-8×3200	8	3200	0.5°-1.5°	12	800	100	7.5	7400
MS8-8x4000	8	4000	0.5°-2.0°	11	800	100	11	9500
MS8-10×3200	10	3200	0.5°-2.0°	8	800	120	11	8500
MS8-10x4000	10	4000	0.5°-2.0°	8	800	120	11	11000
MS8-13×3200	13	3200	0.5°-2.0°	7	800	120	18.5	9200
MS8-13×4000	13	4000	0.5°-2.2°	6	800	130	18.5	12800
MS8-13×6000	13	6000	0.5°-2.4°	6	1000	150	18.5	26000
MS8-16×3200	16	3200	0.5°-2.5°	6	800	130	22	12000
MS8-16×4000	16	4000	0.5°-2.5°	6	1000	130	30	26500
MS8-16×6000	16	6000	0.5°-2.5°	6	1000	130	30	33000
MS8-16×8000	12	4000	0.5°-2.5°	5	1000	130	30	75500
