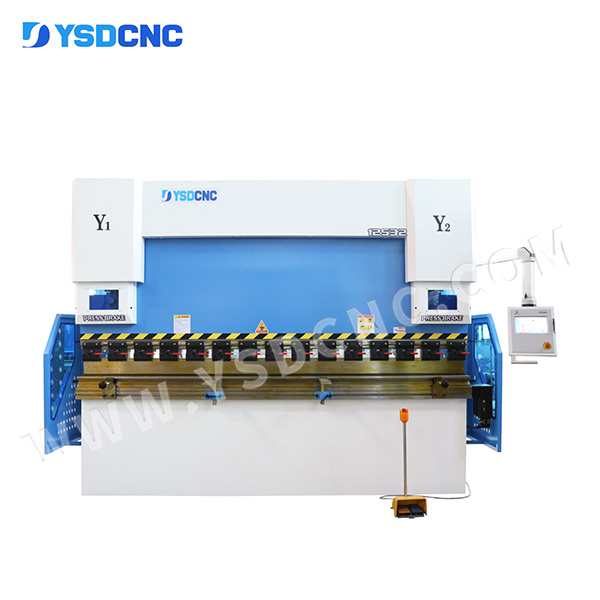

WC67K 125TON3200 Servo Hydraulic CNC Press Brake with TP10, Sheet Bending Machine for Sale

5 0 Reviews

1. Whole welded machine structure
2. TP10 for X axis and Y axis control
3. Single/ Cylinder bending program
4. Work-piece counting function
5. Bending retraction function
6. Backgauge with ball screw and Manual R axis

Availability:

Quantity:



Inquire Add to Basket

Model:
TP10 125ton 3200
Brand:
YSDCNC

Features

TP10 CNC system

TP10 CNC 10-inch TFT high-definition and high-contrast touch screen. The page is concise and the button operation is easier. Menu programming style, interface drawing, friendly. Language can be selected: Chinese, English. Support automatic calculation of bending angle and length. Support angle compensation and height compensation. Support picking function and mold management. The original multi-step bending sequence and products can be used. Strong reliability and strong anti-interference ability. Manual shifting and X/Y axis navigation and teaching functions.

Supports valve configuration and software limit functions.

Product Description

WC67K 125TON3200 Servo Hydraulic Press Brake with TP10, Sheet Bending Machine for Sale (4)

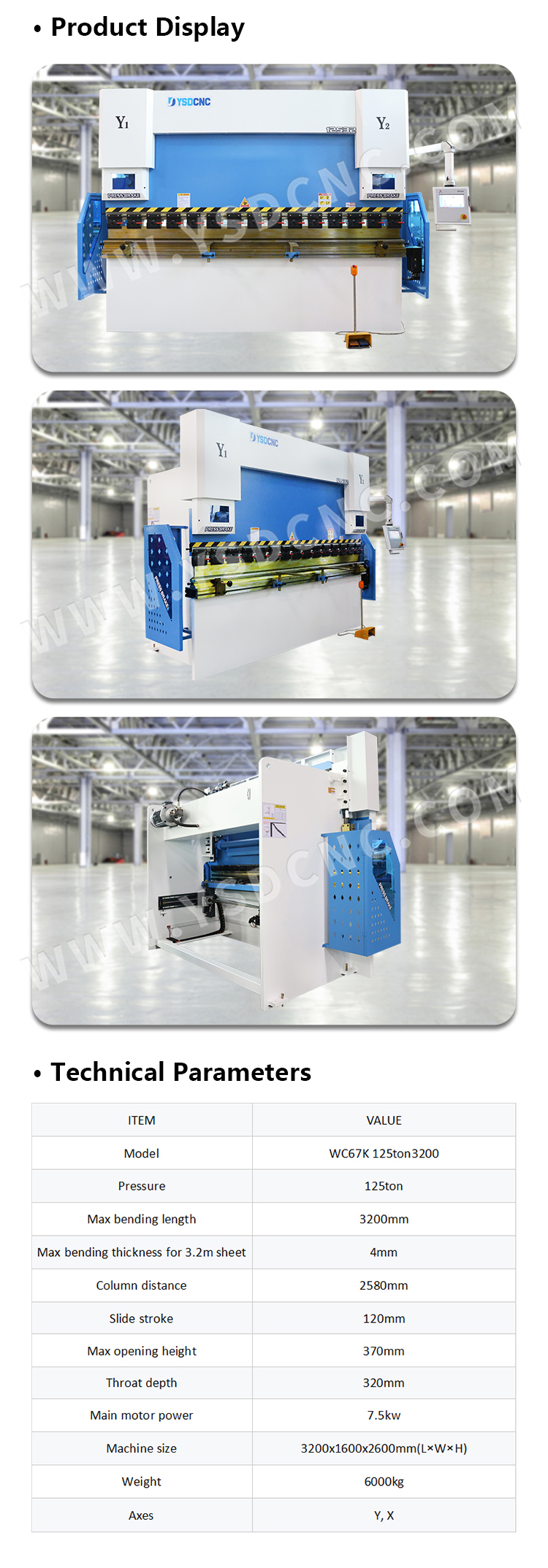

Specification

ITEM	VALUE
Model	WC67K 125ton3200
Pressure	125ton
Max bending length	3200mm
Max bending thickness for 3.2m sheet	4mm
Column distance	2580mm
Slide stroke	120mm
Max opening height	370mm
Throat depth	320mm
Main motor power	7.5kw
Machine size	3200x1600x2600mm(L×W×H)
Weight	6000kg
Axes	Y, X
