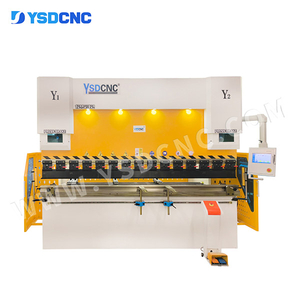

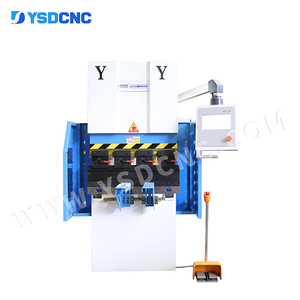

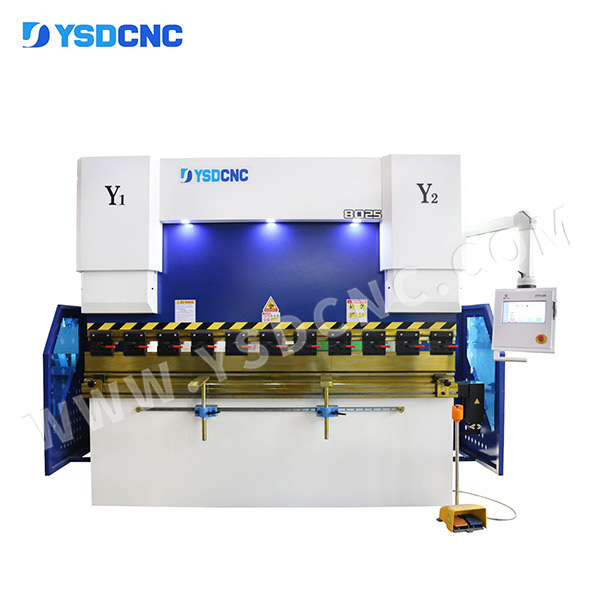

WC67K 80TON2500 Servo Hydraulic CNC Press Brake with TP10, Sheet Bending Machine for Sale

5 0 Reviews

1. Whole welded machine structure
2. TP10 for X axis and Y axis control
3. Single/ Cylinder bending program
4. Work-piece counting function
5. Bending retraction function
6. Backgauge with ball screw and Manual R axis

Availability:

Quantity:



Inquire Add to Basket

Model:
TP10 80ton 2500
Brand:
YSDCNC

Features

TP10 CNC system

TP10 CNC 10-inch TFT high-definition and high-contrast touch screen. The page is concise and the button operation is easier. Menu programming style, interface drawing, friendly. Language can be selected: Chinese, English. Support automatic calculation of bending angle and length. Support angle compensation and height compensation. Support picking function and mold management. The original multi-step bending sequence and products can be used. Strong reliability and strong anti-interference ability. Manual shifting and X/Y axis navigation and teaching functions.

Supports valve configuration and software limit functions.

Product Description

WC67K 80TON2500 Servo Hydraulic Press Brake with TP10, Sheet Bending Machine for Sale (4)

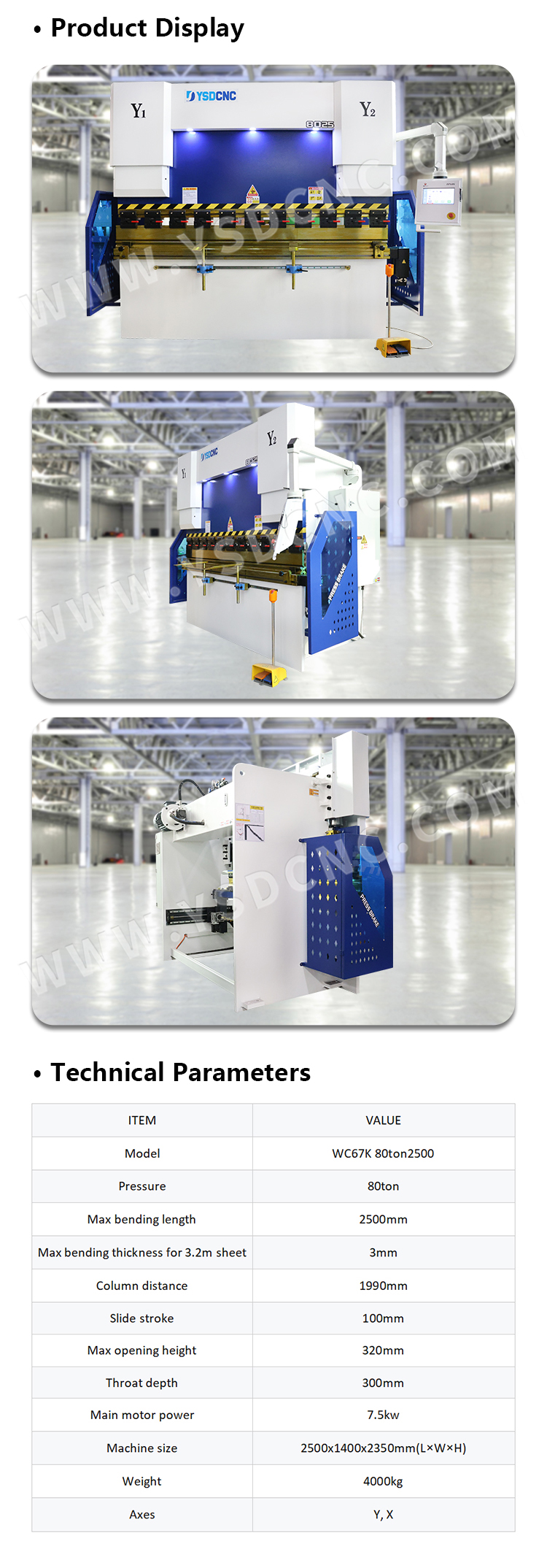

Specification

ITEM	VALUE
Model	WC67K 80ton2500
Pressure	80ton
Max bending length	2500mm
Max bending thickness for 3.2m sheet	3mm
Column distance	1990mm
Slide stroke	100mm
Max opening height	320mm
Throat depth	300mm
Main motor power	7.5kw
Machine size	2500x1400x2350mm(L×W×H)
Weight	4000kg
Axes	Y, X
